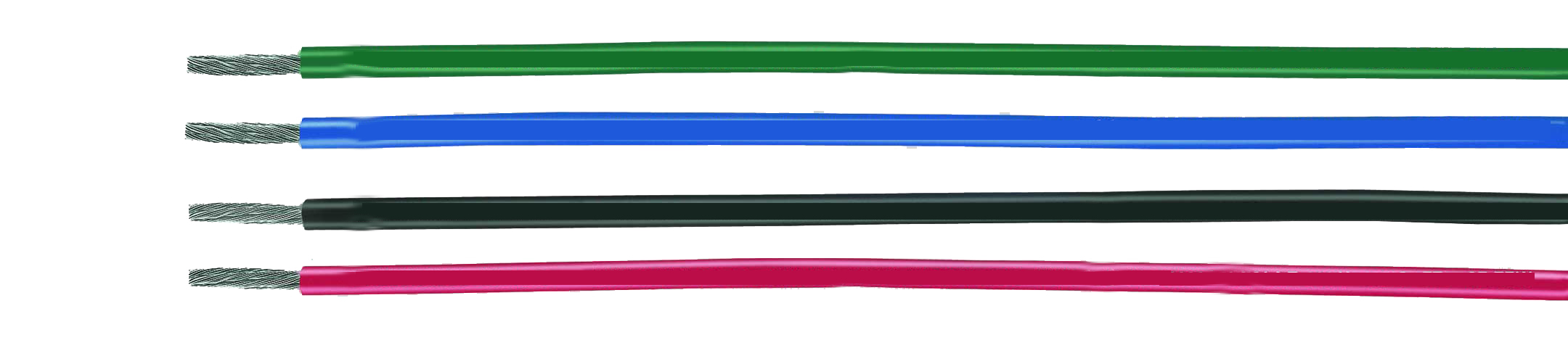

European Internationally Approved Cable (Hook-Up Wire): UL-Style 1015

PVC Single Conductors, 600 V

Hi-Tech Controls, Inc, European & Domestic cable

UL-Style 1015 PVC single conductors, 600V, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part-No. Description & cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
601__ UL-Style 1015, 0.21 2.2 2.3 8.0 24
602__ UL-Style 1015, 0.33 2.4 3.2 10.0 22
603__ UL-Style 1015, 0.52 2.5 5.0 12.0 20
604__ UL-Style 1015, 0.81 2.8 7.9 16.0 18
605__ UL-Style 1015, 1.31 3.1 12.6 22.0 16
606__ UL-Style 1015, 2.08 3.5 20.7 31.0 14
607__ UL-Style 1015, 3.32 4.0 33.0 45.0 12
608__ UL-Style 1015, 5.26 4.6 51.6 65.0 10
609__ UL-Style 1015, 8.35 6.5 80.6 110.0 8
610__ UL-Style 1015, 13.29 8.0 125.0 175.0 6
611__ UL-Style 1015, 21.14 9.5 201.0 260.0 4
612__ UL-Style 1015, 26.65 10.4 253.0 340.0 3
613__ UL-Style 1015, 33.61 11.3 317.0 380.0 2
614__ UL-Style 1015, 42.38 13.3 399.0 500.0 1
615__ UL-Style 1015, 53.47 13.6 500.0 615.0 1/0
616__ UL-Style 1015, 67.4 15.5 631.0 750.0 2/0
617__ UL-Style 1015, 84.97 17.5 792.0 900.0 3/0
618__ UL-Style 1015, 107.17 19.0 996.0 1070.0 4/0
62501 UL-Style 1015, 127.0 21.2 1178.0 1280.0 250 kcmil
62601 UL-Style 1015, 152.0 22.4 1410.0 1518.0 300 kcmil
62701 UL-Style 1015, 178.0 25.3 1645.0 1756.0 350 kcmil
62801 UL-Style 1015, 203.0 26.0 1902.0 2002.0 400 kcmil
62901 UL-Style 1015, 254.0 28.0 2345.0 2475.0 500 kcmil

Color Code
  • 00 = green
  • 01 = black
  • 02 = blue
  • 03 = brown
  • 04 = red
  • 05 = white
  • 06 = gray
  • 07 = violet
  • 08 = yellow
  • 09 = orange
  • 10 = transparent
  • 11 = pink
  • 12 = beige
  • 13 = green-yellow
  • 14 = blue/white
  • 15 = dark blue
  • 27 = white/blue (supply up to AWG 8)
Please complete the above part number for the color required using the color code
Technical Data European
  • PVC insulated jumper wire to UL AWM Style 1015/MTW and CSA-AWM /TEW as per UL Style 1015 and CSA-TEW
  • Temperature Range
    Flexible
    -5°C to + 105°C (+23°F to +221°F)
    Fixed Installation
    -30°C to + 105°C (-22°F to +221°F)
  • Temperature at Conductor
    Max. UL and CSA: + 105°C/+221°F
  • Nominal Voltage 600 V
  • Test Voltage (Spark Test)
    AWG 24 = 4 kV
    AWG 22 and 20 = 5 kV
    AWG 18 to 10 = 6 kV
    = AWG 8 = 7.5 kV
  • UL-Type AWM + MTW
    +105°C/+221°F 600 V
  • CSA-Type AWM + TEW
    105°C/+221°F 600 V
  • Bending Radius
    Once approx. 5x cable Ø
    Multiple approx. 10x cable Ø
Approvals
RoHSUL CSA UR
Cable Construction
  • Stranded copper conductor, tinned or plain
  • PVC conductor insulation according to UL-Std. 1581 class 43 and CSA-C22.2 No. 210 UL VW-1 and CSA FT1, heat and damp resistant
Application

For the internal wiring of switchboards, electrical equipment, e.g. households, radio or televisions and control desks. Connecting wires in machines laid in protective tubes and flexible pipes and also for motors and transformers. Hook-up wire (hookup wire) is a single conductive wire.
AWM = Appliance Wiring Material
For internal wiring for electrical equipment and control apparatus e.g. electronic assembly components.
UL-MTW: Machine Tool Wires, CSA-TEW: Equipment/Lead Wires
MTW = Machine Tool Wire
For the electronically installation of machine tools and the relative control
UL = Underwriters Laboratories Inc. (USA)
CSA = Canadian Standards Association (Canada)
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Conditionally resistant to Oils, Solvents, Acids, Lye
  • PVC self-extinguishing and flame retardant, test method to UL VW-1/CSA FT1
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • Please complete the part number for the color required using the color code (below part number table)
  • AWG sizes are approximate equivalent sizes. The actual cross-section is in mm2.
Cable Accessories
  • Coming Soon!
