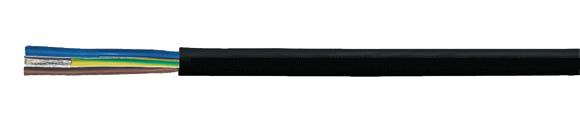

European Heat-Resistant Cable: SiHF UL/CSA

Halogen-Free, +150°C/+302°F, 600 V, Two Approvals Silicone Multi Conductor Cable

Sealcon, Inc, European & Domestic cable

SiHF UL/CSA halogen-free, 150�C/600 V, two approvals silicone multi conductor cable, RoHS Compliant, RoHS Approved, Sealcon, European  , Heat Resistant / Compensating Cables
AWG Selection
20
20
17
17
16
16 14 14
12
12
10 10 8 8 6 6 4 4
2
2

European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper Weight
kg/km
Weight ca. kg/km AWG
23214 SiHF UL/CSA 2X0.5
7.7 9.6 73.0 20
23215 SiHF UL/CSA 3G0.5 8.1 14.4 82.0 20
23216 SiHF UL/CSA 4G0.5 8.8 19.2 98.0 20
23217 SiHF UL/CSA 5G0.5 9.4 24.0 120.0 20
23218 SiHF UL/CSA 6G0.5 10.4 28.8 131.0 20
23219 SiHF UL/CSA 7G0.5 10.4 33.6 140.0 20
23220 SiHF UL/CSA 8G0.5 10.8 38.4 183.0 20
23221 SiHF UL/CSA 10G0.5 12.8 48.0 201.0 20
23222 SiHF UL/CSA 12G0.5 13.4 57.6 241.0 20
23223 SiHF UL/CSA 16G0.5 13.9 76.8 269.0 20
23224 SiHF UL/CSA 18G0.5 14.4 86.4 311.0 20
23225 SiHF UL/CSA 25G0.5 16.8 120.0 401.0 20
23226 SiHF UL/CSA 2X1
8.2 19.2 88.0 17
23227 SiHF UL/CSA 3G1 9.0 28.2 111.0 17
23228 SiHF UL/CSA 4G1 10.0 38.4 130.0 17
23229 SiHF UL/CSA 5G1 10.6 48.0 161.0 17
23230 SiHF UL/CSA 6G1 11.4 57.6 182.0 17
23231 SiHF UL/CSA 7G1 11.4 67.2 198.0 17
23232 SiHF UL/CSA 8G1 12.4 76.8 251.0 17
23233 SiHF UL/CSA 10G1 13.2 96.0 304.0 17
23234 SiHF UL/CSA 12G1 14.4 115.2 343.0 17
23235 SiHF UL/CSA 16G1 15.7 153.6 441.0 17
23236 SiHF UL/CSA 18G1 16.6 172.8 492.0 17
23237 SiHF UL/CSA 25G1 19.1 240.0 617.0 17
23238 SiHF UL/CSA 2X1.5
9.1 28.8 117.0 16
23239 SiHF UL/CSA 3G1.5 9.6 43.2 131.0 16
23240 SiHF UL/CSA 4G1.5 10.6 57.6 166.0 16
23241 SiHF UL/CSA 5G1.5 11.4 72.0 198.0 16
23242 SiHF UL/CSA 6G1.5 12.4 86.4 240.0 16
23243 SiHF UL/CSA 7G1.5 12.4 100.8 261.0 16
23244 SiHF UL/CSA 8G1.5 13.9 115.2 298.0 16
23245 SiHF UL/CSA 10G1.5 16.1 144.0 359.0 16
23246 SiHF UL/CSA 12G1.5 16.6 172.6 431.0 16
23247 SiHF UL/CSA 14G1.5 18.0 201.6 520.0 16
23248 SiHF UL/CSA 16G1.5 20.0 230.4 569.0 16
23249 SiHF UL/CSA 18G1.5 20.9 259.2 652.0 16
23250 SiHF UL/CSA 20G1.5 21.8 288.0 724.0 16
23251 SiHF UL/CSA 25G1.5 24.0 345.6 925.0 16
23252 SiHF UL/CSA 41G1.5 29.2 590.4 1440.0 16
23253 SiHF UL/CSA 2X2.5
9.8 48.0 141.0 14
23254 SiHF UL/CSA 3G2.5 10.4 72.0 174.0 14
23255 SiHF UL/CSA 4G2.5 11.6 96.0 217.0 14
23256 SiHF UL/CSA 5G2.5 12.4 120.0 271.0 14
23257 SiHF UL/CSA 6G2.5 13.6 144.0 314.0 14
23258 SiHF UL/CSA 7G2.5 13.6 168.0 331.0 14
23259 SiHF UL/CSA 8G2.5 14.9 192.0 404.0 14
23260 SiHF UL/CSA 10G2.5 17.2 240.0 495.0 14
23261 SiHF UL/CSA 12G2.5 21.0 288.0 554.0 14
23262 SiHF UL/CSA 16G2.5 22.6 384.0 725.0 14
23263 SiHF UL/CSA 18G2.5 24.0 432.0 838.0 14
23264 SiHF UL/CSA 25G2.5 28.8 600.0 1108.0 14
23265 SiHF UL/CSA 2X4
10.9 76.8 190.0 12
23266 SiHF UL/CSA 3G4 11.8 115.2 241.0 12
23267 SiHF UL/CSA 4G4 12.9 153.6 304.0 12
23268 SiHF UL/CSA 5G4 14.5 192.0 384.0 12
23269 SiHF UL/CSA 7G4 17.8 268.8 527.0 12
23270 SiHF UL/CSA 2X6
14.4 115.2 284.0 10
23271 SiHF UL/CSA 3G6 15.1 172.8 392.0 10
23272 SiHF UL/CSA 4G6 16.4 230.4 492.0 10
23273 SiHF UL/CSA 5G6 18.2 288.0 610.0 10
23274 SiHF UL/CSA 7G6 21.1 403.2 681.0 10
23275 SiHF UL/CSA 2X10
18.0 192.0 405.0 8
23276 SiHF UL/CSA 3G10 18.9 288.0 620.0 8
23277 SiHF UL/CSA 4G10 20.0 384.0 741.0 8
23278 SiHF UL/CSA 5G10 22.1 480.0 914.0 8
23279 SiHF UL/CSA 7G10 24.9 672.0 1164.0 8
23280 SiHF UL/CSA 2X16
20.9 307.2 441.0 6
23281 SiHF UL/CSA 3G16 22.8 460.8 501.0 6
23282 SiHF UL/CSA 4G16 24.9 614.4 623.0 6
23283 SiHF UL/CSA 5G16 26.9 768.0 971.0 6
23284 SiHF UL/CSA 7G16 28.1 1075.3 1690.0 6
23285 SiHF UL/CSA 2X25
25.1 480.0 711.0 4
23286 SiHF UL/CSA 3G25 27.0 720.0 1210.0 4
23287 SiHF UL/CSA 4G25 32.1 960.0 1524.0 4
23288 SiHF UL/CSA 2X35
28.7 672.0 1140.0 2
23289 SiHF UL/CSA 3G35 30.6 1008.0 1523.0 2
23290 SiHF UL/CSA 4G35 32.9 1344.0 2217.0 2
Technical Data European
  • Special silicone multi conductor cable with higher heat-resistance range to UL Style 4476 and CSA AWM II A/B
  • Temperature Range
    VDE
    -60°C to +180°C (-76°F to +356°F)
    (up to +220°C/+428°F for short time)
    UL/CSA
    -50°C to +150°C (-58°F to +302°F)
  • Nominal Voltage
    VDE U0/U 300/500 V
    UL/CSA U 600 V
  • Test Voltage 2000 V
  • Breakdown Voltage min. 5000 V
  • Insulation Resistance
    Min. 200 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 20x106 cJ/kg (up to 20 Mrad)
Approvals
RoHSUL CSA CE VDE
Cable Construction
  • Tinned copper conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Silicone conductor insulation
  • Conductor identification to DIN VDE 0293-308 color coded or black conductors with continuous white numbers
  • For 2-conductors brown, blue
  • Conductors stranded in layers with optimal lay-length
  • Green-yellow earth-conductor (3 conductors and above)
  • Outer jacket of silicone
  • Jacket color: Preferably black
Application
UL-CSA approved Silicone cables were designed for use wherever insulation is subjected to extreme temperature changes. They are heat resistant for permanent temperatures up to +180°C/+356°F, and short time for operation to +220°C/+428°F. These cables have great environmental resistance properties and can be used at temperatures as low as -60°C/-76°F. Silicone cables are halogen-free and are especially suitable for installation in power stations. They have also found their uses in steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories.
Due to the elastic characteristics of the conductor insulation, they are used as flexible connection cables.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Advantages: Minimal changes of dielectric strength and the insulation resistance also at high temperatures, high ignition or flash point, in case of fire, forms an insulating layer of SiO2
  • Resistant to high molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen and UV
  • Halogen-free according to DIN VDE 0482 part 267/ EN 50267-2-1/ IEC 60754-1 (equivalent DIN VDE 0472 part 815)
  • Behavior in fire no flame propagation test according to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding +90°C/+194° F.
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OB)
Cable Accessories
  • Coming Soon!
