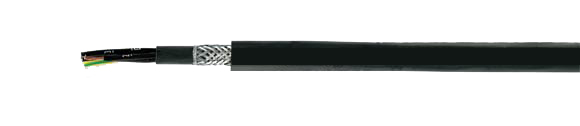

European Internationally Approved Cable: JZ 604-YCY TC TRAY CABLE

PVC Power Cable, Shielded, Exposed Run, +90°C/+194°F, 600 V, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

JZ 604-YCY TC TRAY CABLE PVC power cable, shielded, 90C, 600V, EMI preferred type, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
69804 JZ-604-YCY TC 3G16 TRAY CABLE 25.2 653.0 1385.0 6
69805 JZ-604-YCY TC 4G16 TRAY CABLE 27.8 807.0 1861.0 6
69806 JZ-604-YCY TC 5G16 TRAY CABLE 31.2 940.0 2614.0 6
69807 JZ-604-YCY TC 7G16 TRAY CABLE 34.5 1345.0 3211.0 6
69808 JZ-604-YCY TC 3G25 TRAY CABLE 29.0 920.0 2455.0 4
69809 JZ-604-YCY TC 4G25 TRAY CABLE 32.4 1169.0 2721.0 4
69810 JZ-604-YCY TC 5G25 TRAY CABLE 34.2 1420.0 3490.0 4
69811 JZ-604-YCY TC 7G25 TRAY CABLE 40.3 1921.0 4960.0 4
69812 JZ-604-YCY TC 3G35 TRAY CABLE 32.4 1250.0 3130.0 2
69813 JZ-604-YCY TC 4G35 TRAY CABLE 36.2 1680.0 4100.0 2
69814 JZ-604-YCY TC 5G35 TRAY CABLE 40.5 2020.0 4921.0 2
69815 JZ-604-YCY TC 3G50 TRAY CABLE 40.4 1887.0 4560.0 1
69816 JZ-604-YCY TC 4G50 TRAY CABLE 45.5 2370.0 5761.0 1
69817 JZ-604-YCY TC 5G50 TRAY CABLE 50.0 2880.0 7186.0 1
69818 JZ-604-YCY TC 3G70 TRAY CABLE 47.1 2516.0 5580.0 2/0
69819 JZ-604-YCY TC 4G70 TRAY CABLE 51.1 3257.0 7387.0 2/0
69820 JZ-604-YCY TC 5G70 TRAY CABLE 56.0 4032.0 9290.0 2/0
69821 JZ-604-YCY TC 3G95 TRAY CABLE 50.1 3086.0 8520.0 3/0
69822 JZ-604-YCY TC 4G95 TRAY CABLE 55.0 4060.0 10200.0 3/0
69823 JZ-604-YCY TC 5G95 TRAY CABLE 60.5 5244.0 13800.0 3/0
69824 JZ-604-YCY TC 3G120 TRAY CABLE 54.0 41746.0 11090.0 4/0
69825 JZ-604-YCY TC 4G120 TRAY CABLE 59.5 5231.0 13620.0 4/0
69826 JZ-604-YCY TC 5G120 TRAY CABLE 64.5 6624.0 15420.0 4/0
Technical Data European
  • PVC power cable, shielded to UL-standard 1277 TRAY CABLE
  • Multinorm
    Also conforms to the following standards:
    AWM-Style 2587 to UL-Std. 758
    (cUL) and CSA type TC FT4 to C22.2 no 230, CSA C22.2 No 210.2 I/II A/B +90°C/+194°F 600 V FT4
  • Temperature Range
    Dry Environment
    Flexing
    -5°C to +90°C (+23°F to +194°F)
    Fixed Installation
    -25°C to +90°C (-13°F to +194°F)
    Wet Environment
    Flexing
    -5°C to +75°C (+23°F to +167°F)
    Fixed Installation
    -25°C to +75°C (-13°F to +167°F)
  • Nominal Voltage to UL 600 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    10x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSUL CSA AWM
Cable Construction
  • Bare copper, fine wire conductors, according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation class 12 B to table 50.155 UL-standard 1581,
    type TFF to UL-Std. 62 table 6.2 (AWG 20-AWG 16),
    type THHW to UL-Std. 83 table 5.2 (AWG 14)
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow earth conductor in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • PVC-inner jacket, to UL-Std. 1277 table 11.2
  • Tinned copper braided shielding, approx. 85% coverage
  • Special PVC outer jacket, to UL-Std. 1277 table 11.2
  • Jacket color: Black (RAL 9005)
Application

UL-approved, flexible high current cables for use up to 600 V, for all machines, tools and installation work. Suitable for use in dry, damp and wet areas, outside, in cable ducts, open cable trays. Also in pipes, in the ground and for open installation in machinery and industrial areas.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Material self-extinguishing and flame retardant to UL-Standard 1277
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow earth conductor;
    x = without green-yellow earth conductor (OZ).
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Unshielded type: JZ 604 TC TRAY CABLE
Cable Accessories
  • Coming Soon!
