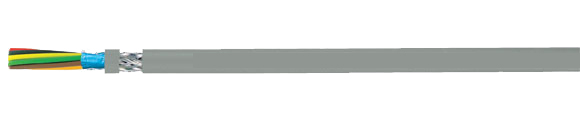

Internationally Approved Cable: TRAYCONTROL 300-C

Flexible, Shielded, Oil Resistant, EMI Preferred Type, NFPA 79 Edition 2007

Hi-Tech Controls, Inc, European & Domestic cable

Traycontrol 300-C, Tray Control 300-C, Traycontrol 300 C, Tray Control 300 C, Traycontrol, Tray Control, 62710, 62711, 62712, 62713, 62714, 62715, 62716, 62717, 62718, 62719, 62720, 62721, 62722, 62723, 62724, 62725, 62726, 62727, 62728, 62729, 62730, 62731, 62732, 62733, 62734, 62735, 62736, 62737, 62738, 62739, 62740, 62741, 62742, 62743, 62744, 62745, 62746, 62747, 62748, 62749, 62750, 62751, 62752, 62753, 62754, 62755, 62756, 62757, 62758, 62759, 62760, 62761, 62762, 62763, 62764, 62765, 62766, 62767, 62768, 62769, 62770, 62771, 62772, 62773, 62774, 62775, 62776, 62777, 62778, 62779, 62780, 62781, 62782, 62783, 62784, 62785, 62786, 62787, 62788, 62789, 62790, 62791, 62792, 62793, Hi-Tech Controls, Hi Tech Controls,
AWG Selection
28 28 26 26 24 24 22 22
20 20 18 18 16 16
Part-No. Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
62710 TRAYCONTROL 300-C 0.08 mm2 (19/40) 2 4.4 6 16 28
62711 TRAYCONTROL 300-C 0.08 mm2 (19/40) 3 4.6 7 22 28
62712 TRAYCONTROL 300-C 0.08 mm2 (19/40) 4 4.9 9 27 28
62713 TRAYCONTROL 300-C 0.08 mm2 (19/40) 6 5.4 12 34 28
62714 TRAYCONTROL 300-C 0.08 mm2 (19/40) 8 5.7 15 37 28
62715 TRAYCONTROL 300-C 0.08 mm2 (19/40) 10 6.3 18 43 28
62716 TRAYCONTROL 300-C 0.08 mm2 (19/40) 15 6.9 24 52 28
62717 TRAYCONTROL 300-C 0.08 mm2 (19/40) 20 7.5 30 67 28
62718 TRAYCONTROL 300-C 0.08 mm2 (19/40) 25 8.5 37 79 28
62719 TRAYCONTROL 300-C 0.08 mm2 (19/40) 30 8.8 43 88 28
62720 TRAYCONTROL 300-C 0.08 mm2 (19/40) 40 9.6 54 112 28
62721 TRAYCONTROL 300-C 0.08 mm2 (19/40) 50 11.3 67 131 28
62722 TRAYCONTROL 300-C 0.14 mm2 (19/38) 2 4.6 9 24 26
62723 TRAYCONTROL 300-C 0.14 mm2 (19/38) 3 4.8 10 27 26
62724 TRAYCONTROL 300-C 0.14 mm2 (19/38) 4 5.0 12 31 26
62725 TRAYCONTROL 300-C 0.14 mm2 (19/38) 6 5.6 16 39 26
62726 TRAYCONTROL 300-C 0.14 mm2 (19/38) 8 5.9 19 43 26
62727 TRAYCONTROL 300-C 0.14 mm2 (19/38) 10 6.6 24 51 26
62728 TRAYCONTROL 300-C 0.14 mm2 (19/38) 15 7.3 31 66 26
62729 TRAYCONTROL 300-C 0.14 mm2 (19/38) 20 8.1 40 79 26
62730 TRAYCONTROL 300-C 0.14 mm2 (19/38) 25 9.0 49 92 26
62731 TRAYCONTROL 300-C 0.14 mm2 (19/38) 30 9.3 57 110 26
62732 TRAYCONTROL 300-C 0.14 mm2 (19/38) 40 10.2 72 136 26
62733 TRAYCONTROL 300-C 0.14 mm2 (19/38) 50 11.9 88 165 26
62734 TRAYCONTROL 300-C 0.25 mm2 (19/36) 2 4.9 15 30 24
62735 TRAYCONTROL 300-C 0.25 mm2 (19/36) 3 5.1 16 33 24
62736 TRAYCONTROL 300-C 0.25 mm2 (19/36) 4 5.3 19 37 24
62737 TRAYCONTROL 300-C 0.25 mm2 (19/36) 6 6.0 27 48 24
62738 TRAYCONTROL 300-C 0.25 mm2 (19/36) 8 6.3 31 57 24
62739 TRAYCONTROL 300-C 0.25 mm2 (19/36) 10 7.1 39 67 24
62740 TRAYCONTROL 300-C 0.25 mm2 (19/36) 15 8.2 51 85 24
62741 TRAYCONTROL 300-C 0.25 mm2 (19/36) 20 8.9 64 106 24
62742 TRAYCONTROL 300-C 0.25 mm2 (19/36) 25 9.8 77 128 24
62743 TRAYCONTROL 300-C 0.25 mm2 (19/36) 30 10.1 92 155 24
62744 TRAYCONTROL 300-C 0.25 mm2 (19/36) 40 11.2 118 206 24
62745 TRAYCONTROL 300-C 0.25 mm2 (19/36) 50 13.0 148 249 24
62746 TRAYCONTROL 300-C 0.34 mm2 (19/34) 2 5.3 19 34 22
62747 TRAYCONTROL 300-C 0.34 mm2 (19/34) 3 5.5 22 40 22
62748 TRAYCONTROL 300-C 0.34 mm2 (19/34) 4 5.8 27 46 22
62749 TRAYCONTROL 300-C 0.34 mm2 (19/34) 6 6.5 34 60 22
62750 TRAYCONTROL 300-C 0.34 mm2 (19/34) 8 6.9 45 72 22
62751 TRAYCONTROL 300-C 0.34 mm2 (19/34) 10 8.1 69 85 22
62752 TRAYCONTROL 300-C 0.34 mm2 (19/34) 15 9.0 77 115 22
62753 TRAYCONTROL 300-C 0.34 mm2 (19/34) 20 9.7 92 140 22
62754 TRAYCONTROL 300-C 0.34 mm2 (19/34) 25 11.4 121 176 22
62755 TRAYCONTROL 300-C 0.34 mm2 (19/34) 30 11.8 139 210 22
62756 TRAYCONTROL 300-C 0.34 mm2 (19/34) 40 12.9 177 273 22
62757 TRAYCONTROL 300-C 0.34 mm2 (19/34) 50 14.3 215 331 22
62758 TRAYCONTROL 300-C 0.75 mm2 (19/32) 2 6.4 28 73 20
62759 TRAYCONTROL 300-C 0.75 mm2 (19/32) 3 6.7 34 77 20
62760 TRAYCONTROL 300-C 0.75 mm2 (19/32) 4 7.2 40 91 20
62761 TRAYCONTROL 300-C 0.75 mm2 (19/32) 6 8.6 54 118 20
62762 TRAYCONTROL 300-C 0.75 mm2 (19/32) 8 9.1 70 158 20
62763 TRAYCONTROL 300-C 0.75 mm2 (19/32) 10 10.4 83 173 20
62764 TRAYCONTROL 300-C 0.75 mm2 (19/32) 15 12.3 119 218 20
62765 TRAYCONTROL 300-C 0.75 mm2 (19/32) 20 13.6 130 298 20
62766 TRAYCONTROL 300-C 0.75 mm2 (19/32) 25 15.0 186 401 20
62767 TRAYCONTROL 300-C 0.75 mm2 (19/32) 30 15.5 224 477 20
62768 TRAYCONTROL 300-C 0.75 mm2 (19/32) 40 17.7 288 623 20
62769 TRAYCONTROL 300-C 0.75 mm2 (19/32) 50 19.7 337 752 20
62770 TRAYCONTROL 300-C 1 mm2 (19/30) 2 6.9 37 80 18
62771 TRAYCONTROL 300-C 1 mm2 (19/30) 3 7.2 49 86 18
62772 TRAYCONTROL 300-C 1 mm2 (19/30) 4 8.0 58 101 18
62773 TRAYCONTROL 300-C 1 mm2 (19/30) 6 9.2 82 130 18
62774 TRAYCONTROL 300-C 1 mm2 (19/30) 8 9.8 100 168 18
62775 TRAYCONTROL 300-C 1 mm2 (19/30) 10 12.0 124 226 18
62776 TRAYCONTROL 300-C 1 mm2 (19/30) 15 13.5 180 295 18
62777 TRAYCONTROL 300-C 1 mm2 (19/30) 20 14.7 234 386 18
62778 TRAYCONTROL 300-C 1 mm2 (19/30) 25 16.9 277 462 18
62779 TRAYCONTROL 300-C 1 mm2 (19/30) 30 17.6 323 590 18
62780 TRAYCONTROL 300-C 1 mm2 (19/30) 40 19.4 416 773 18
62781 TRAYCONTROL 300-C 1 mm2 (19/30) 50 21.6 508 958 18
62782 TRAYCONTROL 300-C 1.50 mm2 (26/30) 2 7.4 51 110 16
62783 TRAYCONTROL 300-C 1.50 mm2 (26/30) 3 8.1 63 116 16
62784 TRAYCONTROL 300-C 1.50 mm2 (26/30) 4 8.7 76 139 16
62785 TRAYCONTROL 300-C 1.50 mm2 (26/30) 6 10.0 104 195 16
62786 TRAYCONTROL 300-C 1.50 mm2 (26/30) 8 11.2 134 283 16
62787 TRAYCONTROL 300-C 1.50 mm2 (26/30) 10 13.1 168 316 16
62788 TRAYCONTROL 300-C 1.50 mm2 (26/30) 15 14.7 234 410 16
62789 TRAYCONTROL 300-C 1.50 mm2 (26/30) 20 16.2 301 551 16
62790 TRAYCONTROL 300-C 1.50 mm2 (26/30) 25 18.6 367 675 16
62791 TRAYCONTROL 300-C 1.50 mm2 (26/30) 30 19.3 428 794 16
62792 TRAYCONTROL 300-C 1.50 mm2 (26/30) 40 21.5 550 1033 16
62793 TRAYCONTROL 300-C 1.50 mm2 (26/30) 50 24.3 669 1274 16
Color Code
TRAYCONTROL 300 / TRAYCONTROL 300-C (AWG 28-22)
Stranded Pair
Pair No.
Color   Stranded Pair
Pair No.
Color   Stranded Pair
Pair No.
Color
1 black 18 white/violet 35 white/red/orange
2 brown 19 white/gray 36 white/red/yelIow
3 red 20 white/black/brown 37 white/red/green
4 orange 21 white/black/red 38 white/red/blue
5 yellow 22 white/black/orange 39 white/red/violet
6 green 23 white/black/yellow 40 white/red/gray
7 blue 24 white/black/green 41 white/orange/yellow
8 violet 25 white/black/blue 42 white/orange/green
9 gray 26 white/black/violet 43 white/orange/blue
10 white 27 white/black/gray 44 white/orange/violet
11 white/black 28 white/brown/red 45 white/orange/gray
12 white/brown 29 white/brown/orange 46 white/yeIlow/green
13 white/red 30 white/brown/yellow 47 white/yellow/blue
14 white/orange 31 white/brown/green 48 white/yellow/vioIet
15 white/yellow 32 white/brown/blue 49 white/yellow/gray
16 white/green 33 white/brown/violet 50 white/green/blue
17 white/blue 34 white/brown/gray
Color Code
TRAYCONTROL 300 / TRAYCONTROL 300-C (AWG 20-16)
Stranded Pair
Pair No.
Color   Stranded Pair
Pair No.
Color   Stranded Pair
Pair No.
Color
1 black 18 white/green 35 white/red/red
2 red 19 white/yellow 36 white/red/green
3 white 20 white/blue 37 white/red/blue
4 green 21 white/brown 38 white/red/brown
5 orange 22 white/orange 39 white/red/violet
6 blue 23 white/gray 40 white/green/black
7 brown 24 white/violet 41 white/green/red
8 yellow 25 white/black/red 42 white/green/green
9 violet 26 white/black/green 43 white/green/blue
10 gray 27 white/black/yellow 44 white/green/brown
11 pink 28 white/black/blue 45 white/green/violet
12 light brown 29 white/black/brown 46 white/blue/black
13 red/green 30 white/black/orange 47 white/blue/red
14 red/yellow 31 white/black/gray 48 white/bIue/green
15 red/black 32 white/black/violet 49 white/blue/blue
16 white/black 33 white/black/black 50 white/bIue/brown
17 white/red 34 white/red/black
Technical Data
  • Flexible shielded PVC data and control cable
  • Temperature range
    -25C to +105C (-13F to +221F)
  • Nominal voltage 300 V
  • Test voltage 2000 V
  • Minimum bending radius
    Flexing 6x cable
  • Coupling resistance
    Max. 250 Ohm/km
Approvals
RoHSUL CSA CE
Cable Construction
  • Tinned copper conductor, fine wire stranded, with AWG measures
  • Special PVC conductor insulation (AWG 22 -AWG 16 with transparent nylon skin)
  • Conductor identification according to international colour code: AWG 28-AWG 22, AWG 20-AWG 16
  • Conductors stranded in layers with optimal lay-lengths
    1. Shielding with special aluminium foil
    2. Shielding with braid of tinned copper wires, optimal coverage, approx. 85%
  • Separator
  • Special PVC outer jacket
  • Jacket colour - gray (RAL 7001)
  • With sequential length marking in feet
Application

European TRAYCONTROL 300-C is a shielded, multi-conductor PVC data and control cable. Cross-sections with PLTC-ER and ITC-ER approval suitable for open, unprotected installation in cable trays to the machine; their outstanding oil resistance (OIL RES I & II) makes them ideally suited as connecting and joining cables and also for control, signal and measuring systems in industrial plants. The flexible cable structure facilitates installation inside and outside of machines and switch cabinets. The double-shielding with aluminium foil (1 00% coverage) and copper braid
(approx. 85% coverage) guarantee superior EMI protection. Applications: tool machines, control panels, measuring devices, production automation, cable ducts, renewable energies.
EMI = Electromagnetic Interference. To optimize EMI characteristics, we recommend a large contact area for the copper braiding around the entire circumference on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Self-extinguishing and flame retardant in accordance with CSA FT4
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • Tests:
    UL (AWG 22 - AWG 16): PLTC-ER, ITC-ER, Type CM, NFPA 79 2007, OIL RES I & II, Class I Div. 2, NEC Art. 501, 725, 760 & 800, AWM 2517/2464
    UL (AWG 24 - AWG 28): CM, AWM 2517/2464, rated OIL RES I & II, NEC Art. 725, 760 & 800, NFPA 79 2007
    CSA: CMG FT4, AWM l/ll A/B

Note
  • Advantages:
  • Highly-flexible, easy to install
  • Available on request:
  • PUR or TPE outer jacket
  • Jacket color to suit customer requirement
Cable Accessories
  • Coming Soon!
