Control Cable: Single 600-CY -J/-O

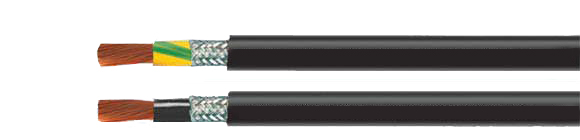

Special Single Conductor Cable, Copper-Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls,  - Single 600 -J/-O, Special Single Conductor Cable, UL-CSA approved 0,6/1 kV, Control Cable
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
10910 Single 600-CY -J, UL/CSA, 1G6 , green-yellow 7.6 72.0 140.0 10
10911 Single 600-CY -O, UL/CSA, 1x6, black 7.6 72.0 140.0 10
10912 Single 600-CY -J, UL/CSA, 1G10, green-yellow 9.4 130.0 230.0 8
10913 Single 600-CY -O, UL/CSA, 1x10 , black 9.4 130.0 230.0 8
10914 Single 600-CY -J, UL/CSA, 1G16 , green-yellow 10.4 190.0 300.0 6
10915 Single 600-CY -O, UL/CSA, 1x16 , black 10.4 190.0 300.0 6
10916 Single 600-CY -J, UL/CSA, 1G25. green-yellow 12.0 260.0 420.0 4
10917 Single 600-CY -O, UL/CSA, 1x25, black 12.0 260.0 420.0 4
10918 Single 600-CY -J, UL/CSA, 1G35, green-yellow 14.4 405.0 615.0 2
10919 Single 600-CY -O, UL/CSA, 1x35, black 14.4 405.0 615.0 2
10920 Single 600-CY -J, UL/CSA, 1G50, green-yellow 16.4 560.0 825.0 1
10921 Single 600-CY -O, UL/CSA, 1x50, black 16.4 560.0 825.0 1
10922 Single 600-CY -J, UL/CSA, 1G70 , green-yellow 17.4 780.0 1090.0 2/0
10923 Single 600-CY -O, UL/CSA, 1x70 , black 17.4 780.0 1090.0 2/0
10924 Single 600-CY -J, UL/CSA, 1G95, green-yellow 20.1 1030.0 1395.0 3/0
10925 Single 600-CY -O, UL/CSA, 1x95 , black 20.1 1030.0 1395.0 3/0
10926 Single 600-CY -J, UL/CSA, 1G120, green-yellow 23.0 1285.0 1770.0 4/0
10927 Single 600-CY -O, UL/CSA, 1x120, black 23.0 1285.0 1770.0 4/0
10928 Single 600-CY -J, UL/CSA, 1G150, green-yellow 26.1 1430.0 1930.0 300 kcmil
10929 Single 600-CY -O, UL/CSA, 1x150, black 26.1 1430.0 1930.0 300 kcmil
10930 Single 600-CY -J, UL/CSA, 1G185, green-yellow 29.3 1940.0 2635.0 350 kcmil
10931 Single 600-CY -O, UL/CSA, 1x185, black 29.3 1940.0 2635.0 350 kcmil
10932 Single 600-CY -J, UL/CSA, 1G240 , green-yellow 32.2 2530.0 3380.0 500 kcmil
10933 Single 600-CY -O, UL/CSA, 1x240, black 32.2 2530.0 3380.0 500 kcmil
Technical Data
  • Special PVC control cable according to UL Style 10107 and CSA AWM I/II A/B, adapted to DIN VDE 0281 part 3, DIN VDE 0281 part 13, to UL Std. 758
  • Temperature Range
    Flexing
    -5�C to +90�C (+23�F to +194�F)
    Fixed Installation
    -40�C to +90�C (-40�F to +194�F)
  • Permissible Operating Temperature
    Max. +80�C/+176�F at conductor
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable �
    Fixed Installation 4x cable �
  • Coupling Resistance
    Max. 250 0hm/km
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA CE RoHS PCT
Cable Construction
  • Bare copper, fine wire conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • 1. Conductor isolation of special PVC, TI2 to DIN VDE 0281 part 1 and UL Std. 1581 class 43, color black or green-yellow
  • Tinned copper braided shielding, coverage approx. 85%
  • 2. Conductor insulation of special PVC, TM2 to DIN VDE 0281 part 1 and UL Std. 1581 class 43
  • Color: Black (RAL 9005)
Application
PVC Single conductors suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). Is not suitable to be used as direct burial-or as underwater cable.
These two norms approved single conductors designed for export orientated machinery manufacturer for machine tools, conveyor belts and production lines. These shielded cables are particularly suitable for the interference-free transmission in instrumentation and control engineering applications (electromagnetic interference).
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • For Chemical Resistance, see table Technical information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B), UL-VW 1
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • Resistant to ultra violet rays
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
