European Internationally Approved Cable:

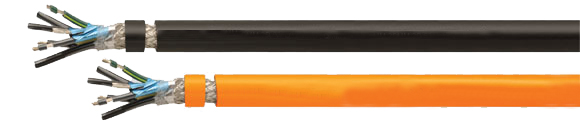

TOPFLEX® 650 VFD

EMC preferred type, flexible motor supply cable, oil-resistant, NFPA 79 Edition 2007

Hi-Tech Controls, Inc, European & Domestic cable

Topflex 600 VFD, Topflex 600 VFD, Topflex, Top Flex, Hi-Tech Controls, European
Jacket Color: Black
European Part-No. Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
63156 TOPFLEX® 650 VFD 1.50 mm2 (26/30) 4c/16 + 2c/18 13.0 88 259 16
63157 TOPFLEX® 650 VFD 2.50 mm2 (41/30) 4c/14 + 2c/18 14.0 133 370 14
63138 TOPFLEX® 650 VFD 2.50 mm2 (41/30) 4c/14 + 2c/14 14.6 159 399 14
63158 TOPFLEX® 650 VFD 4 mm2 (65/30) 4c/12 + 2c/18 15.3 197 435 12
63159 TOPFLEX® 650 VFD 4 mm2 (65/30) 4c/12 + 2c/14  15.7 224 466 12
63160 TOPFLEX® 650 VFD 6 mm2 (105/30) 4c/10 + 2c/14  18.2 301 703 10
63161 TOPFLEX® 650 VFD 10 mm2 (168/30) 4c/8 + 2c/14 24.1 457 901 8
63162 TOPFLEX® 650 VFD 16 mm2 (266/30) 4c/6 + 2c/14 27.4 615 1275 6
63163 TOPFLEX® 650 VFD 25 mm2 (413/30) 4c/4 + 2c/14 33.4 1450 1861 4
Jacket Color: Orange, Desnia
European Part-No. Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
62876 TOPFLEX® 650 VFD 1.50 mm2 (26/30) 4c/16 + 2c/18 13.0 88 259 16
62877 TOPFLEX® 650 VFD 2.50 mm2 (41/30) 4c/14 + 2c/18 14.0 133 370 14
62878 TOPFLEX® 650 VFD 2.50 mm2 (41/30) 4c/14 + 2c/14 14.6 159 399 14
62879 TOPFLEX® 650 VFD 4 mm2 (65/30) 4c/12 + 2c/18 15.3 197 435 12
62880 TOPFLEX® 650 VFD 4 mm2 (65/30) 4c/12 + 2c/14 15.7 224 466 12
62881 TOPFLEX® 650 VFD 6 mm2 (105/30) 4c/10 + 2c/14 18.2 301 703 10
62882 TOPFLEX® 650 VFD 10 mm2 (168/30) 4c/8 + 2c/14 24.1 457 901 8
62883 TOPFLEX® 650 VFD 16 mm2 (266/30) 4c/6 + 2c/14 27.4 615 1275 6
62884 TOPFLEX® 650 VFD 25 mm2 (413/30) 4c/4 + 2c/14 33.4 1450 1861 4
Technical Data European
  • TPE motor supply cable according to UL 1277
  • Temperature range
    Flexing -25°C to +105°C (-13°F to +221°F)
  • Nominal voltage
    TC 600 V
    WTTC 1000 V
  • Test voltage
    Power supply cores 4000 V
    Control conductors 2000 V
  • Minimum bending radius
    Flexing 6x cable Ø
  • Coupling resistance
    Max. 250 Ohm/km
Approvals
RoHSUL CE CSA
Cable Construction
  • Tinned copper conductor, fine wire stranded, with AWG measures
  • Special PVC conductor insulation with transparent nylon skin
  • Black supply conductors with continuous white numbering
  • Green-yellow ground conductor in the outer layer
  • 2 black control conductors with marking 5 and 6
  • Control conductors shielded in pairs with plastic-coated aluminium foil, tinned drain wire
  • Control conductors stranded in pairs and laid up in layers with optimal lay-length with the power supply conductors
    1. Shielding with plastic-coated aluminium foil
    2. Shielding from tinned Cu braid, optimal coverage approx. 85%
  • Separator
  • Special TPE outer jacket
  • Jacket color - black (RAL 9005) or orange (RAL 2003)
  • With sequential length marking in feet
Application
Flexible, extremely oil-resistant motor supply cable for modern servomotors; the double-screening with special aluminium foil (100% coverage) and tinned copper braid (approx. 85% coverage) provides effective protection against electrical disturbance and the resultant failures. Approved to NFPA 79 2007 for open, unprotected installation on cable trays and from cable trays to the machine. The special TPE jacket is extremely resistant to oil, coolants and solvents and hence the perfect solution for industrial applications with open installation, installation in pipes and in the earth.
EMI = Electromagnetic interference.
To optimize EMI characteristics, we recommend a large contact area for the copper braiding around the entire circumference on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Self-extinguishing and flame retardant in accordance with CSA FT4
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • UV-resistant
  • Tests
    UL:
    TC-ER, WTTC 1000 V, MTW, NFPA 79 2007, UL 1277, PLTC-ER (AWG 18-AWG 12), ITC-ER (AWG 18-AWG 12), OIL RES I & II, 90°C/194°F dry and 75°C/167°F wet, Class 1 Div. 2 per NEC Part nos. 336, 392, 501
    CSA:
    c (UL) CIC-TC FT4, AWM l/ll A/B FT4
Note
  • VFD = Variable Frequency Drive
Cable Accessories
  • Coming Soon!
