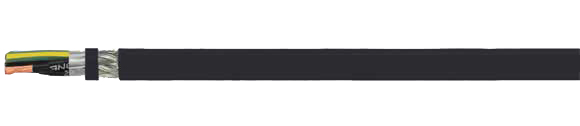

Internationally Approved Cable: MULTIFLEX 600-C

Highly-flexible, oil resistant, shielded, EMI preferred type, control cable for open installation TC-ER, PLTC-ER, ITC-ER, NFPA 79 Edition 2007

Hi-Tech Controls, Inc, European wires and cables

Multiflex 600-C, Multi Flex 600 C, Multiflex, Multi flex, Highly-flexible, oil-resistant control cable for open installation TC-ER, PLTC-ER, ITC-ER, NFPA 79 Edition 2007, 62556, 62557, 62558, 62559, 62560, 62561, 62562, 62563, 62564, 62565, 62566, 62567, 62568, 62569, 62570, 62571, 62572, 62573, 62574, 62575, 62576, 62577, 62578, 62579, 62580, 62581, 62582, 62583, 62584, 62585, 62586, 62587, 62588, 62589, 62590, 62591, 62592, 62593, 62594, 62595, 62596, 62597, 62598, 62599, 62600, 62602, 62603, 62605, Hi-Tech Controls, Hi Tech Controls,
AWG Selection
20 20 18 18 16 16 14 14 12 12
10 10 8 8 6 6 4 4 2 2

Part-No.
Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
62556 MULTIFLEX 600-C 0.50 mm2 2 7.7 30 80 20
62557 MULTIFLEX 600-C 0.50 mm2 3 8.0 37 85 20
62558 MULTIFLEX 600-C 0.50 mm2 4 8.7 46 100 20
62559 MULTIFLEX 600-C 0.50 mm2 5 9.3 54 113 20
62560 MULTIFLEX 600-C 0.50 mm2 7 10.7 70 152 20
62561 MULTIFLEX 600-C 0.50 mm2 12 12.3 112 210 20
62562 MULTIFLEX 600-C 0.50 mm2 18 15.1 153 304 20
62563 MULTIFLEX 600-C 0.50 mm2 25 18.1 225 408 20
62564 MULTIFLEX 600-C 0.50 mm2 34 19.8 267 530 20
62565 MULTIFLEX 600-C 0.75 mm2 3 8.5 55 101 18
62566 MULTIFLEX 600-C 0.75 mm2 4 9.3 69 127 18
62567 MULTIFLEX 600-C 0.75 mm2 5 10.0 82 148 18
62568 MULTIFLEX 600-C 0.75 mm2 7 11.6 119 186 18
62569 MULTIFLEX 600-C 0.75 mm2 12 14.1 178 286 18
62570 MULTIFLEX 600-C 0.75 mm2 15 15.2 175 455 18
62571 MULTIFLEX 600-C 0.75 mm2 18 16.3 252 383 18
62572 MULTIFLEX 600-C 0.75 mm2 25 19.6 362 514 18
62573 MULTIFLEX 600-C 0.75 mm2 34 21.9 473 685 18
62574 MULTIFLEX 600-C 1.5 mm2 3 9.3 75 131 16
62575 MULTIFLEX 600-C 1.5 mm2 4 10.2 93 165 16
62576 MULTIFLEX 600-C 1.5 mm2 5 11.0 113 195 16
62577 MULTIFLEX 600-C 1.5 mm2 7 12.9 162 250 16
62578 MULTIFLEX 600-C 1.5 mm2 9 15.2 193 340 16
62579 MULTIFLEX 600-C 1.5 mm2 12 15.6 249 393 16
62580 MULTIFLEX 600-C 1.5 mm2 18 18.4 376 559 16
62581 MULTIFLEX 600-C 1.5 mm2 25 23.1 510 788 16
62582 MULTIFLEX 600-C 1.5 mm2 34 25.8 674 1203 16
62583 MULTIFLEX 600-C 2.5 mm2 3 10.3 141 218 14
62584 MULTIFLEX 600-C 2.5 mm2 4 11.5 149 222 14
62585 MULTIFLEX 600-C 2.5 mm2 5 12.4 195 350 14
62586 MULTIFLEX 600-C 2.5 mm2 7 15.4 243 373 14
62587 MULTIFLEX 600-C 2.5 mm2 9 16.8 312 479 14
62588 MULTIFLEX 600-C 2.5 mm2 12 18.5 368 730 14
62589 MULTIFLEX 600-C 2.5 mm2 18 22.4 639 1140 14
62590 MULTIFLEX 600-C 2.5 mm2 25 25.5 796 1530 14
62591 MULTIFLEX 600-C 4 mm2 3 11.7 180 296 12
62592 MULTIFLEX 600-C 4 mm2 4 13.3 221 305 12
62593 MULTIFLEX 600-C 4 mm2 5 14.7 330 450 12
62594 MULTIFLEX 600-C 4 mm2 7 17.8 363 536 12
62595 MULTIFLEX 600-C 6 mm2 4 16.1 314 469 10
62596 MULTIFLEX 600-C 6 mm2 5 17.5 441 772 10
62597 MULTIFLEX 600-C 6 mm2 7 20.6 505 1028 10
62598 MULTIFLEX 600-C 10 mm2 4 21.9 526 790 8
62599 MULTIFLEX 600-C 10 mm2 5 24.1 610 1096 8
62600 MULTIFLEX 600-C 16 mm2 4 24.8 730 1621 6
62602 MULTIFLEX 600-C 16 mm2 5 27.2 1050 1759 6
62603 MULTIFLEX 600-C 25 mm2 4 33.1 1450 2100 4
62605 MULTIFLEX 600-C 35 mm2 4 37.8 1890 2550 2
Technical Data
  • Highly-flexible PVC control cable according to UL Standard 1277
  • Temperature range
    Flexing -5C to +90C (+23F to +194F)
    Fixed installation -40C to +90C (-40F to +194F)
  • Nominal voltage
    TC 600 V
    TC Wind Turbine (WTTC) 1000 V
  • Test voltage 3000 V
  • Coupling resistance
    Max. 250 Ohm/km
  • Minimum bending radius
    Permanently flexing
    10x cable
  • Insulation resistance
    Min. 20 MOhm x km
  • Radiation resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHS UL CE CSA
Cable Construction
  • Bare copper conductor, extra-fine wire stranded, with AWG measures
  • Special PVC core insulation with transparent nylon skin
  • Black cores with continuous white numbering
  • Green-yellow ground conductor in the outer layer (3 conductors and more}
  • Cores stranded in layers with optimal lay-lengths
  • Separating foil
  • Braided screening of tinned copper wires, coverage approx, 85%
  • Separator
  • Special PVC outer jacket
  • Jacket color - black (RAL 9005)
  • With sequential length marking in feet
Application

European MULTIFLEX 600-C is a highly-flexible, shielded, oil-resistant control cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for industrial plant and machinery in accordance with NFPA 79 2007. Approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (OIL RES I & II) guarantees a long service life; for industrial applications in dry, damp and wet environments. Recommended applications: Production lines, bottling plants, machine construction, switch cabinets, conveyor systems, packaging machines, automotive industry.
EMI = Electromagnetic interference. To optimize EMI characteristics, we recommend a large contact area for the copper braiding around the entire circumference on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Self-extinguishing and flame retardant in accordance with CSA FT4
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • UV-resistant
  • Tests
    UL:
    NFPA 79 2007, OIL RES l & ll, 90C dry / 75C wet, MTW, Class 1 Div. 2 per NEC Art 336, 392, 501
    AWG 20 - 12 add'l feature:
    PLTC-ER, ITC-ER
    AWG 18 - 2 add'l feature:
    TC-ER, WTTC 1000V, DP-1, crush impact test in accordance with UL 1277
    CSA: CSA AWM l/lI A/B FT4, (UL) CIC-TC FT
Note
  • Advantages
  • Highly-flexible, simple installation
  • Available on request
  • With blue cores (DC)
  • With red cores (AC)
  • Gray or TPE outer jacket
Cable Accessories
  • Coming Soon!
