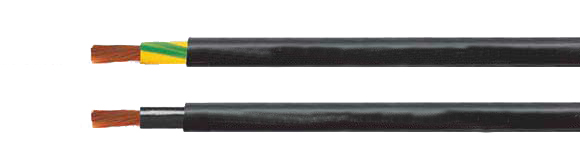

Control Cable: Single 600-J/-O

Special Single Conductor Cable, 0.6/1kV, 2 Approvals - UL, CSA

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls,  - Single 600 -J/-O, Special Single Conductor Cable, UL-CSA approved 0,6/1 kV
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
10881 Single 600 -J, UL/CSA, 1G6 , green-yellow 7.8 58.0 118.0 10
10882 Single 600 -O, UL/CSA, 1x6, black 7.8 58.0 118.0 10
10883 Single 600 -J, UL/CSA, 1G10 , green-yellow 9.0 96.0 180.0 8
10884 Single 600 -O, UL/CSA, 1x10 , black 9.0 96.0 180.0 8
10885 Single 600 -J, UL/CSA, 1G16, green-yellow 10.0 154.0 250.0 6
10886 Single 600 -O, UL/CSA, 1x16 , black 10.0 154.0 250.0 6
10887 Single 600 -J, UL/CSA, 1G25, green-yellow 11.5 240.0 370.0 4
10888 Single 600 -O, UL/CSA, 1x25, black 11.5 240.0 370.0 4
10889 Single 600 -J, UL/CSA, 1G35, green-yellow 13.0 336.0 490.0 2
10890 Single 600 -O, UL/CSA, 1x35, black 13.0 336.0 490.0 2
10891 Single 600 -J, UL/CSA, 1G50 , green-yellow 15.6 480.0 665.0 1
10892 Single 600 -O, UL/CSA, 1x50 , black 15.6 480.0 665.0 1
10893 Single 600 -J, UL/CSA, 1G70, green-yellow 17.9 672.0 910.0 2/0
10894 Single 600 -O, UL/CSA, 1x70, black 17.9 672.0 910.0 2/0
10895 Single 600 -J, UL/CSA, 1G95, green-yellow 19.5 912.0 1195.0 3/0
10896 Single 600 -O, UL/CSA, 1x95 , black 19.5 912.0 1195.0 3/0
10897 Single 600 -J, UL/CSA, 1G120, green-yellow 22.3 1152.0 1545.0 4/0
10898 Single 600 -O, UL/CSA, 1x120, black 22.3 1152.0 1545.0 4/0
10899 Single 600 -J, UL/CSA, 1G150 , green-yellow 25.0 1440.0 1750.0 300 kcmil
10900 Single 600 -O, UL/CSA, 1x150, black 25.0 1440.0 1750.0 300 kcmil
10901 Single 600 -J, UL/CSA, 1G185, green-yellow 28.6 1776.0 2320.0 350 kcmil
10902 Single 600 -O, UL/CSA, 1x185, black 28.6 1776.0 2320.0 350 kcmil
10903 Single 600 -J, UL/CSA, 1G240, green-yellow 31.4 2304.0 2960.0 500 kcmil
10904 Single 600 -O, UL/CSA, 1x240, black 31.4 2304.0 2960.0 500 kcmil
Technical Data
  • Special PVC control cable according to UL-Style 10107 and CSA AWM I/II A/B, adapted to DIN VDE 0281 part 3, DIN VDE 0281 part 13, to UL-Std. 758
  • Temperature
    Range Flexing
    -5C to +90C (+23F to +194F)
    Fixed Installation
    -40C to +90C (-40F to +194F)
  • Permissible Operating Temperature
    Max. +90C/194F at conductor
  • Nominal Voltage U0/U 0.6/1 kV
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable
    Fixed Installation 4x cable
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA CE VDE PCT
Cable Construction
  • Bare copper, fine wire conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • 1. Conductor insulation of special PVC, TI2 to DIN VDE 0821 part 1 and UL-Std. 1581 class 43, color black or green-yellow
  • 2. Conductor insulation (jacket) of special PVC, TM2 to DIN VDE 0821 part 1 and UL Std. 1581 class 43, color black (RAL 9005)
Application
PVC Single conductors suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). Is not suitable to be used as direct burial or as underwater cable.
These two norms approved single conductors designed for export-orientated machinery manufacture for machine tools, conveyor belts and production lines.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Chemical Resistance - see table Technical Information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-2-1, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B), UL-VW 1
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • Resistant to ultra violet rays
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
Cable Accessories
  • Coming Soon!
