European Special Cables: VERTEILERFLEX Two-Approvals

Sensor Actuator and Distributor Cables, PVC, PUR or PVC/PUR

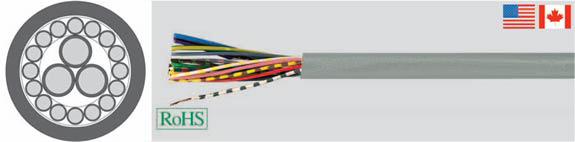

VERTEILERFLEX two-approvals sensor actuator and distributor cables, PVC, PUR or PVC/PUR, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
SENSORFLEX 2-APPROVALS
European Part-No. Description & No. Conductors
x cross-sec. mm2
Outer
Diameter
mm
Conductor
Colors
Copper Weight
kg/km
Weight
ca. kg/km
AWG
78284 SENSORFLEX 2-APPROVALS 3X0.25 4.4 View Colors 7.2 18.0 24
79907 SENSORFLEX 2-APPROVALS 4X0.25 4.7 View Colors 9.6 18.0 24
78286 SENSORFLEX 2-APPROVALS 6X0.25 5.2 View Colors 14.4 36.0 24
76345 SENSORFLEX 2-APPROVALS 3X0.34 4.9 View Colors 9.8 30.0 22
76347 SENSORFLEX 2-APPROVALS 4X0.34 5.2 View Colors 13.1 43.0 22
76349 SENSORFLEX 2-APPROVALS 5X0.34 5.9 View Colors 16.4 54.0 22
76348 SENSORFLEX 2-APPROVALS 5X0.34 5.9 View Colors 16.4 54.0 22
78287 SENSORFLEX 2-APPROVALS 5X0.34 5.9 View Colors 16.4 54.0 22
79850 SENSORFLEX 2-APPROVALS 5X0.34 5.9 View Colors 16.4 54.0 22
76351 SENSORFLEX 2-APPROVALS 3X0.75 6.7 View Colors 28.8 88.0 18
75642 SENSORFLEX 2-APPROVALS 3X0.75 5.9 View Colors 21.6 58.0 18
73571 SENSORFLEX 2-APPROVALS 3X0.75 6.7 View Colors 21.6 58.0 18
78288 SENSORFLEX 2-APPROVALS 3X0.75 5.9 View Colors 21.6 58.0 18
74551 SENSORFLEX 2-APPROVALS 4X0.75 6.9 View Colors 29.0 66.0 18
78289 SENSORFLEX 2-APPROVALS 4X0.75 7.0 View Colors 29.0 66.0 18
78290 SENSORFLEX 2-APPROVALS 2X1 7.2 View Colors 19.2 56.0 17
77352 SENSORFLEX 2-APPROVALS 2X1 7.2 View Colors 19.2 56.0 17
76350 SENSORFLEX 2-APPROVALS 11X1 12.0 View Colors 105.6 225.0 17
78291 SENSORFLEX 2-APPROVALS 2X1.5 6.8 View Colors 29.0 75.0 16
73587 SENSORFLEX 2-APPROVALS 3X1.5 6.9 View Colors 44.0 94.0 16
VERTEILERFLEX 2-APPROVALS
European Part-No. Description & No. Conductors
x cross-sec. mm2
Outer
Diameter
mm
Conductor
Colors
Copper Weight
kg/km
Weight
ca. kg/km
AWG
76352 VERTEILERFLEX 2-APPROVALS 4X0.34 8.7 View Colors 35.0 82.0 22
76353 VERTEILERFLEX 2-APPROVALS 6X0.34 9.1 View Colors 42.0 106.0 22
76354 VERTEILERFLEX 2-APPROVALS 8X0.34 9.1 View Colors 48.0 110.0 22
75614 VERTEILERFLEX 2-APPROVALS 8X0.34 10.0 View Colors 65.0 143.0 22
76355 VERTEILERFLEX 2-APPROVALS 12X0.34 10.3 View Colors 61.0 138.0 22
76356 VERTEILERFLEX 2-APPROVALS 16X0.34 10.5 View Colors 74.0 170.0 22
European Part-No. Jacket Color Jacket Material Conductor Colors Fine
Wire
High
Flex
Black
78284  Gray RAL 7001 PUR brown, blue, black - X
79907  Gray RAL 7001 PUR brown, blue, black, white - X
78286  Gray RAL 7001 PVC brown, blue, black, white, gray, pink X -
76345  Gray RAL 7001 PVC brown, blue, black X -
76347  Gray RAL 7001 PVC brown, blue, black, white - X
76349  Gray RAL 7001 PVC/PUR brown, blue, black, white, green-yellow - X
76348  Gray RAL 7001 PVC/PUR brown, blue, black, white, green-yellow X -
78287  Gray RAL 7001 PVC/PUR JZ, black with numbering + green-yellow - X
79850  Gray RAL 7001 PUR brown, blue, black, white, green-yellow - X
76351  Gray RAL 7001 PVC brown, blue, green-yellow X -
75642  Black RAL 9005 PUR JZ, black with numbering + green-yellow - X
73571  Gray RAL 7001 PVC JZ, black with numbering + green-yellow X -
78288  Gray RAL 7001 PUR JZ, black with numbering + green-yellow - X
74551  Gray RAL 7001 PUR JZ, black with numbering + green-yellow - X
78289  Gray RAL 7001 PVC/PUR JZ, black with numbering + green-yellow X -
78290  Gray RAL 7001 PVC black with number 1-2 X -
77352  Black RAL 9005 PVC black with number 1-2 X -
76350  Gray RAL 7001 PVC/PUR black with number 1-8, bn, bu, gn, ye X -
78291  Gray RAL 7001 PVC brown, blue X -
73587  Gray RAL 7001 PVC brown, blue, green-yellow X -

European Part-No. Jacket
Color
Jacket Material Conductor Colors Fine
Wire
High
Flex
76352  Gray RAL 7001 PVC/PUR brown, blue, green-yellow, white, green, yellow, gray - X
76353  Gray RAL 7001 PVC/PUR brown, blue, green-yellow, white, green, yellow, gray, pink, red - X
76354  Gray RAL 7001 PVC/PUR brown, blue, green-yellow, white, green, yellow, gray, pink, red, black, violet - X
75614  Gray RAL 7001 PUR white, red-blue, green, white-green, yellow, brown-green, gray-pink, brown, blue, green-yellow X -
76355  Gray RAL 7001 PVC/PUR brown, blue, green-yellow, green-white, white, red-blue, green, white-green, yellow, brown-green, gray, white-yellow, pink, yellow-brown, red - X
76356  Gray RAL 7001 PVC/PUR brown, blue, green-yellow, green-white, white, red-blue, green, white-green, yellow, brown-green, gray, white-yellow, pk, yellow-brown, red, white-gray, black, gray-brown, violet - X
Technical Data European
  • Special PVC or PUR jackert acc. to
    UL Style 2464 for PVC, or
    UL Style 20233 for PUR
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Nominal Voltage
    300/500 V
  • A.C. Test Voltage, 50 Hz
    To 0.25 mm² 1200 V
    From 0.34 mm² 2000 V
  • Minimum Bending Radius
    Sensorflex two approvals PVC
    Approx. 7.5 x cable Ø
    Sensorflex two approvals PUR
    Approx. 15 x cable Ø

Approvals
RoHSUL CSA CE
Cable Construction
  • PVC cables
    • Bare copper, fine wire conductors in acc. with DIN VDE 0295 cl. 5 or IEC 60228 cl. 5
    • PVC conductor insulation
    • Conductor colors see below
    • Special PVC
  • PUR cables
    • Bare copper, extra fine wire conductor to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
    • PVC conductor insulation
    • Conductor colors see below
    • PUR jacket
  • Part no. 79907, 75642, 79850
    • Constuction like SENSORFLEX, two approvals, except with polypropylene conductor insulation
Application
For decentralized installation and control technology.
These cables are used in connector systems for sensors and actuators.
In combination with injected circular connectors and installed sensor-actuator boxes, they constitute an important connecting element between the periphery and the PLC in production systems.
The assembled cables offer an attractive opportunity to reduce costs, not only in the field of automation technology, but also in the entire manufacturing industry.
While previously it was necessary to carry out time-consuming wiring of switchgear cabinets and machines, now field bus technology has made it possible to move the periphery interfaces from the switchgear cabinets to the machines and systems. Moving the I/O points to the system periphery enables significant reductions in installation costs.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC cables
    • Extensively oil resistant
      Chemical Resistance - see table Technical Information
    • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • PUR cables
    • Low adhesion, extremely abrasion resistant, resistant to hydrolysis and microbial attack
  • Special feature
    • The cables with the highly flexible stranded conductor, cl. 6, are suitable for drag chain applications
    • The types with PVC/PUR jacket material have a PVC inner jacket, with a PUR jacket applied over it by means of coextrusion
Note
  • All additional cross-sections, also with with UL/CSA approval are available upon request
Cable Accessories
  • Coming Soon!
