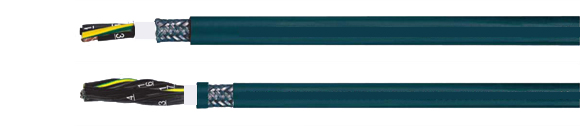

Control Cable: MULTISPEED® 500-C-TPE UL/CSA

Safety Against High Bending in Drag Chain Systems, Low Torsion, Halogen-Free, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls, , European   MULTISPEED 500-C-TPE UL/CSA, Safety Against High Bending in Drag Chain Systems, Low Torsion, Halogen-Free, EMC (EMI) preferred type, UL-CSA Approved

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
23914 MULTISPEED 500-TPE UL/CSA 2X0.5 6.4 30.0 85.0 20
23915 MULTISPEED 500-TPE UL/CSA 3G0.5 6.7 36.0 99.0 20
23916 MULTISPEED 500-TPE UL/CSA 4G0.5 7.3 42.0 107.0 20
23917 MULTISPEED 500-TPE UL/CSA 5G0.5 7.7 48.0 140.0 20
23918 MULTISPEED 500-TPE UL/CSA 7G0.5 11.3 64.0 176.0 20
23919 MULTISPEED 500-TPE UL/CSA 10G0.5 10.1 80.0 204.0 20
23920 MULTISPEED 500-TPE UL/CSA 12G0.5 12.4 105.0 261.0 20
23921 MULTISPEED 500-TPE UL/CSA 18G0.5 14.7 137.0 360.0 20
23922 MULTISPEED 500-TPE UL/CSA 25G0.5 17.1 320.0 530.0 20
23923 MULTISPEED 500-TPE UL/CSA 2X0.75 7.0 40.0 97.0 18
23924 MULTISPEED 500-TPE UL/CSA 3G0.75 7.4 48.0 110.0 18
23925 MULTISPEED 500-TPE UL/CSA 4G0.75 8.0 55.0 139.0 18
23926 MULTISPEED 500-C-TPE UL/CSA 5G0.75 8.5 66.0 160.0 18
23927 MULTISPEED 500-C-TPE UL/CSA 7G0.75 12.9 85.0 219.0 18
23928 MULTISPEED 500-C-TPE UL/CSA 12G0.75 14.4 135.0 307.0 18
23929 MULTISPEED 500-C-TPE UL/CSA 18G0.75 17.2 190.0 490.0 18
23930 MULTISPEED 500-C-TPE UL/CSA 25G0.75 19.9 275.0 640.0 18
23931 MULTISPEED 500-C-TPE UL/CSA 2X1 7.4 50.0 115.0 17
23932 MULTISPEED 500-C-TPE UL/CSA 3G1 7.7 59.0 131.0 17
23933 MULTISPEED 500-C-TPE UL/CSA 4G1 8.3 70.0 160.0 17
23934 MULTISPEED 500-C-TPE UL/CSA 5G1 9.1 84.0 195.0 17
23935 MULTISPEED 500-C-TPE UL/CSA 7G1 14.0 106.0 247.0 17
23936 MULTISPEED 500-C-TPE UL/CSA 12G1 15.0 174.0 411.0 17
23937 MULTISPEED 500-C-TPE UL/CSA 18G1 18.5 240.0 547.0 17
23938 MULTISPEED 500-C-TPE UL/CSA 25G1 21.4 332.0 754.0 17
23939 MULTISPEED 500-C-TPE UL/CSA 3G1.5 8.6 75.0 160.0 16
23940 MULTISPEED 500-C-TPE UL/CSA 4G1.5 9.4 90.0 194.0 16
23941 MULTISPEED 500-C-TPE UL/CSA 5G1.5 10.4 108.0 220.0 16
23942 MULTISPEED 500-C-TPE UL/CSA 7G1.5 16.0 157.0 294.0 16
23943 MULTISPEED 500-C-TPE UL/CSA 12G1.5 17.6 240.0 490.0 16
23944 MULTISPEED 500-C-TPE UL/CSA 18G1.5 21.3 355.0 704.0 16
23945 MULTISPEED 500-C-TPE UL/CSA 25G1.5 24.8 448.0 930.0 16
23946 MULTISPEED 500-C-TPE UL/CSA 4G2.5 11.3 134.0 260.0 14
23947 MULTISPEED 500-C-TPE UL/CSA 5G2.5 12.3 175.0 330.0 14
23948 MULTISPEED 500-C-TPE UL/CSA 7G2.5 14.8 229.0 406.0 14
23949 MULTISPEED 500-C-TPE UL/CSA 12G2.5 21.5 390.0 990.0 14
Technical Data
  • Special drag chain cables for high mechanical stress adapted to DIN VDE 0281 part 13 and E DIN VDE 0245 and UL Std. 758 AWM Style 21184
  • Temperature Range
    Flexing
    -30°C to +80°C (-22°F to +176°F)
    Fixed Installation
    -50°C to +80°C (-58°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
    UL 600 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 5x cable Ø
    Fixed Installation 3x cable Ø
  • Coupling Resistance
    Max. 250 Ohm x km
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSUL CSA CERoHS IPA
Cable Construction
  • Tinned copper, fine wire conductors with short pitch length
  • Special TPE conductor insulation
  • Black conductors with continuous white numbering
  • Green-yellow grounding (3 conductors and above)
  • Stranding:
    < 7 conductors: conductors stranded in a layer with optimal lay-length around a filler as per construction
    > 7 conductors: conductors stranded with optimal lay-length to bunch-construction with low torsion strength, optimal selected short lay-length around a filler
  • Special-TPE-O inner jacket, extruded as filler with pressure, natural color
  • Shield of copper braid tinned, coverage 85% max., with optimal pitch
  • Special-TPE-O outer jacket, extruded as filler with pressure
  • Jacket color: Ocean Blue (RAL 5020)
  • TPE: The selected tinned copper wire conductor and tinned copper wire braid permit the installation in aggressive environments as well as hydrogen sulfide, ammonia and sulfur dioxide.
Application

The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high and slow speeds. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed there, where the problems appear for the application in permanent stresses e.g. in energy drag chains, industry robotics, production lines, automatic control systems and permanent movable machinery parts for multi-shift operation. These cables are installed any place where high requirements for flexibility, abrasion, oxygen and chemical resistance are necessary.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.), we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details see selection table for drag chain cables, see lead text.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Microbe - resistant - TPE
  • Halogen-free
  • Low adhesion
  • High property of alternating bending strength
  • Highly resistant to mechanical strain
  • Long life durability due to low friction-resistance
  • High tensile strength, abrasion and impact resistance at low temperatures
  • Extremely high continuous bending loads
  • Tear resistance
  • High stability
  • Oil resistance
  • Better chemical resistance
  • UV and ozone resistance
  • Higher economical solution
  • Reduced Ø, results low weight of moving materials
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding x = without green-yellow earth conductor (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Please note the clean room qualification when ordering.
Cable Accessories
  • Coming Soon!
