European Internationally Approved Cable:
Command Cable UL (LiYCY)

Style 2516, 600 V, +105C/+221F, EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

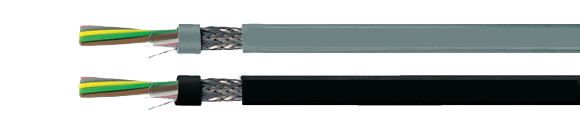

Command Cable UL LiYCY
European Part-No.
gray
European Part-No.
black
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
83350 65114 Command Cable UL (LiYCY) 2X2.08 9.1 92.1 180.0 14
83351 65115 Command Cable UL (LiYCY) 3X 2.08 9.6 140.6 220.0 14
83352 65116 Command Cable UL (LiYCY) 4X 2.08 10.4 162.4 270.0 14
83353 65117 Command Cable UL (LiYCY) 6X 2.08 12.1 200.0 380.0 14
83354 65118 Command Cable UL (LiYCY) 10X2.08 16.0 313.1 600.0 14
83355 65119 Command Cable UL (LiYCY) 12X 2.08 16.5 417.6 770.0 14
83356 65120 Command Cable UL (LiYCY) 16X 2.08 18.1 510.3 870.0 14
83357 65121 Command Cable UL (LiYCY) 18X 2.08 19.4 540.4 990.0 14
83358 65122 Command Cable UL (LiYCY) 24X 2.08 23.4 580.6 1300.0 14
83359 65123 Command Cable UL (LiYCY) 27X 2.08 23.9 604.2 1400.0 14
83360 65124 Command Cable UL (LiYCY) 30X 2.08 24.6 660.1 1610.0 14
83362 65125 Command Cable UL (LiYCY) 2X3.2 10.0 131.4 200.0 12
83363 65126 Command Cable UL (LiYCY) 3X 3.2 10.6 162.6 240.0 12
83364 65127 Command Cable UL (LiYCY) 4X 3.2 11.4 221.7 300.0 12
83365 65128 Command Cable UL (LiYCY) 6X 3.2 14.4 328.1 400.0 12
83366 65129 Command Cable UL (LiYCY) 10X 3.2 17.8 401.8 580.0 12
83367 65130 Command Cable UL (LiYCY) 12X 3.2 18.4 460.2 800.0 12
83368 65131 Command Cable UL (LiYCY) 16X 3.2 20.6 532.3 900.0 12
83369 65132 Command Cable UL (LiYCY) 18X 3.2 22.7 573.4 1000.0 12
83370 65133 Command Cable UL (LiYCY) 24X 3.2 26.1 626.8 1300.0 12
Technical Data European
  • Special PVC command cable, approved to UL-Style 2516 conductors according UL-Style 10012
  • Temperature Range
    Flexing
    -10C to +105C (+14F to +221F)
    Fixed Installation
    -20C to +105C (-4F to +221F)
  • Nominal Voltage 600 V
  • Test Voltage 2000 V
  • Breakdown Voltage
    Min. 4000 V
  • Minimum Bending Radius
    Flexing approx. 15x cable
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSUL CSA UR
Cable Construction
  • Tinned copper, fine wire conductors to ASTM-B 174, class J-K
    conductor make-up to
    2.08 mm = 41x0.254 mm
    3.20 mm = 65x0.254 mm
  • Special PVC conductor insulation class 43 to UL-Std. 1581 table 50.182 (+105C/+221F)
  • Color coded to DIN 47100 or international color code
  • Conductors stranded in layers with optimal lay-length
  • Separator-foil
  • Drain wire
  • Tinned copper wire braiding, approx. 85% coverage
  • Special PVC outer jacket class 43 to UL-Std. 1581 table 50.182 (+105C/+221F)
  • Outer jacket color
    Black (international color code)
    Gray (DIN 47100 / preferred type from stock)
Application

This cable type is suitable for use as a flexible connector cable in the fields of electronics, control and command technology as well as for measuring, signal and impulse transfer. Quick and cost favorable connections through cutting and clamping technics.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • PVC flame retardant according to UL VW-1
  • Conditionally resistant to: oils, solvents, acids, lye
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
