European Servo, Feedback & Motor Cable:

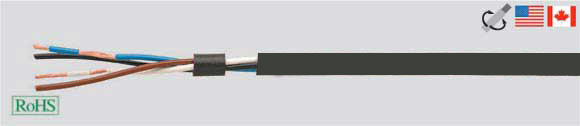

ROBOFLEX Recycle

Robot Cables

Hi-Tech Controls, Inc, European & Domestic cable

ROBOFLEX 2001/2001-C Robot cables, shielded, EMI preferred type, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
ROBOFLEX 2001
ROBOFLEX 2001-C
ROBOFLEX 2001-C
ROBOFLEX Recycle
European Part-No. Jacket Color Description & No. Conductors x cross-sec. mm2 Conductor Colors High Flex Outer Ø ca. mm Cop. Weight kg / km Weight ca. kg / km
701889 Black RAL 9005 ROBOFLEX Recycle 3x0.25 brown, blue, black X 4.4 7.2 22.0
701891 Yellow RAL 1021 ROBOFLEX Recycle 3x0.25 brown, blue, black X 4.4 7.2 22.0
701890 Gray RAL 7001 ROBOFLEX Recycle 3x0.25 brown, blue, black X 4.4 7.2 22.0
701894 Yellow RAL 1021 ROBOFLEX Recycle 4x0.25 brown, blue, black, white X 4.7 9.6 26.0
701892 Black RAL 9005 ROBOFLEX Recycle 4x0.25 brown, blue, black, white X 4.7 9.6 26.0
701893 Gray RAL 7001 ROBOFLEX Recycle 4x0.25 brown, blue, black, white X 4.7 9.6 26.0
701897 Yellow RAL 1021 ROBOFLEX Recycle 5x0.25 brown, blue, black, white, gray X 4.8 12.0 30.0
701895 Black RAL 9005 ROBOFLEX Recycle 5x0.25 brown, blue, black, white, gray X 4.8 12.0 30.0
701896 Gray RAL 7001 ROBOFLEX Recycle 5x0.25 brown, blue, black, white, gray X 4.8 12.0 30.0
702805 Yellow RAL 1021 ROBOFLEX Recycle 8x0.25 DIN 47100 X 6.0 19.2 55.0
702803 Black RAL 9005 ROBOFLEX Recycle 8x0.25 DIN 47100 X 6.0 19.2 55.0
702804 Gray RAL 7001 ROBOFLEX Recycle 8x0.25 DIN 47100 X 6.0 19.2 55.0
701900 Yellow RAL 1021 ROBOFLEX Recycle 3x0.34 brown, blue, black X 4.9 9.8 30.0
701898 Black RAL 9005 ROBOFLEX Recycle 3x0.34 brown, blue, black X 4.9 9.8 30.0
701899 Gray RAL 7001 ROBOFLEX Recycle 3x0.34 brown, blue, black X 4.9 9.8 30.0
701903 Yellow RAL 1021 ROBOFLEX Recycle 4x0.34 brown, blue, black, white X 5.2 13.1 43.0
701901 Black RAL 9005 ROBOFLEX Recycle 4x0.34 brown, blue, black, white X 5.2 13.1 43.0
701902 Gray RAL 7001 ROBOFLEX Recycle 4x0.34 brown, blue, black, white X 5.2 13.1 43.0
701906 Yellow RAL 1021 ROBOFLEX Recycle 5x0.34 brown, blue, black, white, gray X 5.9 16.4 54.0
701904 Black RAL 9005 ROBOFLEX Recycle 5x0.34 brown, blue, black, white, gray X 5.9 16.4 54.0
701905 Gray RAL 7001 ROBOFLEX Recycle 5x0.34 brown, blue, black, white, gray X 5.9 16.4 54.0
702808 Yellow RAL 1021 ROBOFLEX Recycle 8x0.34 DIN 47100 X 6.8 26.1 78.0
702806 Black RAL 9005 ROBOFLEX Recycle 8x0.34 DIN 47100 X 6.8 26.1 78.0
702807 Gray RAL 7001 ROBOFLEX Recycle 8x0.34 DIN 47100 X 6.8 26.1 78.0
701910 Yellow RAL 1021 ROBOFLEX Recycle 5G0.5 JZ, black with numbering + green-yellow X 6.0 24.0 65.0
701908 Black RAL 9005 ROBOFLEX Recycle 5G0.5 JZ, black with numbering + green-yellow X 6.0 24.0 65.0
701909 Gray RAL 7001 ROBOFLEX Recycle 5G0.5 JZ, black with numbering + green-yellow X 6.0 24.0 65.0
701913 Yellow RAL 1021 ROBOFLEX Recycle 5G0.75 JZ, black with numbering + green-yellow X 7.0 36.0 80.0
701911 Black RAL 9005 ROBOFLEX Recycle 5G0.75 JZ, black with numbering + green-yellow X 7.0 36.0 80.0
701912 Grey RAL 7001 ROBOFLEX Recycle 5G0.75 JZ, black with numbering + green-yellow X 7.0 36.0 80.0
to top up arrow
ROBOFLEX Recycle Screened, D-screen
European Part-No. Jacket Color Description & No. Conductors x cross-sec. mm2 Conductor Colors High Flex Outer Ø ca. mm Cop. Weight kg / km Weight ca. kg / km
703843 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 3x.25 brown, blue, black X 5.0 17.0 44.6
703845 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 3x.25 brown, blue, black X 5.0 17.0 44.6
703844 Gray RAL 7001 ROBOFLEX Recycle Screened, D-screen 3x.25 brown, blue, black X 5.0 17.0 44.6
703848 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 4x.25 brown, blue, black, white X 5.2 19.4 46.3
703846 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 4x.25 brown, blue, black, white X 5.2 19.4 46.3
703847 Gray RAL 7001 ROBOFLEX Recycle Screened, D-screen 4x.25 brown, blue, black, white X 5.2 19.4 46.3
703851 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 5x.25 brown, blue, black, white, gray X 5.3 22.5 50.0
703849 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 5x.25 brown, blue, black, white, gray X 5.3 22.5 50.0
703850 Gray RAL 7001 ROBOFLEX Recycle Screened, D-screen 5x.25 brown, blue, black, white, gray X 5.3 22.5 50.0
703869 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 8x.25 DIN 47100 X 6.8 34.1 53.5
703867 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 8x.25 DIN 47100 X 6.8 34.1 53.5
703868 Gray RAL 7001 ROBOFLEX Recycle Screened, D-screen 8x.25 DIN 47100 X 6.8 34.1 53.5
703854 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 3x.34 brown, blue, black X 5.2 19.6 48.2
703852 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 3x.34 brown, blue, black X 5.2 19.6 48.2
703853 Gray RAL 7001 ROBOFLEX Recycle Screened, D-screen 3x.34 brown, blue, black X 5.2 19.6 48.2
703857 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 4x.34 brown, blue, black, white X 5.4 23.7 53.0
703855 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 4x.34 brown, blue, black, white X 5.4 23.7 53.0
703856 Gray RAL 7001 ROBOFLEX Recycle Screened, D-screen 4x.34 brown, blue, black, white X 5.4 23.7 53.0
703860 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 5x.34 brown, blue, black, white, gray X 5.8 28.7 61.9
703858 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 5x.34 brown, blue, black, white, gray X 5.8 28.7 61.9
703859 Gray RAL 7001 ROBOFLEX Recycle Screened, D-screen 5x.34 brown, blue, black, white, gray X 5.8 28.7 61.9
703872 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 8x.34 DIN 47100 X 7.3 58.0 85.0
703870 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 8x.34 DIN 47100 X 7.3 58.0 85.0
703871 Gray RAL 7001 ROBOFLEX Recycle Screened, D-screen 8x.34 DIN 47100 X 7.3 58.0 85.0
703863 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 5x.5 JZ, black with numbering + green-yellow X 7.0 52.0 76.0
703861 Black RAL 9005 ROBOFLEX Recycle Screened, D-screen 5x.5 JZ, black with numbering + green-yellow X 7.0 52.0 76.0
703866 Yellow RAL 1021 ROBOFLEX Recycle Screened, D-screen 5x0.75 JZ, black with numbering + green-yellow X 7.6 70.0 93.0
703864 Black RAL 9005 ROBOFLEX Recycle Screened, D-Screen 5x0.75 JZ, black with numbering + green-yellow X 7.6 70.0 93.0
703865 Gray RAL 7001 ROBOFLEX Recycle Screened, D-Screen 5x0.75 JZ, black with numbering + green-yellow X 7.6 70.0 93.0
to top up arrow
ROBOFLEX Recycle Screened, C-screen
European Part-No. Jacket Color Description & No. Conductors x cross-sec. mm2 Conductor Colors High Flex Outer Ø ca. mm Cop. Weight kg / km Weight ca. kg / km
703873 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 3x.25 brown, blue, black X 5.5 17.0 44.6
703875 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 3x.25 brown, blue, black X 5.5 17.0 44.6
703874 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 3x.25 brown, blue, black X 5.5 17.0 44.6
703878 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 4x.25 brown, blue, black, white X 5.2 19.4 46.3
703876 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 4x.25 brown, blue, black, white X 5.2 19.4 46.3
703877 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 4x.25 brown, blue, black, white X 5.2 19.4 46.3
703881 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 5x.25 brown, blue, black, white, gray X 5.3 22.5 50.0
703879 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 5x.25 brown, blue, black, white, gray X 5.3 22.5 50.0
703880 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 5x.25 brown, blue, black, white, gray X 5.3 22.5 50.0
703899 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 8x.25 DIN 47100 X 6.8 34.1 53.5
703897 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 8x.25 DIN 47100 X 6.8 34.1 53.5
703898 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 8x.25 DIN 47100 X 6.8 34.1 53.5
703884 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 3x.34 brown, blue, black X 5.2 19.6 48.2
703882 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 3x.34 brown, blue, black X 5.2 19.6 48.2
703883 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 3x.34 brown, blue, black X 5.2 19.6 48.2
703887 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 4x.34 brown, blue, black, white X 5.4 23.7 53.0
703885 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 4x.34 brown, blue, black, white X 5.4 23.7 53.0
703886 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 4x.34 brown, blue, black, white X 5.4 23.7 53.0
703890 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 5x.34 brown, blue, black, white, gray X 5.8 28.7 61.9
703888 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 5x.34 brown, blue, black, white, gray X 5.8 28.7 61.9
703889 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 5x.34 brown, blue, black, white, gray X 5.8 28.7 61.9
703902 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 8x.34 DIN 47100 X 7.3 58.0 85.0
703900 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 8x.34 DIN 47100 X 7.3 58.0 85.0
703901 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 8x.34 DIN 47100 X 7.3 58.0 85.0
703893 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 5x.5 JZ, black with numbering + green-yellow X 7.0 52.0 76.0
703891 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 5x.5 JZ, black with numbering + green-yellow X 7.0 52.0 76.0
703892 Gray RAL 7001 ROBOFLEX Recycle Screened, C-screen 5x.5 JZ, black with numbering + green-yellow X 7.0 52.0 76.0
703896 Yellow RAL 1021 ROBOFLEX Recycle Screened, C-screen 5x0.75 JZ, black with numbering + green-yellow X 7.6 70.0 93.0
703894 Black RAL 9005 ROBOFLEX Recycle Screened, C-screen 5x0.75 JZ, black with numbering + green-yellow X 7.6 70.0 93.0
703895 Grey RAL 7001 ROBOFLEX Recycle Screened. C-screen 5x0.75 JZ, black with numbering + green-yellow X 7.6 70.0 93.0
Technical Data European
  • Approval:
    UL/cUL approved
  • Production
    In accordance with VDE Standards
  • Temperature Range
    Fixed Installation
    -40°C to +120°C (-40°F to +248°F)
    Flexible
    -30°C to +120°C (-22°F to +248°F)
  • Nominal Voltage
    300 V
  • Test Voltage
    2000 V
  • Minimum Bending Radius
    Approx. 7.5x cable Ø (for flexible installation)
  • Traversing Speed:
    Max. 3.3 m/s for 5 m of horizontal traverse path length
  • Acceleration:
    Max 5 m/s2
  • Flexing and Torsion Cycles:
    Min. 10 million
  • Torsional Stress:
    +/- 360°/m
Approvals
RoHSUL CSA CE VDE
Cable Construction
  • Bare copper litz wire, 42 x 0.10 mm
  • Conductor insulation TPE
  • Conductors stranded in layers
  • C: Shielded versions for robotic applications
  • D: Shielded applications for track / drag chain
  • Jacket, special mix
  • Weld splatter resistant, dull, low adhesion, flame retardant and self-extinguishing according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Jacket color: see tables
  • Outer diameter: 4.9+/-0.2 mm
Application

The cables with this new jacket material meet all requirements for very large mechanical stresses for abrasion, tear resistance, torsion, flexing, flexibility and oil resistance. Using for automation technology, plant and machine construction, fixture construction for handling devices, welding devices and welding tongs, assembly and handling devices, machining production, welding robots and tool machines, blast furnaces and rolling mills.
The completely new feature of this cable is the weld splatter resistance without the otherwise usual and required cross-linking process.

  • Our newly developed non-cross-linked thermoplastic elastomer is fully recyclable.
  • In contrast to this, the usual, cross-linked, thermoplastic elastomers cannot be recycled and put a not insignificant stress on our environment.
  • This cable is particularly interesting for customers who have an environment management system according to DIN EN ISO14001 and thus place a great deal of importance on the use of recyclable materials.
  • A significantly longer service life than that of existing cables on the market, because it can be used in highly flexible applications, for example on robots (torsion) and in drag chains (dynamic load).


CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Very good resistance to oil
  • As per VDE 0472 part 811-2-1
  • Good resistance to acids, alkalis and solvents
  • Not cross-linked
  • Weld splatter resistant
  • Recyclable
  • Halogen-Free
  • Silicone and Cadmium-Free
  • Free of substances harmful to paint adhesion substances
  • Very high mechanical load capacity
  • Abrasion resistant
  • Wear-Resistant
  • Highly Flexible
  • UV-Resistant
Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
