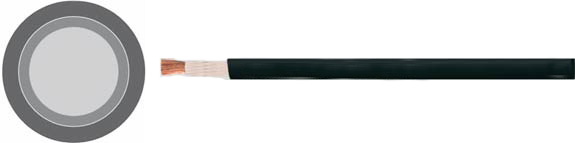

Special Cables: TOPFLEX® 302 / TOPFLEX® 302-UL

Very High Flexibility, PVC Single Conductor, Double Insulated, 0.6/1 kV
Special Cables, TOPFLEX® 302 / 302-UL Very high flexible, PVC single conductor, Double insulated, 0.6/1 kV, Hi-Tech Controls, European

TOPFLEX® 302 TOPFLEX® 302
TOPFLEX® 302-UL TOPFLEX® 302-UL

TOPFLEX® 302
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
72946  TOPFLEX© 302 1X1.5 4.0 14.4 25.0 16
73924  TOPFLEX© 302 1X2.5 4.5 24.0 42.0 14
72950  TOPFLEX© 302 1X4 5.6 38.4 58.0 12
72945  TOPFLEX© 302 1X6 6.1 57.6 85.0 10
75450  TOPFLEX© 302 1X10 8.0 96.0 130.0 8
72947  TOPFLEX© 302 1X16 9.8 153.6 190.0 6
75451  TOPFLEX© 302 1X25 11.8 240.0 280.0 4
75452  TOPFLEX© 302 1X35 12.9 336.0 400.0 2
75453  TOPFLEX© 302 1X50 14.6 480.0 520.0 1
72944  TOPFLEX© 302 1X70 17.5 672.0 720.0 2/0
75454  TOPFLEX© 302 1X95 20.2 912.0 1050.0 3/0
75455  TOPFLEX© 302 1X120 21.6 1152.0 1220.0 4/0
75456  TOPFLEX© 302 1X150 23.5 1440.0 1500.0 300 kcmil
75457  TOPFLEX© 302 1X185 25.7 1776.0 1940.0 350 kcmil
75458  TOPFLEX© 302 1X240 29.5 2304.0 2675.0 500 kcmil

TOPFLEX® 302-UL
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
700231  TOPFLEX© 302-UL 1X1.5 5.2 14.4 25.0 16
700232  TOPFLEX© 302-UL 1X2.5 6.4 24.0 42.0 14
700233  TOPFLEX© 302-UL 1X4 7.0 38.4 58.0 12
700234  TOPFLEX© 302-UL 1X6 7.5 57.6 85.0 10
701351  TOPFLEX© 302-UL 1X10 9.1 96.0 130.0 8
700114  TOPFLEX© 302-UL 1X16 10.8 153.6 190.0 6
701352  TOPFLEX© 302-UL 1X25 13.1 240.0 280.0 4
701353  TOPFLEX© 302-UL 1X35 14.1 336.0 400.0 2
701354  TOPFLEX© 302-UL 1X50 15.8 480.0 520.0 1
700235  TOPFLEX© 302-UL 1X70 19.0 672.0 720.0 2/0
701355  TOPFLEX© 302-UL 1X95 21.5 912.0 1050.0 3/0
701356  TOPFLEX© 302-UL 1X120 23.2 1152.0 1220.0 4/0
701357  TOPFLEX© 302-UL 1X150 25.2 1440.0 1500.0 300 kcmil
701358  TOPFLEX© 302-UL 1X185 27.0 1776.0 1940.0 350 kcmil
701359  TOPFLEX© 302-UL 1X240 31.5 2304.0 2675.0 500 kcmil
Technical Data European
TOPFLEX 302
  • Special PVC single-conductor cable with double insulation, flexible at low temperatures
  • Temperature Range
    Flexing
    -15°C to +80°C (+5°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 600/1000 V
  • A.C. Test Voltage, 50 Hz
    3000 V
  • Insulation Resistance
    Min. 20 MOhm/km
  • Minimum Bending Radius
    For flexible installation
    Approx. 5x cable Ø
TOPFLEX 302-UL
  • Technical data like TOPFLEX 302, but with additional UL approval Style 10107
  • Nominal Voltage
    UL 1000 V
Approvals
RoHSUL CE
Cable Construction
  • Bare copper, extra fine wire conductor to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
  • PVC insulation flexible at low temperatures, natural color
  • PVC jacket compound TM2 flexible at low temperatures
  • Jacket color black, UV-resistant
Application
These cables are specially designed for use as connecting cables on sliding contacts for current collectors, and also for use in energy supply chains, automatic handling devices, robots, machine tools, machining and processing equipment, and nearly any area requiring flexible used and free motion.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Jacket UV-resistant
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Chemical resistance see table Technical Information
  • The cable is permissible for over voltage category II
Note
  • The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Cable Accessories
  • Coming Soon!
