Special Cables: TOPFLEX® 301 / TOPFLEX® 301-C

Unshielded - Double Insulated / Shielded, High Flexible PUR Single Conductor, 0.6/1 kV, For Drag Chain Application (Track Cable)
Special Cables, TOPFLEX® 301 / 301-C Unshielded - Double insulated / Shielded, High flexible PUR single conductor, 0.6/1 kV, For drag chain application (track cable), Hi-Tech Controls, European

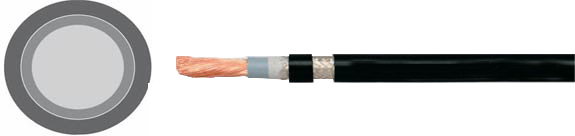

TOPFLEX® 300 Black TOPFLEX® 301 Black
TOPFLEX® 300 Red TOPFLEX® 301-C Black, Shielded
TOPFLEX® 300 Green-Yellow TOPFLEX® 301 Green-Yellow


TOPFLEX® 301 Black, Unshielded
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
75375  TOPFLEX© 301 Black 1X6 7.1 58.0 85.0 10
75376  TOPFLEX© 301 Black 1X10 8.8 96.0 130.0 8
75377  TOPFLEX© 301 Black 1X16 10.5 154.0 190.0 6
75378  TOPFLEX© 301 Black 1X25 11.2 240.0 280.0 4
75379  TOPFLEX© 301 Black 1X35 13.5 336.0 400.0 2
75380  TOPFLEX© 301 Black 1X50 15.8 480.0 520.0 1
75381  TOPFLEX© 301 Black 1X70 18.0 672.0 720.0 2/0
75382  TOPFLEX© 301 Black 1X95 20.4 912.0 1050.0 3/0
75383  TOPFLEX© 301 Black 1X120 22.2 1152.0 1220.0 4/0
75384  TOPFLEX© 301 Black 1X150 25.0 1440.0 1500.0 300 kcmil
75385  TOPFLEX© 301 Black 1X185 28.0 1776.0 1940.0 350 kcmil
75386  TOPFLEX© 301 Black 1X240 32.5 2304.0 2645.0 500 kcmil

TOPFLEX® 301 Green-Yellow, Unshielded
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
75387  TOPFLEX© 301 Green-Yellow 1X6 7.1 58.0 85.0 10
75388  TOPFLEX© 301 Green-Yellow 1X10 8.8 96.0 130.0 8
75389  TOPFLEX© 301 Green-Yellow 1X16 10.5 154.0 190.0 6
75390  TOPFLEX© 301 Green-Yellow 1X25 11.2 240.0 280.0 4
75391  TOPFLEX© 301 Green-Yellow 1X35 13.5 336.0 400.0 2
75392  TOPFLEX© 301 Green-Yellow 1X50 15.8 480.0 520.0 1
75393  TOPFLEX© 301 Green-Yellow 1X70 18.0 672.0 720.0 2/0
75394  TOPFLEX© 301 Green-Yellow 1X95 20.4 912.0 1050.0 3/0
75395  TOPFLEX© 301 Green-Yellow 1X120 22.2 1152.0 1220.0 4/0
75396  TOPFLEX© 301 Green-Yellow 1X150 25.0 1440.0 1500.0 300 kcmil
75397  TOPFLEX© 301 Green-Yellow 1X185 28.0 1776.0 1940.0 350 kcmil
75398  TOPFLEX© 301 Green-Yellow 1X240 32.5 2304.0 2645.0 500 kcmil
to top up arrow
TOPFLEX® 301-C, Shielded
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
75399  TOPFLEX© 301-C Black 1X6 7.8 95.0 144.0 10
75400  TOPFLEX© 301-C Black 1X10 9.5 124.0 170.0 8
75401  TOPFLEX© 301-C Black 1X16 10.8 186.0 220.0 6
75402  TOPFLEX© 301-C Black 1X25 12.2 278.0 340.0 4
75403  TOPFLEX© 301-C Black 1X35 13.7 384.0 460.0 2
75404  TOPFLEX© 301-C Black 1X50 15.4 530.0 580.0 1
75405  TOPFLEX© 301-C Black 1X70 17.6 753.0 820.0 2/0
75406  TOPFLEX© 301-C Black 1X95 21.7 1006.0 1200.0 3/0
75407  TOPFLEX© 301-C Black 1X120 22.4 1257.0 1350.0 4/0
75408  TOPFLEX© 301-C Black 1X150 24.3 1562.0 1680.0 300 kcmil
75409  TOPFLEX© 301-C Black 1X185 26.5 1895.0 2100.0 350 kcmil
75410  TOPFLEX© 301-C Black 1X240 30.3 2704.0 3100.0 500 kcmil
Technical Data European
TOPFLEX® 301 (unshielded)
  • Special PUR single-conductor cable acc. to UL AWM Style 10553
  • Temperature Range
    Flexing
    -15°C to +80°C (+5°F to +176°F)
  • Nominal Voltage
    Acc. to VDE U0/U 600/1000 V
    Acc. to UL 1000 V
  • A.C. Test Voltage 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Approx. 7.5 cable Ø
TOPFLEX® 301C (shielded)
  • Tech. data as per TOPFLEX® 301
  • Coupling Resistance
    Max. 250 Ohm/km

Approvals
RoHSUL CE VDE
Cable Construction
TOPFLEX® 301 (Unshielded)
  • Bare copper, extra fine wire conductor to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
  • PVC conductor insulation flexible at low temperatures, gray
  • PUR jacket
  • Color black or green-yellow
TOPFLEX® 301C (Shielded)
  • Construction as per TOPFLEX 301, but additionally
  • Fleece wrapping between shield and jacket
  • Tinned copper braided shielding, approx. 85% coverage
  • Jacket color black
Application
TOPFLEX® 301 (Unshielded)
These cables are specially designed for use in energy supply chains, automated handling equipment, robots, machine tools, processing and manufacturing machinery.
TOPFLEX® 301C (Shielded)
Applications as described above, additionally optimal compliance with electromagnetic compatibility (EMI) requirements on account of the approx. 85% coverage by the braided shielding.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PUR outer jacket: low adhesion, flame retardant, extremely abrasion resistant, resistant to UV, oil, hydrolysis and microbial attack
  • Optimized insulation materials ensure resistance to oils (including mineral oils), greases, coolants, hydraulic fluids as well as many alkalis and solvents
  • The optimized external diameter and the reduced weight facilitate use in multi-shift operation with extreme alternating bending stress cycles
  • Thanks to its excellent mechanical characteristics, the wear-resistant, notch-resistant, flame-retardant PUR jacket provides high functional reliability over long periods
Note
  • The product is conformed with the EC Low-Voltage Directive 2006/95/EG
Cable Accessories
  • Coming Soon!
