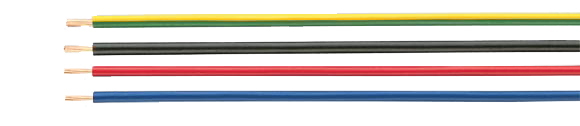

European Internationally Approved Cable (Hook-Up Wire): PVC Single Conductor

To CEI 20-22 II

Hi-Tech Controls, Inc, European & Domestic cable

PVC Single Conductor to CEI 20-22 || , RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
Cross Section (mm2) Outer
Dia.
mm
Copper Weight
kg/km
Weight kg/km AWG European Part-No.
black green-yellow blue brown red white dark blue no color
RAL 9005 - RAL 5015 RAL 8003 RAL 3000 RAL 1013 RAL 5010 -
0.35 1.5 2.5 3.6 - 29600 29601 29602 29603 29604 29605 29606 29607
0.5 2.6 4.8 6.0 20 29608 29609 29610 29611 29612 29613 29614 29615
0.75 2.8 7.2 10.0 18 29616 29617 29618 29619 29620 29621 29622 29623
1.0 3.2 9.6 16.0 17 29624 29625 29626 29627 29628 29629 29630 29631
1.5 3.5 14.4 21.0 16 29632 29633 29634 29635 29636 29637 29638 29639
2.5 4.2 24.0 32.0 14 29640 29641 29642 29643 29644 29645 29646 29647
4.0 4.6 38.0 48.0 12 29648 29649 29650 29651 29652 29653 29654 29655
6.0 6.3 58.0 69.0 10 29656 29657 29658 29659 29660 29661 29662 29663
10.0 7.6 96.0 117.0 8 29664 29665 29666 29667 29668 29669 29670 29671
16.0 8.8 154.0 180.0 6 29672 29673 29674 29675 29676 29677 29678 29679
25.0 11.0 240.0 266.0 4 29680 29681 29682 29683 29684 29685 29686 29687
35.0 12.5 336.0 366.0 2 29688 29689 29690 29691 29692 29693 29694 29695
50.0 14.5 480.0 515.0 1 29696 29697 29698 29699 29700 29701 29702 29703
70.0 16.5 672.0 741.0 2/0 29704 29705 29706 29707 29708 29709 29710 29711
95.0 18.5 912.0 950.0 3/0 29712 29713 29714 29715 29716 29717 29718 29719
120.0 21.0 1152.0 1230.0 4/0 29720 29721 29722 29723 29724 29725 29726 29727
150.0 23.0 1440.0 1500.0 300 kcmil 29728 29729 29730 29731 29732 29733 29734 29735
Technical Data European
  • PVC-Single Conductors as per Italian standard CEI 20-22 II
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Test Voltage 2500 V
  • Nominal Voltage
    U0/U 450/750 V = 1 mm² and above
    U0/U 300/500 V = 0.5 and 0.75 mm²
    U0/U 300/300 V = 0.35 mm²
  • Minimum Bending Radius
    4-6x cable Ø
Approvals
RoHS CEI
Cable Construction
  • Bare fine wire stranded copper conductor to CEI 20-29 cl. 5
  • PVC-conductor insulation R 2 up to CEI 20 II, cap. VI cl. 3
Application

As hook up wire, control cabinet building, in cable assembly manufacturing as well as in electronic applications. Hook-up wire (hookup wire) is a single conductive wire.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG. Hook-up wire is a single conductive wire.

Properties
  • Low smoke
  • Resistant to oil, solvents, acids, lye
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
