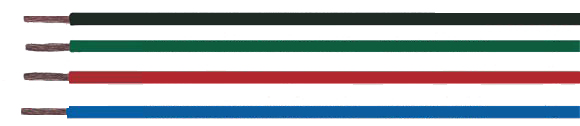

European Internationally Approved Cable (Hook-Up Wire): THREENORM

PVC Single Conductors, UL Style 1011 and CSA 600 V

Sealcon, Inc, European & Domestic cable

THREENORM PVC single conductors, UL-Style 1011 and CSA 600V, RoHS Approved, RoHS Compliant, European  , Sealcon
H05 V-K
H05 V-K
Cross-Sec. mm2 / AWG Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
black blue brown red white gray violet pink
RAL 9005 RAL 5015 RAL 8003 RAL 3000 RAL 1013 RAL 7000 RAL 4005 RAL 3015
0.5 / 20 2.5 4.8 63815 63817 63818 63819 63820 63821 63822 63824
0.75 /19 2.65 7.2 63831 63833 63834 63835 63836 63837 63838 63840
1.0 / 17 2.8 9.6 63847 63849 63850 63851 63852 63853 63854 63856
Cross-Sec. mm2/ AWG Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
orange green yellow green-yellow 2-colored dark blue transp. no color
RAL 2003 RAL 6018 RAL 1021 - - RAL 5010 - -
0.5 / 20 2.5 4.8 63828 63825 63823 63816 63830 63827 63826 63829
0.75 /19 2.6 7.2 63844 63841 63839 63832 63846 63843 63842 63845
1.0 / 18 2.8 9.6 63860 63857 63855 63848 63862 63859 63858 63861
H07 V-K
Cross-Sec. mm2/ AWG Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
black blue brown red white gray violet pink
RAL 9005 RAL 5015 RAL 8003 RAL 3000 RAL 1013 RAL 7000 RAL 4005 RAL 3015
1.5 / 16 3.05 14.4 63863 63865 83866 63867 63868 63869 63870 63872
2.5 / 14 3.6 24.0 63879 63881 63882 63883 63884 63885 63886 63888
4.0 / 12 4.1 38.0 63895 63897 63898 63899 63900 63901 63902 63904
6.0 / 10 4.8 58.0 63911 63913 63914 63915 63916 63917 63918 63920
10.0 / 8 6.4 96.0 63927 63929 63930 63931 63932 63933 63934 63936
16.0 / 6 8.1 154.0 63943 63945 63946 63947 63948 63949 63950 63952
25.0 / 4 9.6 240.0 63959 63961 63962 63963 63964 63965 63966 63968
35.0 / 2 10.8 336.0 63975 63977 63978 63979 63980 63981 63982 63984
50.0 / 1 13.6 480.0 63991 63993 63994 63995 63996 63997 63998 64000
70.0 / 2/0 15.2 672.0 64007 64009 64010 64011 64012 64013 64014 64016
95.0 / 3/0 16.8 912.0 64023 64025 64026 64027 64028 64029 64030 64032
120.0 / 4/0 19.5 1152.0 64039 64041 64042 64043 64044 64045 64046 64048
150.0 /
300 kcmil
22.2 1440.0 64055 64057 64058 64059 64060 64061 64062 64064
Cross-Sec. mm2/ AWG Outer
Dia.
mm
Copper Weight
kg/km
European Part-No.
orange green yellow green-yellow 2-colored dark blue transp. no color
RAL 2003 RAL 6018 RAL 1021 - - RAL 5010 - -
1.5 / 16 3.05 14.4 63876 63873 63871 63864 63878 63875 63874 63877
2.5 / 14 3.6 24.0 63892 63889 63887 63880 63894 63891 63890 63893
4.0 / 12 4.1 38.0 63908 63905 63903 63896 63910 63907 63906 63909
6.0 / 10 4.8 58.0 63924 63921 63919 63912 63926 63923 63922 63925
10.0 / 8 6.4 96.0 63940 63937 63935 63928 63942 63939 63938 63941
16.0 / 6 8.1 154.0 63956 63953 63951 63944 63958 63955 63954 63957
25.0 / 4 9.6 240.0 63972 63969 63967 63960 63974 63971 63970 93673
35.0 / 2 10.8 336.0 63988 63985 63983 63976 63990 63987 63986 63989
50.0 / 1 13.6 480.0 64004 64001 63999 63992 64006 64003 64002 64005
70.0 / 2/0 15.2 672.0 64020 64017 64015 64008 64022 64019 64018 64021
95.0 / 3/0 16.8 912.0 64036 64033 64031 64024 64038 64035 64034 64037
120.0 / 4/0 19.5 1152.0 64052 64049 64047 64040 64054 64051 64050 64053
150.0 /
300 kcmil
22.2 1440.0 64068 64065 64063 64056 64070 64067 64066 64049
Technical Data European
  • PVC single conductors to DIN VDE 0281 part 3, HD 21.3 S3 UL Style 1011 and CSA, CSA-AWM |/A/B
  • Temperature Range
    H05 V-K / H07 V-K
    Flexible
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -10°C to +70°C (+14°F to +158°F)
    UL/CSA +80°C/+176°F
  • Nominal Voltage
    H05 V-K U0/U 300/500 V
    H05 V-K U0/U 450/750 V
    UL/CSA 600 V AC
  • Test Voltage
    H05 V-K / H07 V-K 2000 V
  • Spark Test
    AWG 20: 5 kV
    > AWG 20: 6 kV
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    For permanent bending
    Ca. 10-15 x conductor Ø
Approvals
RoHSUL CSA CE
Cable Construction
  • Bare copper fine wire stranded to DIN VDE 0295 cl.5, BS 6360 cl.5, HD 383 and IEC 60228 cl.5
  • UL Subject 758 Section G resp. ASTM B 174
  • PVC conductor insulation T|1 to DIN VDE 0281 part 1 and UL-Std. 1581, class 43, CSA-C 22.2 No. 210 Tab. 12 class H
  • Conductor colors to DIN VDE 0293
Application

Three norms approved connecting jumper wire primarily designed for export, used in machine tools. This wire is used for internal wiring of switchboards and electrical equipment. The approbation of HAR-UL-CSA AWM make an economical store keeping and simplification of part lists possible. Hook-up wire (hookup wire) is a single conductive wire.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B) UL-VW1 CSA FT1
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • Tinned conductor on request
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm2.
  • The cross-sections 0.5 mm2, 0.75 mm2 and 1.0 mm2 are acc. to H05 V-K, the cross-sections 1.5 to 120 mm2 acc. to H07 V-K
Cable Accessories
  • Coming Soon!
