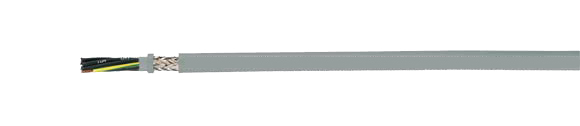

Control Cable: JZ-602-C-PUR

+80�C/+176�F, 600 V, Shielded, Two Approvals Control Cable, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls,  - JZ-602-C-PUR, EMC (EMI Preferred type), Shielded Two Approvals: UL, CSA Approved, 80 Degrees Celsius, 600V, Control Cable
AWG Selection
20
20
17
17
16
16
14
14
12
12
10
10
8
8
6
6
4
4
2
2
1
1
2/0
2/0
3/0
3/0
4/0
4/0
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
12550 OZ-602-C-PUR 2X0.5 gray  7.7 41.0 93.0 20
12551 JZ-602-C-PUR 3G0.5 gray 8.0 45.0 124.0 20
12552 JZ-602-C-PUR 4G0.5 gray 8.6 54.0 133.0 20
12553 JZ-602-C-PUR 5G0.5 gray 9.2 66.0 153.0 20
12554 JZ-602-C-PUR 7G0.5 gray 10.5 79.0 191.0 20
12555 JZ-602-C-PUR 9G0.5 gray 12.3 94.0 243.0 20
12556 JZ-602-C-PUR 12G0.5 gray 13.0 137.0 322.0 20
12557 JZ-602-C-PUR 18G0.5 gray 15.6 156.0 374.0 20
12558 JZ-602-C-PUR 25G0.5 gray 18.2 250.0 436.0 20
12559 JZ-602-C-PUR 34G0.5 gray 20.1 316.0 560.0 20
12560 JZ-602-C-PUR 41G0.5 gray 22.4 348.0 663.0 20
12561 OZ-602-C-PUR 2X1 gray  8.1 54.0 107.0 17
12562 JZ-602-C-PUR 3G1 gray 8.4 64.0 130.0 17
12563 JZ-602-C-PUR 4G1 gray 9.1 76.0 155.0 17
12564 JZ-602-C-PUR 5G1 gray 10.0 89.0 181.0 17
12565 JZ-602-C-PUR 7G1 gray 11.3 114.0 209.0 17
12566 JZ-602-C-PUR 9G1 gray 13.3 144.0 321.0 17
12567 JZ-602-C-PUR 12G1 gray 13.8 186.0 341.0 17
12568 JZ-602-C-PUR 18G1 gray 16.2 284.0 473.0 17
12569 JZ-602-C-PUR 25G1 gray 19.5 387.0 650.0 17
12570 JZ-602-C-PUR 34G1 gray 22.5 500.0 781.0 17
12571 JZ-602-C-PUR 41G1 gray 24.2 578.0 892.0 17
12572 OZ-602-C-PUR 2X1.5 gray  8.7 64.0 136.0 16
12573 JZ-602-C-PUR 3G1.5 gray 9.2 82.0 165.0 16
12574 JZ-602-C-PUR 4G1.5 gray 10.0 99.0 192.0 16
12575 JZ-602-C-PUR 5G1.5 gray 10.8 123.0 224.0 16
12576 JZ-602-C-PUR 7G1.5 gray 12.9 148.0 273.0 16
12577 JZ-602-C-PUR 9G1.5 gray 14.8 187.0

340.0

16
12578 JZ-602-C-PUR 12G1.5 gray 15.6 274.0 461.0 16
12579 JZ-602-C-PUR 18G1.5 gray 18.3 386.0 674.0 16
12580 JZ-602-C-PUR 25G1.5 gray 22.5 531.0 950.0 16
12581 JZ-602-C-PUR 34G1.5 gray 25.1 671.0 1203.0 16
12582 JZ-602-C-PUR 41G1.5 gray 27.3 840.0 1588.0 16
12583 OZ-602-C-PUR 2X2.5 gray  10.3 110.0 173.0 14
12584 JZ-602-C-PUR 3G2.5 gray 10.8 148.0 220.0 14
12585 JZ-602-C-PUR 4G2.5 gray 11.8 169.0 270.0 14
12586 JZ-602-C-PUR 5G2.5 gray 13.2 220.0 329.0 14
12587 JZ-602-C-PUR 7G2.5 gray 15.6 284.0 428.0 14
12588 JZ-602-C-PUR 9G2.5 gray 18.1 349.0 580.0 14
12589 JZ-602-C-PUR 12G2.5 gray 19.2 470.0 761.0 14
12590 JZ-602-C-PUR 18G2.5 gray 23.0 572.0 1140.0 14
12591 JZ-602-C-PUR 25G2.5 gray 28.3 740.0 1551.0 14
12592 OZ-602-C-PUR 2X4 gray  12.5 124.0 209.0 12
12593 JZ-602-C-PUR 3G4 gray 13.1 178.0 310.0 12
12594 JZ-602-C-PUR 4G4 gray 14.5 234.0 456.0 12
12595 JZ-602-C-PUR 5G4 gray 15.8 284.0 532.0 12
12596 JZ-602-C-PUR 7G4 gray 19.0 321.0 737.0 12
12597 OZ-602-C-PUR 2X6 gray  14.2 176.0 318.0 10
12598 JZ-602-C-PUR 3G6 gray 15.2 245.0 411.0 10
12599 JZ-602-C-PUR 4G6 gray 16.6 316.0 572.0 10
12600 JZ-602-C-PUR 5G6 gray 18.4 442.0 732.0 10
12601 JZ-602-C-PUR 7G6 gray 22.2 530.0 961.0 10
12602 JZ-602-C-PUR 3G10 gray  19.1 367.0 741.0 8
12603 JZ-602-C-PUR 4G10 gray 21.1 549.0 988.0 8
12604 JZ-602-C-PUR 5G10 gray 23.7 604.0 1202.0 8
12605 JZ-602-C-PUR 7G10 gray 26.5 820.0 1743.0 8
12606 JZ-602-C-PUR 3G16 gray  24.2 653.0 1088.0 6
12607 JZ-602-C-PUR 4G16 gray 27.2 807.0 1662.0 6
12608 JZ-602-C-PUR 5G16 gray 30.6 940.0 2021.0 6
12609 JZ-602-C-PUR7G16 gray 33.6 1345.0 2720.0 6
12610 JZ-602-C-PUR 3G25 gray  30.2 920.0 1947.0 4
12611 JZ-602-C-PUR 4G25 gray 33.3 1169.0 2591.0 4
12612 JZ-602-C-PUR 5G25 gray 36.8 1420.0 3197.0 4
12613 JZ-602-C-PUR7G25 gray 40.6 1921.0 4530.0 4
12614 JZ-602-C-PUR 3G35 gray  33.8 1250.0 2701.0 2
12615 JZ-602-C-PUR 4G35 gray 37.7 1680.0 3277.0 2
12616 JZ-602-C-PUR 5G35 gray 41.5 2020.0 4530.0 2
12617 JZ-602-C-PUR 4G50 gray  40.5 2370.0 3370.0 1
12618 JZ-602-C-PUR 4G70 gray  46.1 3257.0 4630.0 2/0
12619 JZ-602-C-PUR 4G95 gray  50.7 4060.0 6114.0 3/0
12620 JZ-602-C-PUR 4G120 gray   57.0 5231.0 7417.0 4/0
Technical Data
  • Special PUR-insulated to UL CSA AWM I/II A/B Style 20939 (jacket insulation) and CSA
  • Temperature Range
    Flexing
    -5�C to +80�C (+23�F to +176�F)
    Fixed Installation
    -40�C to +80�C (-40�F to +176�F)
  • Nominal Voltage
    According to UL+CSA 600 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 10x cable �
    Fixed Installation 5x cable �
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSUL CSA CE
Cable Construction
  • Bare copper, fine wire stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation T13, to DIN VDE 0281 part 1 and UL Style 10012
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • PVC-insulated inner jacket YM5 to DIN VDE 0207 part 5
  • Braided shielding of tinned copper wires approx. 85% coverage
  • Full-polyurethane
  • Outer jacket: Gray (RAL 7001)
Application
UL and CSA approved flexible control cables up to 600 V, for all machinery in tooling and plant construction, suitable for installation in dry, moist, wet and outdoor environments for medium mechanical loads. Designed for the export-orientated machinery manufacturer, specifically for USA and Canada.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Resistant to mineral oils, synthetic oils and refrigerants, UV-radiation, oxygen, ozone and hydrolysis. Conditionally resistant to microbes.
  • The materials used in manufactur are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
  • Unshielded type: JZ-602 PUR
Cable Accessories
  • Coming Soon!
