European Internationally Approved Cable:
TOPSERV® 600 VFD

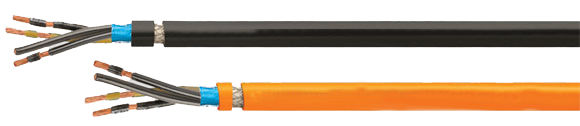

EMC preferred type, highly-flexible motor supply cable, oil-resistant, NFPA 79 Edition 2007

Hi-Tech Controls, Inc, European & Domestic cable

Topserv 600 VFD, Top serv 600 VFD, Topserv, Top serv, EMI preferred type, highly-flexible motor supply cable, oil-resistant, NFPA 79 Edition 2007, 62607, 62608, 62609, 62610, 62611, 62612, 62613, 62614, 62615, 62616, 62617, 62618, 62619, 62620, 62621, 62622, 62623, 62624, Hi-Tech Controls, Hi Tech Controls, European
Jacket Color: Black
European Part-No. Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
62607 TOPSERV® 600 VFD 1 mm2 (41/34) 4 9.9 38 163 18
62608 TOPSERV® 600 VFD 1.50 mm2 (65/34) 4 11.4 51 184 16
62609 TOPSERV® 600 VFD 2.50 mm2 (105/34) 4 12.5 80 197 14
62610 TOPSERV® 600 VFD 4 mm2 (168/34) 4 14.0 127 266 12
62611 TOPSERV® 600 VFD 6 mm2 (259/34) 4 17.1 230 401 10
62612 TOPSERV® 600 VFD 10 mm2 (413/34) 4 22.3 384 669 8
62613 TOPSERV® 600 VFD 16 mm2 (665/34) 4 25.4 614 917 6
62614 TOPSERV® 600 VFD 25 mm2 (1064/34) 4 30.1 960 1364 4
62615 TOPSERV® 600 VFD 35 mm2 (1666/34) 4 35.3 1344 1990 2
Jacket Color: Orange, Desnia
European Part-No. Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
62616 TOPSERV® 600 VFD 1 mm2 (41/34) 4 9.9 38 163 18
62617 TOPSERV® 600 VFD 1.50 mm2 (65/34) 4 11.4 51 184 16
62618 TOPSERV® 600 VFD 2.50 mm2 (105/34) 4 12.5 80 197 14
62619 TOPSERV® 600 VFD 4 mm2 (168/34) 4 14.0 127 266 12
62620 TOPSERV® 600 VFD 6 mm2 (259/34) 4 17.1 230 401 10
62621 TOPSERV® 600 VFD 10 mm2 (413/34) 4 22.3 384 669 8
62622 TOPSERV® 600 VFD 16 mm2 (665/34) 4 25.4 614 917 6
62623 TOPSERV® 600 VFD 25 mm2 (1064/34) 4 30.1 960 1364 4
62624 TOPSERV® 600 VFD 35 mm2 (1666/34) 4 35.3 1344 1990 2
Technical Data European
  • PVC motor supply cable according to UL 1277
  • Temperature range
    Flexing -40°C to +90°C (-40°F to +194°F)
  • Nominal voltage
    TC 600 V
    WTTC 1000 V
  • Test voltage 4000 V
  • Minimum bending radius
    Flexing 6x cable Ř
  • Coupling resistance
    Max. 250 Ohm/km
Approvals
RoHSUL CE VDE VDEchain
Cable Construction
  • Tinned copper conductor, extra-fine wire stranded, with AWG measures
  • Special PVC conductor insulation with transparent nylon skin
  • Black conductor with continuous white numbering
  • Green-yellow ground conductor in the outer layer
  • Conductors stranded in layers with optimal lay-lengths
  • Fleece
  • 1. Shielding with special aluminium foil
  • 2. Shielding with braid of tinned copper wires, optimal coverage, approx. 85%
  • Separator
  • Special TPE outer jacket
  • Jacket color - black (RAL 9005) or orange (RAL 2003)
  • With sequential length marking in feet
Application
Highly-flexible, extremely oil-resistant motor supply cable for modern servomotors; the double-shielding with special aluminium foil (100% coverage) and tinned copper braid (approx. 85% coverage) provides effective protection against electrical disturbance and the resultant failures. Approved to NFPA 79 2007 for open, unprotected installation on cable trays and from cable trays to the machine. The special TPE jacket is extremely resistant to oil, coolants and solvents and hence the perfect solution for industrial applications with open installation, installation in pipes and in the earth.
EMI = Electromagnetic interference.
To optimize EMI characteristics, we recommend a large contact area for the copper braiding around the entire circumference on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Self-extinguishing and flame retardant in accordance with CSA FT4
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • UV-resistant
  • Tests
    UL:

    TC-ER, WTTC 1000 V, MTW, NFPA 79 2007, UL 1277, PLTC-ER (AWG 18-AWG 12), ITC-ER (AWG 18-AWG 12), OIL RES l & ll, 90°C/194°F dry and 75°C/167°F wet
    CSA:
    c (UL) CIC-TC FT4, AWM l/ll A/B FT4
Note
  • VFD = Variable Frequency Drive
Cable Accessories
  • Coming Soon!
