European Servo, Feedback & Motor Cable:

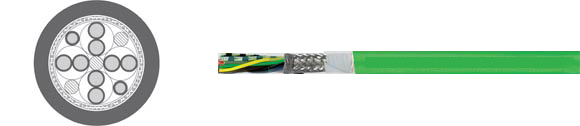

TOPGEBER 510

Highly Flexible Drag Chain Feedback Cable, PUR
According to Siemens Standard 6FX 8008- and INDRAMAT Standard INK

Sealcon, Inc, European & Domestic cable

TOPGEBER 510, PUR, high flexible drag chain feedback cable, RoHS Approved, RoHS Compliant, European  , Sealcon
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Jacket Color Conductor Colors Copper Weight
kg/km
Weight
ca. kg/km
AWG
700661 TOPGEBER 510 (2X2X0.18) 5.0 Green View Colors 24.0 49.0 -
75580 TOPGEBER 510
(3X2X0.14 + 4X0.14 + 2X0.5)
9.1 Green View Colors 72.0 120.0 26
77744 TOPGEBER 510 (3X2X0.14 + 2X1) 8.2 Green View Colors 71.0 107.0 26
77743 TOPGEBER 510 (3X2X0.14 + 2X0.5) 8.4 Green View Colors 74.0 103.0 26
77747 TOPGEBER 510
(3X2X0.14 + 4X0.14 + 4X0.25 + 2X0.5)
10.2 Green View Colors 92.0 145.0 26
77745 TOPGEBER 510 (3X2X0.14 + 2X1) 9.2 Green View Colors 86.0 125.0 26
700540 TOPGEBER 510
(3X2X0.14 + 4X0.14 + 4X0.25 + 2X.5)
9.6 Green View Colors 98.0 145.0 26
77483 TOPGEBER 510 (4X2X0.14 + 4X0.5) 8.1 Gray View Colors 48.8 90.0 26
79513 TOPGEBER 510 (4X2X0.14 + 4X0.5) 8.5 Green View Colors 48.8 95.0 26
700560 TOPGEBER 510
(4X2X0.14 + 4X0.14 + 4X0.5)
9.0 Green View Colors 80.3 140.0 26
77754 TOPGEBER 510 (10X0.14 + 4X0.5) 8.4 Green View Colors 61.1 96.0 26
77753 TOPGEBER 510 (10X0.14 + 2X0.5) 7.2 Green View Colors 43.0 83.0 26
78963 TOPGEBER 510 (5X2X0.14 + 2X0.5) 9.0 Green View Colors 72.0 110.0 26
700662 TOPGEBER 510 (4X2X0.18) 6.4 Green View Colors 35.0 68.0 -
700663 TOPGEBER 510 (8X2X0.18) 7.8 Green View Colors 54.0 88.0 -
77484 TOPGEBER 510 (3X2X0.25) 7.0 Gray View Colors 32.7 80.0 24
78828 TOPGEBER 510 (3X2X0.25) 7.2 Green View Colors 55.0 100.0 24
77750 TOPGEBER 510 (4X2X0.25 + 2X1) 10.5 Green View Colors 93.0 130.0 24
77748 TOPGEBER 510 (4X2X0.25 + 2X0.5) 8.5 Green View Colors 66.2 95.0 24
702050 TOPGEBER 510 (4X2X0.25 + 2X1.0) 10.5 Brown View Colors 93.0 130.0 24
78894 TOPGEBER 510 (5X2X0.25 + 2X0.5) 8.8 Green View Colors 98.5 140.0 24
77751 TOPGEBER 510 (4X2X0.38 + 4X0.5) 9.6 Green View Colors 77.0 120.0 21
79619 TOPGEBER 510 (5X2X0.38 + 2X0.5) 8.6 Green View Colors 69.0 95.0 21
77741 TOPGEBER 510 (9X0.5) 8.8 Green View Colors 81.0 128.0 20
European Part-No. Conductor Colors For System Siemens/ Indramat Part-No.
700661  DIN 47100 Siemens 6FX 8008-1BD71
75580  green, yellow, black, brown, blue, violet, yellow, blue, gray, black-white, red Siemens 6FX 8008-1BD41
77744  white, brown, DIN 47100 Heidenhain -
77743  green, yellow, gray, pink, blue, red, white, brown, DIN 47100 Siemens 6FX 8008-1BD11
77747  green, yellow, black, brown, orange, red, white-yellow, white-black, blue, gray, brown-gray, brown-yellow, green-black, green-red, brown-red, brown-blue Siemens 6FX 8008-1BD51
77745  white, brown, DIN 47100 Heidenhain -
700540  green, yellow, black, brown, orange, red, white-yellow, white-black, blue, gray, brown-gray, brown-yellow, green-black, green-red, brown-red, brown-blue Siemens 6FX 8008-1BD51
77483  yellow, violet, brown, green, black, red, gray, pink, white, blue, white-green, brown-green Heidenhain -
79513  yellow, violet, brown, green, black, red, gray, pink, white, blue, white-green, brown-green Heidenhain -
700560  white, blue, white-green, brown-green, green-black, blue-black, yellow-black, red-black, yellow, violet, green, red, gray, pink, black, brown Heidenhain -
77754  white, brown, green, yellow, DIN 47100 Heidenhain -
77753  DIN 47100, white, brown Heidenhain -
78963  white, brown, DIN 47100 Baumüller -
700662  DIN 47100 Siemens 6FX 8008-1BD61
700663  DIN 47100 Siemens 6FX 8008-1BD11
77848  DIN 47100 - -
78828  DIN 47100 - -
77750  brown, green, gray, pink, blue, violet, red, black, white, brown Indramat INK-0209
77748  brown, green, gray, pink, blue, violet, red, black, white, brown Indramat INK-0448
702050  brown, green, gray, pink, blue, violet, red, black, white Indramat INK-0209
78894  white, brown, green, yellow, gray, pink, black, violet, gray-pink, red-blue, blue, red, DIN 47100 Berger-Lahr -
77751  orange, red, violet, blue, brown, black, yellow, green, white-red, white-yellow, white-black, white-blue Siemens 6FX 8008-1BD21
79619  DIN 47100, white, brown Siemens -
77741  DIN 47100 Indramat INK-0208
Technical Data European
  • Special TPE-E/PUR compound for conductor and jacket, based on DIN VDE 0281/0812 (conductor) and VDE 0250/0281 (jacket)
  • Temperature Range
    Flexing
    -40°C to +80°C (-40°F to +176°F)
    Fixed Installation
    -50°C to +90°C (-58°F to +194°F)
  • Nominal Voltage
    0.14-0.34 mm²: 350 V
    0.5-1.0 mm²: 500 V
  • A.C. Test Voltage, 50 Hz
    Conductor/conductor 2000 V
    Conductor/shielding 1000 V
  • Mutual Capacitance at 800 Hz
    Conductor/conductor approx. 135 nF/km
  • Insulation Resistance
    Min. 20 MOhm x km
  • Coupling Resistance
    Max. 250 Ohm/km
  • Minimum Bending Radius
    Flexing approx. 10x cable Ø
    Fixed Installation approx. 5x cable Ø
Approvals
RoHSUL CSA CE VDE
Cable Construction
  • Bare copper, ultra-fine wire conductors acc. to DIN VDE 0295 cl. 6 and/or IEC 60228 cl. 6
  • TPE-E conductor insulation
  • Conductor colors see below
  • Fleece wrapping facilitates sliding
  • Overall shielding of tinned copper wire braid with tinned drain wire, coverage approx. 85%
  • Polyester fleece
  • PUR outer jacket
  • Jacket color see table DESINA®
  • The jacket color for feedback cables acc. to DESINA® is green (RAL 6018)
  • Part No. 700540
    With polyester inner jacket
    Otherwise like part no. 77747

Shielding:

  • Part No. 77741, 77483, 77848, 77748, 77751, 77753, 77754, 78079, 78963, 79513, 79619
    all with overall shielding
    Part No. 77743, 77745
    0.14 mm² pairs shielded,
    0.5 mm² conductors individually shielded, overall shielding
    Part No. 77744, 77747, 700540, 77750, 75580, 78828
    0.14 mm² pairs shielded, overall shielding
    Part No. 700560
    4 conductors 0.14 mm² shielded, overall shielding
Application
The incremental encoder cables or position feedback cables transmit the control pulses for positioning and operating characteristics of servomotors. These cables are used as connecting cables for tachometer, brakes and pulse generators in applications subjected to heavy mechanical stresses in industrial equipment, machine tools, control and automation equipment.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PUR outer jacket: low adhesion, extremely abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack
  • Particularly attractive for export-oriented markets due to UL/CSA approval
  • Due to the high grade special conductor insulation, the PUR jacket and the highly flexible conductor, these cables are ideally suitable for use in drag chains and provide high functional reliability
  • Optimum compliance with requirements for electromagnetic interference (EMI) by approx. 85% coverage from the braided shielding
  • These cables are produced to high quality specifications and conform to the DESINA® standard
Note
  • Color code:
    Part No. 77743, 77748, 77753, 77754, 78963, 79619
    , at 0.5 mm² starts with white, brown
    Part No. 75580, at 0.5 mm² starts with red, black
    Part No. 77744, 77745, 77750, at 1 mm² starts with white, brown
    Part No. 77747, 700540, 0.5 mm² brown-red, brown-blue, 0.25 mm² brown-gray, brown-yellow, green-black, green-red
    0.14 mm² (yellow, green), (black, brown), (orange, red)
    Part No. 77751, 0.5 mm² white-red, white-yellow, white-black, white-blue
    Part No. 78894, 0.5 mm² blue, red
    Part No. 77483, 79513, 700560, 0.5 mm² white, blue, white-green, brown-green
  • Brackets () indicate shielding.
  • SIEMENS product designations 6FX 8008- are registered trademarks of Siemens AG, and are to be used only for purposes of comparison.
  • INDRAMAT product designations INK- are registered trademarks of Bosch-Rexroth AG, and are to be used only for purposes of comparison.
  • Desina®: Explanation: see introduction.
Cable Accessories
  • Coming Soon!
