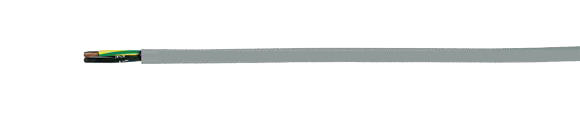

Control Cable: JZ-602-PUR

+80�C/+176�F, 600 V, Two Approvals Control Cable

Hi-Tech Controls, Inc, European & Domestic cable

Hi-Tech Controls,  - JZ-602-PUR, Two Approvals Control Cable, UL, CSA Approved, 80 degree Celsius, 600 V
AWG Selection
20
20
17
17
16
16
14
14 12 12 10 10 8 8
6
6
4
4
2
2
1
1
2/0
2/0
3/0
3/0
4/0
4/0
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
12471 OZ-602-PUR 2X0.5 gray  5.8 9.6 52.0 20
12472 JZ-602-PUR 3G0.5 gray 6.2 14.0 64.0 20
12473 JZ-602-PUR 4G0.5 gray 6.6 19.0

72.0

20
12474 JZ-602-PUR 5G0.5 gray 7.2 24.0 88.0 20
12475 JZ-602-PUR 7G0.5 gray 8.4 34.0 130.0 20
12476 JZ-602-PUR 8G0.5 gray 9.5 38.4 145.0 20
12477 JZ-602-PUR 9G0.5 gray 10.3 43.2 180.0 20
12478 JZ-602-PUR 12G0.5 gray 10.8 58.0 196.0 20
12479 JZ-602-PUR 18G0.5 gray 12.8 86.0 260.0 20
12480 JZ-602-PUR 25G0.5 gray 15.4 120.0 368.0 20
12481 JZ-602-PUR 34G0.5 gray 17.6 163.0 502.0 20
12482 JZ-602-PUR 41G0.5 gray 19.7 197.0 594.0 20
12483 OZ-602-PUR 2X1 gray   6.2 19.2 57.0 18
12484 JZ-602-PUR 3G1 gray 6.6 27.0 68.0 18
12485 JZ-602-PUR 4G1 gray 7.2 38.4 79.0 18
12486 JZ-602-PUR 5G1 gray 7.8 48.0 97.0 18
12487 JZ-602-PUR 7G1 gray 9.1 67.0 141.0 18
12488 JZ-602-PUR 8G1 gray 9.9 76.8 152.0 18
12489 JZ-602-PUR 9G1 gray 11.0 86.4 190.0 18
12490 JZ-602-PUR 12G1 gray 11.7 115.2 211.0 18
12491 JZ-602-PUR 18G1 gray 14.0 173.0 284.0 18
12492 JZ-602-PUR 25G1 gray 17.0 240.0 394.0 18
12493 JZ-602-PUR 34G1 gray 19.2 326.0 521.0 18
12494 JZ-602-PUR 41G1 gray 21.0 394.0 609.0 18
12495 OZ-602-PUR 2X1.5 gray   6.8 28.8 75.0 16
12496 JZ-602-PUR 3G1.5 gray 7.4 44.0 96.0 16
12497 JZ-602-PUR 4G1.5 gray 8.0 58.0 117.0 16
12498 JZ-602-PUR 5G1.5 gray 8.6 72.0 140.0 16
12499 JZ-602-PUR 7G1.5 gray 10.5 101.0 186.0 16
12500 JZ-602-PUR 9G1.5 gray 12.7 129.7 244.0 16
12501 JZ-602-PUR 12G1.5 gray 13.3 173.0 319.0 16
12502 JZ-602-PUR 18G1.5 gray 15.7 260.0 451.0 16
12503 JZ-602-PUR 25G1.5 gray 18.8 360.0 625.0 16
12504 JZ-602-PUR 34G1.5 gray 22.0 490.0 850.0 16
12505 JZ-602-PUR 41G1.5 gray 23.6 590.0 1041.0 16
12506 OZ-602-PUR 2X2.5 gray   8.1 48.0 115.0 14
12507 JZ-602-PUR 3G2.5 gray 8.6 72.0 143.0 14
12508 JZ-602-PUR 4G2.5 gray 10.0 96.0 185.0 14
12509 JZ-602-PUR 5G2.5 gray 10.8 120.0 221.0 14
12510 JZ-602-PUR 7G2.5 gray 13.0 168.0 293.0 14
12511 JZ-602-PUR 9G2.5 gray 15.5 216.0 429.0 14
12512 JZ-602-PUR 12G2.5 gray 16.6 288.0 563.0 14
12513 JZ-602-PUR 18G2.5 gray 19.5 432.0 854.0 14
12514 JZ-602-PUR 19G2.5 gray 19.5 456.0 914.0 14
12515 JZ-602-PUR 25G2.5 gray 23.8 600.0 1188.0 14
12516 JZ-602-PUR 3G4 gray   11.1 115.0 232.0 12
12517 JZ-602-PUR 4G4 gray 12.5 154.0 298.0 12
12518 JZ-602-PUR 5G4 gray 13.7 192.0 358.0 12
12519 JZ-602-PUR 7G4 gray 16.2 269.0 460.0 12
12520 JZ-602-PUR 3G6 gray   12.8 173.0 360.0 10
12521 JZ-602-PUR 4G6 gray 14.1 231.0 402.0 10
12522 JZ-602-PUR 5G6 gray 15.7 288.0 484.0 10
12523 JZ-602-PUR 7G6 gray 19.2 403.0 630.0 10
12524 JZ-602-PUR 3G10 gray   16.8 288.0 535.0 8
12525 JZ-602-PUR 4G10 gray 18.5 384.0 653.0 8
12526 JZ-602-PUR 5G10 gray 20.1 480.0 786.0 8
12527 JZ-602-PUR 7G10 gray 22.4 672.0 1100.0 8
12528 OZ-602-PUR 2X16 gray   19.2 307.0 640.0 6
12529 JZ-602-PUR 3G16 gray 20.5 461.0 810.0 6
12530 JZ-602-PUR 4G16 gray 23.0 615.0 1045.0 6
12531 JZ-602-PUR 5G16 gray 25.5 768.0 1260.0 6
12532 JZ-602-PUR 7G16 gray 28.2 1075.0 1760.0 6
12533 JZ-602-PUR 3G25 gray   25.0 720.0 1180.0 4
12534 JZ-602-PUR 4G25 gray 28.1 960.0 1507.0 4
12535 JZ-602-PUR 5G25 gray 30.9 1200.0 1858.0 4
12536 JZ-602-PUR 7G25 gray 35.5 1680.0 2830.0 4
12537 JZ-602-PUR 3G35 gray   28.6 1008.0 1590.0 2
12538 JZ-602-PUR 4G35 gray 31.7 1344.0 2123.0 2
12539 JZ-602-PUR 5G35 gray 35.5 1680.0 2612.0 2
12540 JZ-602-PUR 4G50 gray   35.8 1920.0 3058.0 1
12541 JZ-602-PUR 4G70 gray   41.6 2688.0 4254.0 2/0
12542 JZ-602-PUR 4G95 gray   46.0 3648.0 5762.0 3/0
12543 JZ-602-PUR 4G120 gray   52.8 4608.0 7280.0 4/0
Technical Data
  • Control cable of special-PUR to UL CSA AWM I/II A/B Style 20939 (jacket insulation) and CSA
  • Temperature Range
    Flexing
    -5�C to +80�C (+23�F to +176�F)
    Fixed Installation
    -40�C to +80�C (-70�F to +176�F)
  • Nominal Voltage according to
    UL + CSA 600 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Insulation Resistance
    min 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable �
    Fixed Installation 4x cable �
  • Radiation Resistance
    up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSUL CSA CE PCT
Cable Construction
  • Bare copper, fine wire stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation T13, to DIN VDE 0281 part 1 and UL Style 10012
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Full-polyurethane
  • Outer jacket: Gray (RAL 7001)
Application
UL and CSA approved flexible control cable rated at 600 V, primarily designed for exporters to the US or Canadian market. Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment. Suitable for installation in dry, moist, wet and outdoor environment and moderate flexing applications.
CE Approval= The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Resistant to mineral oils, synthetic oils, water based coolants, UV-radiation, oxygen, ozone and hydrolysis. Conditionally resistant to microbes.
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
  • Unshielded Type: JZ-602-C-PUR
Cable Accessories
  • Coming Soon!
