European Internationally Approved Cable:

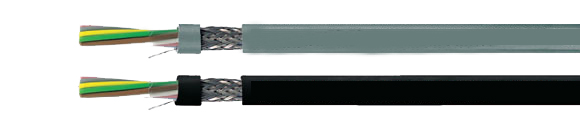

Command Cable UL (LiYCY)

Style 2464, 300 V, +80°C/176°F, EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

Command Cable UL 300V
AWG Selection
26
26
16
24
22
22
20
20
18
18
16
16
European
Part-No.
gray
European
Part-No.
black
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
83254 83976 Command Cable UL (LiYCY) 2X0.14 3.9 12.6 20.0 26
83255 83977 Command Cable UL (LiYCY) 3X 0.14 4.2 13.7 25.0 26
83256 83978 Command Cable UL (LiYCY) 4X 0.14 4.4 14.9 28.0 26
83257 83979 Command Cable UL (LiYCY) 6X 0.14 5.0 18.9 30.0 26
83258 83980 Command Cable UL (LiYCY) 10X 0.14 6.1 29.5 50.0 26
83259 83981 Command Cable UL (LiYCY) 12X0.14 6.3 31.4 53.0 26
83260 83982 Command Cable UL (LiYCY) 16X 0.14 6.8 43.9 60.0 26
83261 83983 Command Cable UL (LiYCY) 18X 0.14 7.1 52.1 70.0 26
83262 83984 Command Cable UL (LiYCY) 24X 0.14 8.0 62.8 100.0 26
83263 83985 Command Cable UL (LiYCY) 27X 0.14 8.4 66.3 105.0 26
83264 83986 Command Cable UL (LiYCY) 30X0.14 8.6 70.4 110.0 26
83270 83987 Command Cable UL (LiYCY) 2X0.23 4.3 16.1 20.0 24
83271 83988 Command Cable UL (LiYCY) 3X0.23 4.5 18.9 25.0 24
83272 83989 Command Cable UL (LiYCY) 4X 0.23 4.8 23.0 30.0 24
83273 83990 Command Cable UL (LiYCY) 6X 0.23 5.4 32.8 40.0 24
83274 83991 Command Cable UL (LiYCY) 10X0.23 6.5 50.9 60.0 24
83275 83992 Command Cable UL (LiYCY) 12X0.23 6.7 59.1 70.0 24
83276 83993 Command Cable UL (LiYCY) 16X 0.23 7.4 68.4 90.0 24
83277 83994 Command Cable UL (LiYCY) 18X 0.23 7.7 79.5 123.0 24
83278 83995 Command Cable UL (LiYCY) 24X0.23 8.8 97.3 131.0 24
83279 83996 Command Cable UL (LiYCY) 27X 0.23 9.0 122.0 160.0 24
83280 83997 Command Cable UL (LiYCY) 30X 0.23 9.3 132.0 170.0 24
83286 65044 Command Cable UL (LiYCY) 2X0.34 4. 18.1 40.0 22
83287 65045 Command Cable UL (LiYCY) 3X0.34 4.8 22.2 50.0 22
83288 65046 Command Cable UL (LiYCY) 4X0.34 5.1 28.7 60.0 22
83289 65047 Command Cable UL (LiYCY) 6X0.34 6.0 45.4 80.0 22
83290 65048 Command Cable UL (LiYCY) 10X0.34 7.3 66.1 130.0 22
83291 65049 Command Cable UL (LiYCY) 12X0.34 7.5 70.8 140.0 22
83292 65050 Command Cable UL (LiYCY) 16X0.34 8.2 88.4 160.0 22
83293 65051 Command Cable UL (LiYCY) 18X0.34 8.7 104.1 170.0 22
83294 65052 Command Cable UL (LiYCY) 24X0.34 9.9 129.0 220.0 22
83295 65053 Command Cable UL (LiYCY) 27X0.34 10.4 138.4 250.0 22
83296 65054 Command Cable UL (LiYCY) 30X0.34 10.9 159.0 280.0 22
European
Part-No.
gray
European Part-No.
black
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
83302 65055 Command Cable UL (LiYCY) 2X0.56 5.1 29.4 50.0 20
83303 65056 Command Cable UL (LiYCY) 3X0.56 5.3 39.7 55.0 20
83304 65057 Command Cable UL (LiYCY) 4X0.56 5.6 46.1 61.0 20
83305 65058 Command Cable UL (LiYCY) 6X0.56 6.6 66.8 90.0 20
83306 65059 Command Cable UL (LiYCY) 10X0.56 8.2 93.1 133.0 20
83307 65060 Command Cable UL (LiYCY) 12X0.56 8.4 117.4 151.0 20
83308 65061 Command Cable UL (LiYCY) 16X0.56 9.5 130.4 190.0 20
83309 65062 Command Cable UL (LiYCY) 18X0.56 9.9 151.4 216.0 20
83310 65063 Command Cable UL (LiYCY) 24X0.56 11.5 237.0 339.0 20
83311 65064 Command Cable UL (LiYCY) 27X0.56 12.0 257.4 374.0 20
83312 65065 Command Cable UL (LiYCY) 30X0.56 12.3 297.0 397.0 20
83318 65066 Command Cable UL (LiYCY) 2X0.83 6.5 39.1 60.0 18
83319 65067 Command Cable UL (LiYCY) 3X0.83 6.8 50.0 75.0 18
83320 65068 Command Cable UL (LiYCY) 4X0.83 7.4 59.1 90.0 18
83321 65069 Command Cable UL (LiYCY) 6X0.83 8.8 89.1 125.0 18
83322 65070 Command Cable UL (LiYCY) 10X0.83 10.9 141.4 180.0 18
83323 65071 Command Cable UL (LiYCY) 12X0.83 11.2 152.8 220.0 18
83324 65072 Command Cable UL (LiYCY) 16X0.83 12.9 184.1 290.0 18
83325 65073 Command Cable UL (LiYCY) 18X0.83 13.5 207.2 300.0 18
83326 65074 Command Cable UL (LiYCY) 24X0.83 15.6 272.6 450.0 18
83327 65075 Command Cable UL (LiYCY) 27X0.83 15.9 289.1 470.0 18
83328 65076 Command Cable UL (LiYCY) 30X0.83 16.6 317.4 490.0 18
83334 65077 Command Cable UL (LiYCY) 2X1.31 6.9 59.1 90.0 16
83335 65078 Command Cable UL (LiYCY) 3X 1.31 7.3 74.1 160.0 16
83336 65079 Command Cable UL (LiYCY) 4X 1.31 7.9 96.4 200.0 16
83337 65080 Command Cable UL (LiYCY) 6X 1.31 9.6 137.4 290.0 16
83338 65081 Command Cable UL (LiYCY) 10X 1.31 12.4 191.7 450.0 16
83339 65082 Command Cable UL (LiYCY) 12X 1.31 12.8 251.7 600.0 16
83340 65083 Command Cable UL (LiYCY) 16X 1.31 12.8 276.1 650.0 16
83341 65084 Command Cable UL (LiYCY) 18X 1.31 15.5 364.1 680.0 16
83342 65085 Command Cable UL (LiYCY) 24X 1.31 18.1 442.4 900.0 16
83343 65086 Command Cable UL (LiYCY) 27X 1.31 18.7 494.7 990.0 16
83344 65087 Command Cable UL (LiYCY) 30X1.31 19.5 521.4 1050.0 16
Technical Data European
  • Special PVC command cable, approved to UL-Style 2464, conductors according
    AWG 26-20 to UL-Style 1061/1729
    AWG 18-16 to UL-Style 1007/1569
  • Temperature Range
    Flexing
    -10°C to +80°C (+14°C to +176°F)
    Fixed Installation
    -20°C to +80°C (-4°C to +176°F)
  • Nominal Voltage 300 V
  • Test Voltage 1500 V
  • Breakdown Voltage
    Min. 3000 V
  • Minimum Bending radius
    Flexing approx. 15x cable Ø
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSUL CSAUR
Cable Construction
  • Tinned copper, fine wire conductors
    AWG 26-20 gem. ASTM-B 174-95 class J-M,
    AWG 18-16 gem. ASTM-B 286
    conductor make-up to
    0.14 mm² = 7x0.162 mm
    0.23 mm² = 7x0.202 mm
    0.34 mm² = 7x0.254 mm
    0.56 mm² = 7x0.32 mm
    0.82 mm² = 19x0.235 mm
    1.30 mm² = 19x0.31 mm
  • Special PVC conductor insulation class 43, semi rigid to UL-Std. 1581 table 50.182 and 50.183
  • Color coded to DIN 47100 or international color code
  • Conductors stranded in layers with optimal lay-length
  • Separator-foil
  • Drain wire
  • Tinned copper wire braiding, approx. 85% coverage
  • Special PVC outer jacket class 43 to UL-Std. 1581 table 50.182
  • Outer jacket color
    Black (international color code)
    Gray (DIN 47100 / preferred type from stock)
Application

This cable type is suitable for use as a flexible connector cable in the fields of electronics, control and command technology as well as for measuring, signal and impulse transfer. Quick and cost favorable connections through cutting and clamping technics.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • PVC flame retardant according to UL VW-1
  • Conditionally resistant to: oils, solvents, acids, lye
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
