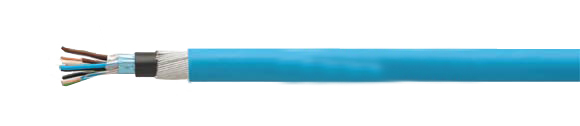

European Internationally Approved Cable: European BS 5308 PART 2

Instruments Cable, Conductor Insulation PVC

Sealcon, Inc, European & Domestic cable

HELUTHERM� 145 600V, flexible single conductor, electron beam cross-linked, halogen-free, RoHS Approved, RoHS Compliant, European  , Sealcon
European Part Number:
5308 P2
Technical Data European
  • Instrument cable acc. to British Standard 5301 Part 2
  • Temperature Range
    Fixed Installation
    -20°C to +65°C (-4°F to +149°F)
  • Nominal Voltage U0/U 300/500 V
  • Minimum Bending Radius
    Fixed Installation
    5x external Ø (Type 1)
    6x external Ø (Types 2+3)
Approvals
RoHSBS
Cable Construction
  • Copper conductor, single, multiple or fine-wire acc. to BSD 6360
  • Conductor cross-sections from 0.5 mm2 to 1.5 mm2
  • Conductor insulation
    -PVC acc. to BS 6746
  • Conductors stranded in pairs with optimal lay length,
    Lay length smaller than 100 mm
  • Number of pairs: 1, 2, 5, 10, 15, 20, 30, 50
  • Pairs individually not shielded or shielded
  • Pairs stranded in layers
  • Wrapping with aluminum/polyester foil, on request
  • Type 1
    Flame retardant PVC outer jacket
  • Type 2
    Extruded PVC inner jacket, steel wire armoring flame retardant PVC outer jacket
  • Jacket color: Black or Blue
Application

As measurement and control cables in power plants and industrial plants, and in the petrochemical industry.
Example
BS 5308 P2 T2 PVC / CAM / PVC / SWA / PVC = Overall shielding, steel wire armoring
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • None available at this time.
Note
  • As a result of a wide range of cables and wires according to British Standard, you can find following only a small selection of types. For requests about British Standard cables, please contact us.
Cable Accessories
  • Coming Soon!
