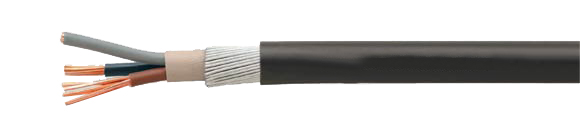

European Internationally Approved Cable: European BS 6724

High Voltage Cable, 0.6/1kV, Armored, Halogen-Free

Hi-Tech Controls, Inc, European & Domestic cable

HELUTHERM´┐Ż 145 600V, flexible single conductor, electron beam cross-linked, halogen-free, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
European Part Number:
6724
Technical Data European
  • Special power cable acc. to British Standard 6724
  • Temperature Range
    Flexing
    0°C to +90°C (0°F to +194°F)
    Fixed Installation
    -20°C to +90°C (-4°F to +194°F)
  • Permissible Operating Temperature at coductor +90°C/+194°F
  • Nominal Voltage U0/U 0.6/1kV
  • Minimum Bending Radius
    Fixed Installation 6x external Ø
Approvals
RoHSBS
Cable Construction
  • Bare copper conductor acc. to BS 6360 cl. 2
  • Conductor insulation of cross-linked polyethylene
  • Conductor identification
    1-conductor-brown
    2-conductor-brown, blue
    3-conductor-brown, blue, gray
    4-conductor-brown, black, gray, blue
    5-conductor and up with numbering
  • Conductors stranded layers
  • Inner jacket LSHF mix
  • Armoring of galvanized steel wire
  • Outer jacket LSHF mix
  • Jacket color: Black
Application

Unlike power cables acc. to BS 5467, these are LSHF (Low Smoke Halogen Free). Used anywhere where, in case of fire damage, loss of human life and material assets must be prevented, e.g. in industrial plants, airports, underground railways and tunnels.
Example
BS 5467 CU / XLPE / LSZH / AWA / LSZH = Single Conductor
BS 5467 CU / XLPE / LSZH / SWA / LSZH = Multi-Conductor
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Reaction to fire tested acc. to IEC 60332-1, BS 4066-1
Note
  • As a result of a wide range of cables and wires according to British Standard, you can find following only a small selection of types. For requests about British Standard cables, please contact us.
Cable Accessories
  • Coming Soon!
