Internationally Approved Cable:

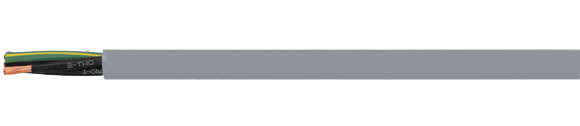

TRAYCONTROL 500

Flexible, oil-resistant control cable for installation TC-ER, PLTC-ER, ITC-ER, NFPA 79 Edition 2007

Hi-Tech Controls, Inc, European & Domestic cable

Traycontrol 500, Tray Control 500, Traycontrol, Tray Control, Flexible, oil-resistant, TC-ER, PLTC-ER, ITC-ER, NFPA 79 Edition 2007, 63079, 63080, 63081, 63082, 63083, 63084, 63085, 63086, 63087, 63088, 63089, 63090, 63091, 63092, 63093, 63094, 63095, 63096, 63097, 63098, 63099, 63100, 63101, 63102, 63103, 63104, 63105, 63106, 63107, 63108, 63109, 63110, 63111, 63112, 63113, 63114, 63115, 63116, 63117, 63118, 63119, 63120, 63121, 63122, 63123, 63124, 63125, 63126, 63127, 63128, 63129, 63130, 63131, 63132, 63133, 63111, 63164, 63165, 63166, 63167, 63168, 63169, 63170, 63171, 63172, 63173, 63174, 63175, 63176, 63177, 63178, 63179, 63180, 63181, 63182, 63183, 63184, 63185, 63186, 63187, 63188, 63189, 63190, 63191, 63192, 63193, 63194, 63195, 63196, 63197, 63198, 63199, 62802, 62803, 62804, 62805, 62806, 62807, 62808, 62809, 62810, 62811, 62812,  Hi-Tech Controls, Hi Tech Controls,
AWG Selection
20 20 18 18 16 16 14 14 12 12
10 10 8 8 6 6 4 4 2 2
1 1 1/0 1/0 2/0 2/0 3/0 3/0 4/0 4/0
Part-No. No. Conductors x
cross-sec. mm2
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
63079 2x0.5 6.4 10 58 20
63080 3G0.5 6.7 14 61 20
63081 4G0.5 7.2 19 76 20
63082 5G0.5 7.8 24 89 20
63083 7G0.5 8.4 34 120 20
63084 9G0.5 9.6 43 201 20
63085 12G0.5 10.7 58 250 20
63086 18G0.5 12.4 86 295 20
63087 25G0.5 14.9 120 362 20
63088 2x1 7.0 19 68 18
63089 3G1 7.1 29 88 18
63090 4G1 8.0 38 98 18
63091 5G1 8.6 48 116 18
63092 7G1 9.3 67 149 18
63093 9G1 10.7 86 186 18
63094 10G1 11.6 96 199 18
63095 12G1 11.9 115 245 18
63096 15G1 13.2 144 292 18
63097 16G1 13.3 154 306 18
63098 18G1 14.6 173 366 18
63099 19G1 14.7 182 384 18
63100 25G1 17.0 240 451 18
63101 27G1 17.4 259 521 18
63102 34G1 19.3 326 625 18
63103 37G1 19.8 355 684 18
63104 41G1 20.7 394 744 18
63105 50G1 23.5 480 933 18
63106 61G1 24.9 586 1095 18
63107 2x1.5 7.7 29 80 16
63108 3G1.5 8.1 43 86 16
63109 4G1.5 8.8 58 115 16
63110 5G1.5 9.5 72 126 16
63112 6G1.5 10.0 86 164 16
63113 7G1.5 10.3 101 171 16
63114 8G1.5 10.9 201
63115 9G1.5 11.9 130 237 16
63116 10G1.5 12.9 144 259 16
63117 12G1.5 14.2 173 301 16
63118 14G1.5 14.5 202 365 16
63119 15G1.5 15.2 216 379 16
63120 16G1.5 15.9 230 405 16
63121 18G1.5 16.4 259 443 16
63122 19G1.5 16.5 274 458 16
63123 20G1.5 17.0 288 491 16
63124 25G1.5 18.6 360 564 16
63125 27G1.5 19.0 389 629 16
63126 30G1.5 19.6 432 701 16
63127 34G1.5 20.5 490 775 16
63128 40G1.5 22.9 576 946 16
63129 41G1.5 23.4 590 967 16
63130 50G1.5 25.1 720 1137 16
63131 61G1.5 27.2 878 1345 16
63132 2x2.5 8.6 48 100 14
63133 3G2.5 8.9 72 112 14
63111 4G2.5 9.8 96 141 14
63164 5G2.5 10.6 120 152 14
63165 6G2.5 11.2 144 205 14
63166 7G2.5 11.6 168 216 14
63167 9G2.5 14.3 216 312 14
63168 10G2.5 15.5 240 378 14
63169 12G2.5 15.9 288 434 14
63170 16G2.5 17.6 384 550 14
63171 18G2.5 18.4 432 616 14
63172 19G2.5 18.6 456 634 14
63173 25G2.5 22.2 600 817 14
63174 2x4 9.5 77 132 12
63175 3G4 10.6 115 177 12
63176 4G4 11.5 154 201 12
63177 5G4 12.6 192 274 12
63178 6G4 14.1 230 315 12
63179 7G4 14.6 269 353 12
63180 9G4 16.9 346 476 12
63181 12G4 18.9 461 613 12
63182 16G4 19.8 614 783 12
63183 19G4 23.1 730 918 12
63184 20G4 24.3 768 961 12
63185 25G4 26.3 960 1236 12
63186 2x6 11.9 115 213 10
63187 3G6 12.6 173 283 10
63188 4G6 14.7 230 387 10
63189 5G6 16.0 288 473 10
63190 7G6 17.4 403 607 10
63191 9G6 20.4 518 771 10
63192 12G6 23.9 691 1061 10
63193 19G6 27.9 1094 1528 10
63194 3G10 17.0 263 420 8
63195 4G10 19.7 384 662 8
63196 5G10 21.7 480 784 8
63197 3G16 19.5 461 701 6
63198 4G16 21.9 614 908 6
63199 5G16 24.0 768 1149 6
62802 3G25 24.3 720 1061 4
62803 4G25 27.1 960 1366 4
62804 5G25 29.3 1200 1631 4
62805 3G35 27.9 1008 1480 2
62806 4G35 31.4 1344 1922 2
62807 5G35 34.0 1680 2363 2
62808 4G42.3 34.8 1624 2397 1
62809 4G52.9 37.9 2031 2938 1/0
62810 4G67.3 41.3 2584 3559 2/0
62811 4G84.8 48.6 3256 4181 3/0
62812 4G106.7 51.2 4097 5747 4/0
Technical Data
  • PVC control cable according to UL Standard 1277
  • Temperature range
    Flexing -5 to +90C (+23F to +194F)
    Fixed installation -40C to +90C (-40F to +194F)
  • Nominal voltage
    TC 600 V
    AWM 1000 V
    TC Wind Turbine (WTTC) 1000V
  • Test voltage 3000 V
  • Minimum bending radius
    Flexing 5x cable
  • Insulation resistance
    Min. 20 MOhm x km
  • Radiation resistance
    Up to 80 x 106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA CE
Cable Construction
  • Bare copper conductor, fine wire stranded
  • Special PVC conductor insulation with transparent nylon skin
  • Black conductors with continuous white numbering
  • Green-yellow grounding in the outer layer, 3 conductors and more
  • Conductors stranded in layers with optimal lay-lengths
  • Separator
  • Special PVC outer jacket
  • Jacket color - gray (RAL 7001)
  • With sequential length marking in feet
Application

European TRAYCONTROL 500 is a flexible, oil-resistant control cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for industrial plant and machinery in accordance with NFPA 79 Edition 2007. Approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (OIL RES I & II) guarantees a long service life for industrial applications in dry, damp and wet environments, Recommended applications: production lines, bottling plants, machine construction, switch cabinets, conveyor systems, packaging machines, and in the automotive industry.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Self-extinguishing and flame retardant in accordance with CSA FT4
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • Tests
    UL: NFPA 79 2007, Oil Res I & ll, 90C dry/75C wet, MTW, Class 1 Div. 2 per NEC Art 501, 336, 392
    AWG 20 - AWG 12 add'l feature:
    PLTC-ER, ITC-ER
    AWG 18 - AWG 4/0 add'l feature:
    TC-ER, WTTC 1000V, DP-1, crush impact test in accordance with UL 1277
    CSA: CSA AWM l/ll A/B FT4, c(UL) CIC-TC FT4

Note
  • Advantages
    Highly-flexible, easy to install
  • Available on request
    with blue conductors (DC)
    with red conductors (AC)
    Black or TPE outer jacket
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
