European Internationally Approved Cable:

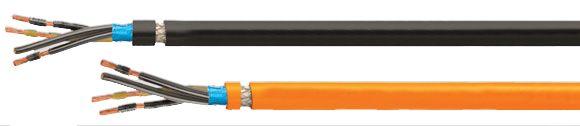

TOPFLEX® 600 VFD

EMC preferred type, flexible motor supply cable, oil-resistant, NFPA 79 Edition 2007

Hi-Tech Controls, Inc, European & Domestic cable

Topflex 600 VFD, Topflex 600 VFD, Topflex, Top Flex, 63139, 63140, 63137, 63141, 63142, 63143, 63144, 63145, 63146, 63147, 63148, 63149, 63150, 63151, 63152, 63153, 63154, 63155, Hi-Tech Controls, Hi Tech Controls, European
Jacket Color: Black
European Part-No. Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
63139 TOPFLEX® 600 VFD 1 mm2 (19/30) 4 9.9 52 164 18
63140 TOPFLEX® 600 VFD 1.50 mm2 (26/30) 4 11.4 72 183 16
63137 TOPFLEX® 600 VFD 2.50 mm2 (41/30) 4 12.5 118 197 14
63141 TOPFLEX® 600 VFD 4 mm2 (65/30) 4 14.0 182 267 12
63142 TOPFLEX® 600 VFD 6 mm2 (105/30) 4 17.1 256 402 10
63143 TOPFLEX® 600 VFD 10 mm2 (168/30) 4 22.3 417 668 8
63144 TOPFLEX® 600 VFD 16 mm2 (266/30) 4 25.4 651 918 6
63145 TOPFLEX® 600 VFD 25 mm2 (413/30) 4 30.1 910 1363 4
63146 TOPFLEX® 600 VFD 35 mm2 (665/30) 4 35.3 1411 1994 2
Jacket Color: Orange, Desnia
European Part-No. Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
63147 TOPFLEX® 600 VFD 1 mm2 (19/30) 4 9.9 52 164 18
63148 TOPFLEX® 600 VFD 1.50 mm2 (26/30) 4 11.4 72 183 16
63149 TOPFLEX® 600 VFD 2.50 mm2 (41/30) 4 12.5 118 197 14
53150 TOPFLEX® 600 VFD 4 mm2 (65/30) 4 14.0 182 267 12
63151 TOPFLEX® 600 VFD 6 mm2 (105/30) 4 17.1 256 402 10
63152 TOPFLEX® 600 VFD 10 mm2 (168/30) 4 22.3 417 668 8
63153 TOPFLEX® 600 VFD 16 mm2 (266/30) 4 25.4 651 918 6
63154 TOPFLEX® 600 VFD 25 mm2 (413/30) 4 30.1 910 1363 4
63155 TOPFLEX® 600 VFD 35 mm2 (665/30) 4 35.3 1411 1994 2
Technical Data European
  • PVC motor supply cable according to UL 1277
  • Temperature range
    Flexing -40°C to +90°C (-40°F to +194°F)
  • Nominal voltage
    TC 600 V
    WTTC 1000 V
  • Test voltage 4000 V
  • Minimum bending radius
    Flexing 6x cable Ø
  • Coupling resistance
    Max. 250 Ohm/km
Approvals
RoHSCE CSA UL
Cable Construction
  • Tinned copper conductor, fine wire stranded with AWG measures
  • Special PVC conductor insulation with transparent nylon skin
  • Black conductors with continuous white numbering
  • Green-yellow ground conductor in the outer layer
  • Conductors stranded in layers with optimal lay-lengths
  • Fleece
    1. Screening with special aluminium foil
    2. Screening with braid of tinned copper wires, optimal coverage, approx, 85%
  • Separator
  • Special PVC outer jacket
  • Jacket color - black (RAL 9005) or orange (RAL 2003)
  • With sequential length marking in feet
Application
Flexible, extremely oil-resistant motor supply cable for modern servomotors; the double-shielding with special aluminium foil (100% coverage) and tinned copper braid (approx. 85% coverage) provides effective protection against electrical disturbance and the resultant failures. Approved to NFPA 79 2007 for open, unprotected installation on cable trays and from cable trays to the machine. The special PVC jacket is extremely resistant to oil, coolants and solvents and hence the perfect solution for industrial applications with open installation, installation in pipes and in the ground.
EMI = Electromagnetic interference.
To optimize EMI characteristics, we recommend a large contact area for the copper braiding around the entire circumference on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Self-extinguishing and flame retardant in accordance with CSA FT4
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • UV-resistant
  • Tests
    UL:
    TC-ER, WTTC 1000 V, MTW, NFPA 79 2007, UL 1277, PLTC-ER (AWG 18-
    AWG 12), ITC-ER (AWG 18 - AWG 12) OIL RES I & II, 90°C/194°F dry and 75°C/167°F wet, Cold Bend Test -40°C/-40°F
    CSA:
    c (UL) CIC-TC FT4, AWM l/ll A/B FT4
Note
  • VFD = Variable Frequency Drive
Cable Accessories
  • Coming Soon!
