European Internationally Approved Cable:
Command Cable UL (LiYY-TP)

Style 2464, 300 V, +80°C/176°F

Hi-Tech Controls, Inc, European & Domestic cable

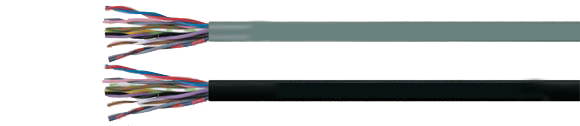

Command Cable UL (LiYY-TP) Style 2464, 300 V, 80 C, black or grey outer jacket, RoHS Approved, RoHS Compliant, European  , Hi-Tech Controls
AWG Selection
26
26
16
24
22
22
20
20
European Part-No.
gray
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
83904 Command Cable UL (LiYY-TP) 1X2X0.14 3.6 2.7 20.0 26
83905 Command Cable UL (LiYY-TP) 2X2X0.14 5.1 5.4 24.0 26
83906 Command Cable UL (LiYY-TP) 3X2X0.14 5.3 8.1 30.0 26
83907 Command Cable UL (LiYY-TP) 4X2X0.14 5.8 10.8 38.0 26
83908 Command Cable UL (LiYY-TP) 5X2X0.14 6.2 13.6 44.0 26
83909 Command Cable UL (LiYY-TP) 6X2X0.14 6.8 16.2 51.0 26
83910 Command Cable UL (LiYY-TP) 7X2X0.14 6.8 19.0 57.0 26
83911 Command Cable UL (LiYY-TP) 8X2X0.14 7.3 21.7 64.0 26
83912 Command Cable UL (LiYY-TP) 10X2X0.14 7.4 26.7 76.0 26
83913 Command Cable UL (LiYY-TP) 12X2X0.14 9.1 32.6 93.0 26
83914 Command Cable UL (LiYY-TP) 14X2X0.14 9.8 37.4 103.0 26
83915 Command Cable UL (LiYY-TP) 15X2X0.14 10.6 40.7 109.0 26
83916 Command Cable UL (LiYY-TP) 16X2X0.14 10.6 43.4 112.0 26
83917 Command Cable UL (LiYY-TP) 18X2X0.14 11.1 48.5 119.0 26
83918 Command Cable UL (LiYY-TP) 20X2X0.14 11.9 54.2 130.0 26
83919 Command Cable UL (LiYY-TP) 22X2X0.14 12.4 59.3 150.0 26
83920 Command Cable UL (LiYY-TP) 24X2X0.14 13.1 64.7 169.0 26
83921 Command Cable UL (LiYY-TP) 25X2X0.14 13.4 67.2 178.0 26
83922 Command Cable UL (LiYY-TP) 1X2X0.23 3.8 4.8 32.0 24
83923 Command Cable UL (LiYY-TP) 2X2X0.23 4.0 9.7 36.0 24
83924 Command Cable UL (LiYY-TP) 3X2X0.23 5.7 14.7 48.0 24
83925 Command Cable UL (LiYY-TP) 4X2X0.23 6.0 19.6 56.0 24
83926 Command Cable UL (LiYY-TP) 5X2X0.23 6.6 24.6 71.0 24
83927 Command Cable UL (LiYY-TP) 6X2X0.23 7.2 29.3 80.0 24
83928 Command Cable UL (LiYY-TP) 7X2X0.23 7.2 34.1 89.0 24
83929 Command Cable UL (LiYY-TP) 8X2X0.23 7.8 39.1 98.0 24
83930 Command Cable UL (LiYY-TP) 10X2X0.23 9.2 48.9 111.0 24
83931 Command Cable UL (LiYY-TP) 12X2X0.23 9.7 59.4 135.0 24
83932 Command Cable UL (LiYY-TP) 14X2X0.23 10.2 68.7 160.0 24
83933 Command Cable UL (LiYY-TP) 15X2X0.23 10.9 73.7 171.0 24
83934 Command Cable UL (LiYY-TP) 16X2X0.23 10.9 79.1 185.0 24
83935 Command Cable UL (LiYY-TP) 18X2X0.23 11.5 88.9 209.0 24
83936 Command Cable UL (LiYY-TP) 20X2X0.23 12.2 98.4 230.0 24
83937 Command Cable UL (LiYY-TP) 22X2X0.23 13.0 108.6 248.0 24
83938 Command Cable UL (LiYY-TP) 24X2X0.23 13.7 117.9 279.0 24
83939 Command Cable UL (LiYY-TP) 25X2X0.23 14.2 123.5 292.0 24
European Part-No.
grey
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
83940 Command Cable UL (LiYY-TP) 1X2X0.34 4.2 6.5 38.0 22
83941 Command Cable UL (LiYY-TP) 2X2X0.34 5.9 13.0 44.0 22
83942 Command Cable UL (LiYY-TP) 3X2X0.34 6.3 19.5 60.0 22
83943 Command Cable UL (LiYY-TP) 4X2X0.34 7.0 26.1 79.0 22
83944 Command Cable UL (LiYY-TP) 5X2X0.34 7.6 32.6 92.0 22
83945 Command Cable UL (LiYY-TP) 6X2X0.34 8.2 39.2 119.0 22
83946 Command Cable UL (LiYY-TP) 7X2X0.34 8.2 45.7 128.0 22
83947 Command Cable UL (LiYY-TP) 8X2X0.34 9.0 52.3 139.0 22
83948 Command Cable UL (LiYY-TP) 10X2X0.34 10.7 65.3 171.0 22
83949 Command Cable UL (LiYY-TP) 12X2X0.34 11.3 78.4 194.0 22
83950 Command Cable UL (LiYY-TP) 14X2X0.34 12.1 91.5 222.0 22
83951 Command Cable UL (LiYY-TP) 15X2X0.34 12.7 97.8 231.0 22
83952 Command Cable UL (LiYY-TP) 16X2X0.34 12.7 104.6 240.0 22
83953 Command Cable UL (LiYY-TP) 18X2X0.34 13.6 117.8 264.0 22
83954 Command Cable UL (LiYY-TP) 20X2X0.34 14.4 130.7 291.0 22
83955 Command Cable UL (LiYY-TP) 22X2X0.34 15.1 143.6 300.0 22
83956 Command Cable UL (LiYY-TP) 24X2X0.34 16.2 156.8 359.0 22
83957 Command Cable UL (LiYY-TP) 25X2X0.34 16.7 163.3 381.0 22
83958 Command Cable UL (LiYY-TP) 1X2X0.56 4.6 10.8 60.0 20
83959 Command Cable UL (LiYY-TP) 2X2X0.56 6.5 21.5 80.0 20
83960 Command Cable UL (LiYY-TP) 3X2X0.56 7.1 32.3 94.0 20
83961 Command Cable UL (LiYY-TP) 4X2X0.56 7.8 43.1 104.0 20
83962 Command Cable UL (LiYY-TP) 5X2X0.56 8.6 53.8 130.0 20
83963 Command Cable UL (LiYY-TP) 6X2X0.56 9.6 64.6 151.0 20
83964 Command Cable UL (LiYY-TP) 7X2X0.56 9.6 75.3 174.0 20
83965 Command Cable UL (LiYY-TP) 8X2X0.56 12.1 86.1 262.0 20
83966 Command Cable UL (LiYY-TP) 10X2X0.56 12.5 107.7 298.0 20
83967 Command Cable UL (LiYY-TP) 12X2X0.56 13.1 129.1 302.0 20
83968 Command Cable UL (LiYY-TP) 14X2X0.56 13.8 150.6 327.0 20
83969 Command Cable UL (LiYY-TP) 15X2X0.56 14.7 161.3 370.0 20
83970 Command Cable UL (LiYY-TP) 16X2X0.56 14.7 172.1 402.0 20
83971 Command Cable UL (LiYY-TP) 18X2X0.56 15.7 193.6 480.0 20
83972 Command Cable UL (LiYY-TP) 20X2X0.56 16.7 215.1 551.0 20
83973 Command Cable UL (LiYY-TP) 22X2X0.56 17.2 236.6 621.0 20
83974 Command Cable UL (LiYY-TP) 24X2X0.56 18.6 258.0 703.0 20
83975 Command Cable UL (LiYY-TP) 25X2X0.56 19.2 268.9 721.0 20
European Part-No.
black
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
65214 Command Cable UL (LiYY-TP) 1X2X0.14 3.6 2.7 20.0 26
65215 Command Cable UL (LiYY-TP) 2X2X0.14 5.1 5.4 24.0 26
65216 Command Cable UL (LiYY-TP) 3X2X0.14 5.3 8.1 30.0 26
65217 Command Cable UL (LiYY-TP) 4X2X0.14 5.8 10.8 38.0 26
65218 Command Cable UL (LiYY-TP) 5X2X0.14 6.2 13.6 44.0 26
65219 Command Cable UL (LiYY-TP) 6X2X0.14 6.8 16.2 51.0 26
65220 Command Cable UL (LiYY-TP) 7X2X0.14 6.8 19.0 57.0 26
65221 Command Cable UL (LiYY-TP) 8X2X0.14 7.3 21.7 64.0 26
65222 Command Cable UL (LiYY-TP) 10X2X0.14 7.4 26.7 76.0 26
65223 Command Cable UL (LiYY-TP) 12X2X0.14 9.1 32.6 93.0 26
65224 Command Cable UL (LiYY-TP) 14X2X0.14 9.8 37.4 103.0 26
65225 Command Cable UL (LiYY-TP) 15X2X0.14 10.6 40.7 109.0 26
65226 Command Cable UL (LiYY-TP) 16X2X0.14 10.6 43.4 112.0 26
65227 Command Cable UL (LiYY-TP) 18X2X0.14 11.1 48.5 119.0 26
65228 Command Cable UL (LiYY-TP) 20X2X0.14 11.9 54.2 130.0 26
65229 Command Cable UL (LiYY-TP) 22X2X0.14 12.4 59.3 150.0 26
65230 Command Cable UL (LiYY-TP) 24X2X0.14 13.1 64.7 169.0 26
65231 Command Cable UL (LiYY-TP) 25X2X0.14 13.4 67.2 178.0 26
65232 Command Cable UL (LiYY-TP) 1X2X0.22 3.8 4.8 32.0 24
65233 Command Cable UL (LiYY-TP) 2X2X0.22 4.0 9.7 36.0 24
65234 Command Cable UL (LiYY-TP) 3X2X0.22 5.7 14.7 48.0 24
65235 Command Cable UL (LiYY-TP) 4X2X0.22 2.0 19.6 56.0 24
65236 Command Cable UL (LiYY-TP) 5X2X0.22 6.0 24.6 56.0 24
65237 Command Cable UL (LiYY-TP) 6X2X0.22 7.2 29.3 80.0 24
65238 Command Cable UL (LiYY-TP) 7X2X0.22 7.2 34.1 89.0 24
65239 Command Cable UL (LiYY-TP) 8X2X0.22 7.8 39.1 98.0 24
65240 Command Cable UL (LiYY-TP) 10X2X0.22 9.2 48.9 111.0 24
65241 Command Cable UL (LiYY-TP) 12X2X0.22 9.7 59.4 135.0 24
65242 Command Cable UL (LiYY-TP) 14X2X0.22 10.2 68.7 160.0 24
65243 Command Cable UL (LiYY-TP) 15X2X0.22 10.9 73.7 171.0 24
65244 Command Cable UL (LiYY-TP) 16X2X0.22 10.9 79.1 185.0 24
65245 Command Cable UL (LiYY-TP) 18X2X0.22 11.5 88.9 209.0 24
65246 Command Cable UL (LiYY-TP) 20X2X0.22 12.2 98.4 230.0 24
65247 Command Cable UL (LiYY-TP) 22X2X0.22 13.0 108.6 248.0 24
65248 Command Cable UL (LiYY-TP) 24X2X0.22 7.0 117.9 279.0 24
65249 Command Cable UL (LiYY-TP) 25X2X0.22 13.7 123.5 292.0 24
European Part-No.
black
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
65250 Command Cable UL (LiYY-TP) 1X2X0.34 4.2 6.5 38.0 22
65251 Command Cable UL (LiYY-TP) 2X2X0.34 5.9 13.0 44.0 22
65252 Command Cable UL (LiYY-TP) 3X2X0.34 6.3 19.5 60.0 22
65253 Command Cable UL (LiYY-TP) 4X2X0.34 7.0 26.1 79.0 22
65254 Command Cable UL (LiYY-TP) 5X2X0.34 7.6 32.6 92.0 22
65255 Command Cable UL (LiYY-TP) 6X2X0.34 8.2 39.2 119.0 22
65256 Command Cable UL (LiYY-TP) 7X2X0.34 8.2 45.7 128.0 22
65257 Command Cable UL (LiYY-TP) 8X2X0.34 9.0 52.3 139.0 22
65258 Command Cable UL (LiYY-TP) 10X2X0.34 10.7 65.3 171.0 22
65259 Command Cable UL (LiYY-TP) 12X2X0.34 11.3 78.4 194.0 22
65260 Command Cable UL (LiYY-TP) 14X2X0.34 12.1 91.5 222.0 22
65261 Command Cable UL (LiYY-TP) 15X2X0.34 12.7 97.8 231.0 22
65262 Command Cable UL (LiYY-TP) 16X2X0.34 12.7 104.6 240.0 22
65263 Command Cable UL (LiYY-TP) 18X2X0.34 13.6 117.8 264.0 22
65264 Command Cable UL (LiYY-TP) 20X2X0.34 14.4 130.7 291.0 22
65265 Command Cable UL (LiYY-TP) 22X2X0.34 15.1 143.6 300.0 22
65266 Command Cable UL (LiYY-TP) 24X2X0.34 16.2 156.8 359.0 22
65267 Command Cable UL (LiYY-TP) 25X2X0.34 16.7 163.3 381.0 22
65268 Command Cable UL (LiYY-TP) 1X2X0.56 4.6 10.8 60.0 20
65269 Command Cable UL (LiYY-TP) 2X2X0.56 6.5 21.5 80.0 20
65270 Command Cable UL (LiYY-TP) 3X2X0.56 7.1 32.3 94.0 20
65271 Command Cable UL (LiYY-TP) 4X2X0.56 7.8 43.1 104.0 20
65272 Command Cable UL (LiYY-TP) 5X2X0.56 8.6 53.8 130.0 20
65273 Command Cable UL (LiYY-TP) 6X2X0.56 9.6 64.6 151.0 20
65274 Command Cable UL (LiYY-TP) 7X2X0.56 9.6 75.3 174.0 20
65275 Command Cable UL (LiYY-TP) 8X2X0.56 12.1 86.1 262.0 20
65276 Command Cable UL (LiYY-TP) 10X2X0.56 12.5 107.7 298.0 20
65277 Command Cable UL (LiYY-TP) 12X2X0.56 13.1 129.1 302.0 20
65278 Command Cable UL (LiYY-TP) 14X2X0.56 13.8 150.6 327.0 20
65279 Command Cable UL (LiYY-TP) 15X2X0.56 14.7 161.3 370.0 20
65280 Command Cable UL (LiYY-TP) 16X2X0.56 14.7 172.1 402.0 20
65281 Command Cable UL (LiYY-TP) 18X2X0.56 15.7 193.6 480.0 20
65282 Command Cable UL (LiYY-TP) 20X2X0.56 16.7 215.1 551.0 20
65283 Command Cable UL (LiYY-TP) 22X2X0.56 17.2 236.6 621.0 20
65284 Command Cable UL (LiYY-TP) 24X2X0.56 18.6 258.0 703.0 20
65285 Command Cable UL (LiYY-TP) 25X2X0.56 19.2 268.9 721.0 20
Technical Data European
  • Special PVC command cable, approved to UL-Style 2464,conductors according, UL-Style 1061/1729
  • Temperature Range
    Flexing
    -10°C to +80°C (+14°F to +176°F)
    Fixed Installation
    -20°C to +80°C (-4°F to +176°F)
  • Nominal Voltage 300 V
  • Test Voltage 1500 V
  • Breakdown voltage min. 3000 V
  • Insulation resistance min 100 MOhm x km
  • Minimum bending radius
  • fixed approx. 7.5 cable Ø
    flexing approx. 15 cable Ø
Approvals
RoHSUL CSA UR
Cable Construction
  • Tinned copper, fine wire conductors to ASTM-B 174-95 class J-M
    conductor make-up to
    0.14 mm² = 7x0.162 mm
    0.23 mm² = 7x0.202 mm
    0.34 mm² = 7x0.254 mm
    0.56 mm² = 7x0.32 mm
  • Special PVC conductor insulation class 43, semi rigid to UL-Std. 1581 table 50.182 and 50183
  • Color coded to DIN 47100 with color repetition from pair no. 23 and above or international color code
  • Conductors stranded in pairs with optimal lay-length
  • Pairs stranded in layers with optimal lay-length
  • Separator-foil
  • Special PVC outer jacket class 43 to UL-Std. 1581 table 50.182
  • Outer jacket color
    Black (international color code)
    Gray (DIN 47100 / preferred type)
Application

Twisted pair control cable for use in tool making machinery conveyor system and production lines, in industrial plants and in air conditioning as well as in the steel producing industries.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG

Properties
  • PVC flame retardant according to UL VW-1
  • Conditionally resistant to: oils, solvents, acids, lye
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
quote
Items For Quote


quote
box
Internationally Approved Cables
C.N.O.M.O.
Command Cable UL (LiYCY) 300V
Command Cable UL (LiYCY) 600V
Command Cable UL (LiYCY-TP)
Command Cable UL (LiYY) 300V
Command Cable UL (LiYY) 600V
Command Cable UL (LiYY-TP)
FIVENORM
FROR CEI 20-22 II
H05VV-F/SJT: Black & Gray
H05VV-SJT: Orange
H05VV-F/UL
H07RN-F/SOOW
European BS 5308 Part 1
European BS 5308 Part 2
European BS 5467
European BS 6724
HELUTHERM 145: 300 V
HELUTHERM 145: 600 V
HELUWIND WK 103k EMI D-T, WK 103k-T
HELUWIND WK 103w EMI D-T, WK 103w-T
HELUWIND 105, WK105 D-EMI
HELUWIND WK115 D-EMI Torsion, WK 115-Torsion
JZ-600 PUR
JZ-600 UL/CSA
JZ-600-YC-PUR UL/CSA
JZ-600-Y-CY UL/CSA
JZ-602
JZ-602-CY UL/CSA
JZ-602-PUR
JZ-602-C-PUR
JZ-602-PUR DC/AC
JZ-602 RC
JZ-602 RC-PUR
JZ-602 RC-C-PUR
JZ-602 RC-CY
JZ-603
JZ-603-CY
JZ-604-FCY TC TRAY CABLE
JZ-604-YCY TC TRAY CABLE
JZ-604 TC TRAY CABLE
MEGAFLEX 500
MEGAFLEX 500-C
MOTORFLEX EMV 1/1
MOTORFLEX-X EMV 1/1
MOTORFLEX-EMV 3/3
MULTIFLEX® 512-PUR UL/CSA
MULTIFLEX® 512-C-PUR UL/CSA
MULTIFLEX 600
MULTIFLEX 600-C
MULTISPEED® 500-PUR UL/CSA
MULTISPEED® 500-C-PUR UL/CSA
MULTISPEED® 500-PVC UL/CSA
MULTISPEED® 500-C-PVC UL/CSA
MULTISPEED® 500-TPE UL/CSA
MULTISPEED® 500-C-TPE UL/CSA
MULTISPEED 600-PUR -J/-O
MULTISPEED 600-C-PUR -J/-O
MULTISPEED® TRONIC-PUR
MULTISPEED® TRONIC-C-PUR
OB-602 PUR YELLOW
PVC Single Conductor
ROBOFLEX Recycle
Rubber / Neoprene Control Cable
SiHF UL/CSA
SiHF-C-Si UL/CSA
SINGLE 600 -J/-O
SINGLE 600-CY -J/-O
SINGLE 602-RC -J/-O
SINGLE 602-RC-CY -J/-O
SUPER-PAAR-TRONIC-340-C-PUR
SUPERTRONIC-310-PVC
SUPERTRONIC-310-C-PVC
SUPERTRONIC-330 PURÖ
SUPERTRONIC-C-PURÖ
THHN / THWN
THREENORM
TOPFLEX® 301/301-UL
TOPFLEX® 302/302-UL
TOPFLEX® 304/304-C
TOPFLEX® 1002
TOPFLEX®-MOTOR-EMV 103
TOPFLEX® 600 VFD
TOPFLEX® 650 VFD
TOPGEBER 510
TOPGEBER 512
TOPSERV® 600 VFD
TOPSERV® 650 VFD
TOPSERV® 109
TOPSERV® 113/127
TOPSERV® 121
TOPSERV® 150
TRAYCONTROL 300
TRAYCONTROL 300-C
TRAYCONTROL 300 TP
TRAYCONTROL 300-C TP
TRAYCONTROL 500
TRAYCONTROL 500-C
TRAYCONTROL 600
TRAYCONTROL 600-C
TROMM-PUR-H
UL-Style 1007, CSA TR 64
UL-Style 1015
UL-Style 1569, CSA TR 64
UL-Style 3135
VERTEILERFLEX, 2 Approvals
box
Sealcon is the Exclusive Importer of HUMMEL products. We offer over 6,000 different Types and Sizes of RoHS Compliant Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands, Circular Connectors, Conduit System, Industrial Enclosures and Other Related Cable Management Products which are rated the best in the industry.
7374 S. Eagle Street
Centennial, CO 80112-4221 USA
Toll Free: 800-677-8942 / 303-680-5159 FAX: 303-680-5344
Valid XHTML 1.0 Transitional
To Top of Page Top of Page

Copyright © 2018 Hi-Tech Controls Inc. All Rights Reserved
|Domestic & International Cables|Enclosures |Liquid Tight Strain Relief Fittings & Accessories|
|Circular Connectors|Conduit System|Pneumatics|Cable Index|Enclosure Index|Search|
|Media|Site Map|Company Overview|Contact|Privacy Policy|Copyright Notice|
