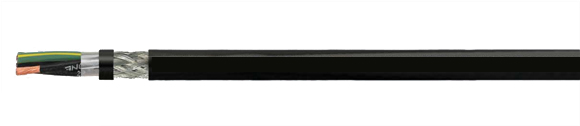

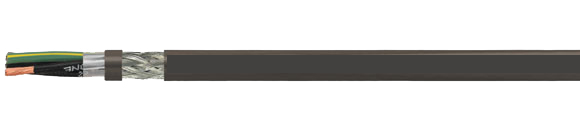

Internationally Approved Cable: TRAYCONTROL 600-C

Flexible, oil-resistant, shielded, EMI preferred type, TRAY CABLE for open installation TC-ER, PLTC-ER, ITC-ER, NFPA 79 Edition 2007

Hi-Tech Controls, Inc, European & Domestic cable

Traycontrol 600-C, Tray Control 600 C, Traycontrol, Tray Control, 63049, 63050, 63051, 63052, 63053, 63054, 63055, 62997, 63056, 63057, 63058, 63059, 63060, 63061, 63062, 63063, 63064, 63065, 63066, 63067, 63068, 63069, 63070, 63071, 63072, 63073, 63074, 63075, 63076, 63077, 63078, Hi-Tech Controls, Hi Tech Controls,
AWG Selection
18 18 16 16 14 14 12 12 10 10
8 8 6 6 4 4 2 2

Part-No.
No. conductors x
cross-sec mm 2
Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
63049 3G1 8.2 31 118 18
63050 4G1 8.8 52 136 18
63051 5G1 9.4 62 149 18
63052 7G1 10.1 83 193 18
63053 12G1 12.9 143 328 18
63054 18G1 15.7 207 431 18
63055 25G1 17.7 284 569 18
62997 3G1.32 8.9 57 144 16
63056 4G1.32 96.0 72 172 16
63057 5G1.32 10.3 84 186 16
63058 7G1.32 11.3 124 243 16
63059 12G1.32 15.1 199 421 16
63060 18G1.32 17.3 290 510 16
63061 25G1.32 19.6 384 704 16
63062 3G2.08 9.8 85 178 14
63063 4G2.08 10.7 115 220 14
63064 5G2.08 11.6 139 264 14
63065 7G2.08 12.5 185 325 14
63066 12G2.08 16.9 309 591 14
63067 18G2.08 19.5 448 780 14
63068 25G2.08 23.3 632 1041 14
63069 4G3.31 12.5 179 313 12
63070 5G3.31 14.4 223 384 12
63071 7G3.31 15.5 298 492 12
63072 4G6 15.5 256 547 10
63073 5G6 16.8 312 608 10
63074 7G6 18.2 430 850 10
63075 4G10 18.7 426 851 8
63076 4G16 23.3 657 1197 6
60377 4G25 28.6 1026 1970 4
63078 4G35 33.2 1412 2874 2
Technical Data
  • PVC power cable according to UL 1277
  • Temperature range
    UL/CSA TC -40C to +90C (-40F to +194F)
    UL/AWM -40C to + 90C (-40F to +194F)
  • Nominal voltage
    TC 600 V
    AWM 1000 V
    WTTC 1 000 V
  • Test voltage 3000 V
  • Coupling resistance
    Max. 250 Ohm/km
  • Minimum bending radius
    approx. 6x cable 0
  • Insulation resistance
    Min. 20 MOhm x km
  • Radiation resistance
    Up to 80x106 cl/kg (up to 80Mrad)
  • Approvals
    • UL: NFPA 79 2007, TC-ER, Class 1 Div. 2 per NEC Art. 501, 336, 392, DP-1, MTW, 90C dry/75C wet, WTTC 1000V, crush impact test in accordance with UL 1277, Oil Res l (Oil Res ll also avilable)
    • AWG 18 - AWG 12 add'l feature:
      PLTC-ER, ITC-ER
    • CSA: CSA AWM l/ll A/B FT4, c(UL) CIC-TC FT4
Approvals
RoHSUL CSA CE
Cable Construction
  • Bare copper conductor, fine wire stranded with AWG dimensions
  • Special PVC conductor insulation with transparent nylon skin
  • Black conductors with continuous white numbering
  • Green-yellow grounding conductor in the outer layer, 3 conductors and above
  • Conductors stranded in layers with optimal lay-lengths
  • Separating foil
  • Braided shielding of tinned copper wires, coverage approx. 85%
  • Separator
  • Special PVC outer jacket
  • Jacket color - black (RAL 9005)
  • With length marking in feet
Application

USA NFPA79, Edition 2007 compliant, shielded, flexible power cable to 600 V (WTTC 1 000 V), for all tool and plant construction machinery, suitable for installation in dry, damp and wet environments, outdoors and in pipes. For underground installation and for open, unprotected installation from the cable tray to the machine and industrial plants.
EMI = Electromagnetic interference. To optimize EMI characteristics, we recommend a large contact area for the copper braiding around the entire circumference on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Material self-extinguishing and flame retardant according to CSA FT4
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances that impair paint wetting
  • UV Resistant
Note
  • Available upon request: TPE outer jacket (105°C)
Cable Accessories
  • Coming Soon!
