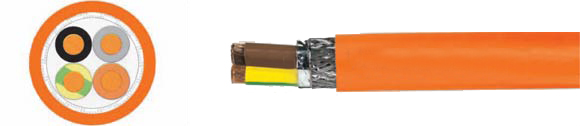

European Internationally Approved Cable: TOPFLEX-MOTOR-EMV 103

Low Capacitance Power Supply Cable, 0.6/1kV, Increased Ampacity, Meter Marking

Hi-Tech Controls, Inc, European & Domestic cable

TOPFLEX-MOTOR-EMV 103, RoHS Approved, RoHS Compliant, Part Numbers - 22689, 22690, 22691, 22692, 22693, 22694, 22695, 22696, 22697, 22698, 22699, 22700, 22701, 22702, 22703, 22704, 22705, 22706, European  , Hi-Tech Controls
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
22689 TOPFLEX®-MOTOR-EMV 103 3x1.5 9.4 72.0 200.0 16
22690 TOPFLEX®-MOTOR-EMV 103 4x1.5 10.4 95.0 230.0 16
22691 TOPFLEX®-MOTOR-EMV 103 5x1.5 11.2 117.0 258.0 16
22692 TOPFLEX®-MOTOR-EMV 103 7x1.5 13.2 148.0 281.0 16
22693 TOPFLEX®-MOTOR-EMV 103 3x2.5 11.2 137.0 270.0 16
22694 TOPFLEX®-MOTOR-EMV 103 4x2.5 12.5 150.0 300.0 16
22695 TOPFLEX®-MOTOR-EMV 103 5x2.5 13.5 200.0 352.0 16
22696 TOPFLEX®-MOTOR-EMV 103 7x2.5 16.0 230.0 473.0 16
22697 TOPFLEX®-MOTOR-EMV 103 4x4 14.2 235.0 485.0 16
22698 TOPFLEX®-MOTOR-EMV 103 5x4 15.4 321.0 567.0 16
22699 TOPFLEX®-MOTOR-EMV 103 7x4 18.2 352.0 603.0 16
22700 TOPFLEX®-MOTOR-EMV 103 4x6 15.2 320.0 633.0 16
22701 TOPFLEX®-MOTOR-EMV 103 5x6 16.8 439.0 679.0 16
22702 TOPFLEX®-MOTOR-EMV 103 7x6 20.0 501.0 771.0 16
22703 TOPFLEX®-MOTOR-EMV 103 4x10 19.5 533.0 860.0 16
22704 TOPFLEX®-MOTOR-EMV 103 5x10 21.6 711.0 1029.0 16
22705 TOPFLEX®-MOTOR-EMV 103 4x16 23.1 789.0 1290.0 16
22706 TOPFLEX®-MOTOR-EMV 103 4x25 27.1 1236.0 1862.0 16
Technical Data European
  • Special motor power supply cable for frequency converters according to UL-AWM style
  • Temperature Range
    Flexing
    -5°C to +70°C (+23°F to +158°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +158°F)
  • Permissible Operating Temperature at conductor +90°C/+194°F
  • Nominal Voltage U0/U 600/1000 V
  • Max. Operating Voltage
    A.C and 3-phase 700/1200 V
    DC Operation 900/1800 V
  • Test Voltage 2500 V
  • Insulation Resistance
    Min. 200 MOhm x km
  • Coupling Resistance
    According to different cross-sections
    Max. 250 Ohm/km
  • Mutual Capacitance
    According to different cross-sections
    Conductor/conductor 70 to 250 nF/km
    Conductor/shield 110 to 410 nF/km
  • Minimum Bending Radius
    Fixed Installation for outer Ø:
    Up to 12 mm: approx. 5x cable Ø
    >12 to 20 mm: approx. 7.5x cable Ø
    >20 mm: approx. 10x cable Ø
    Free-Movement for outer Ø:
    Up to 12 mm: approx. 10x cable Ø
    >12 to 20 mm: approx. 15x cable Ø
    >20 mm: approx. 20x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA AWM
Cable Construction
  • Bare copper, fine wire conductor to DIN VDE 0295 cl. 5, BS 6360 cl. 5 or IEC 60228 cl. 5
  • Special polymer conductor insulation
  • Conductors coded to DIN VDE 0293-308
  • Conductor colors:
    Above 5 conductors color-coded
    7 conductors black with numbering
  • Green-yellow grounding
  • Conductors stranded in concentric layers
  • 1. Shielding with special aluminum film
  • 2. Shielding with copper braiding, tinned copper, coverage approx. 80%
  • Special PVC outer jacket, orange (RAL 2003)
  • With meter marking, change-over in 2009
Application

This UL/CSA motor power supply cable for the frequency converters assures electromagnetic compatibility in plants and buildings, facilities with units and operating equipment where the fields of electromagnetic interference might cause adverse effects on the surroundings. As a supply and connecting cable for medium mechanical stresses in fixed installations and forced movements in dry, moist and wet environments. Used in the automotive and food industries, environmental technology, packaging industry, machine tools. Handling equipment, for SIMOVERT drives, they are particularly suitable for use with industrial pumps, ventilators, conveyer belts and air-conditioning installations and similar applications.
Installation in hazardous areas.
EMC = Electromagnetic Interference
The shield must be connected at both ends and ensure large area contact over the entire cable circumference for compliance with the functional interference requirements of EN 55011.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Behavior in Fire: Test according to DIN VDE 0482 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test type B)
  • Low mutual capacitace, to DIN VDE 0472 part 504, test method B
  • Featured special polymer insulation secures a lower dielectric loss, double potential strength, high longevity and low shield interference currents to include increased current carrying capacity
  • Meets EMI requirements according to EN 5011 and DIN VDE 0875 part 11
  • Low coupling resistance for high electromagnetic compatability
  • This shielded motor supply cable with low mutual capacitance of the single ocnductors because of the special Polymer conductor insulation and los whield capacitance enable a low-loss transmission of the power compared to PVC-jacketed connecting cables
  • Due to teh optimal shielding, an interference-free oparation of frequency converters is obtained
  • Design according to the requirements of VdS 3501:2006-4
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
