European Audio Cable: Video Cables

Camera Cables, Triax 8

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part-No. Structure Conductor Isolation mm Outer Diameter
ca. mm
Copper Weight
kg / km
Weight
ca. kg / km
400073 Triax 8 4.5 8.5 55.0 95
400074 Triax 11 6.5 11.0 80.0 150
400075 Triax 14 9.7 14.4 128.0 235
400076 Triax 8 Flex 4.5 8.5 55.0 105
400077 Triax 11 Flex 6.1 11.2 80.0 160
400078 Triax 14 Flex 9.7 14.4 133.0

250

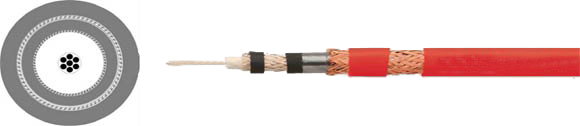

Type: Camera Cable European
Cable Structure Triax 8
Conductor Material: Copper, silvered
Conductor Insulation: PE
Jacket Material: PUR
Cable External Diameter: Approx. 8.5 mm
Jacket Color: Red
Technical Data
Weight: Approx. 95.0 kg/km
Min. Bending Radius for Laying: 80 mm
Operating Temperature Range Min.: -30°C to -22°F
Operating Temperature Range Max.: +80°C to +176°F
Copper Weight: 55.0 kg/km
Electrical Characteristics

Characteristic Immpedance:

75 Ohm/km
Approvals
RoHS
Type: Camera Cable European
Cable Structure Triax 8
Conductor Material: Copper, silvered
Conductor Insulation: PE
Jacket Material: PUR
Cable External Diameter: Approx. 8.5 mm
Jacket Color: Red
Application
The European Triax cable ensures the optimal transmission of image signals. This is possible because of the low attenuation values, thick cross-braided shielding and an especially rugged outer jacket. For the Flex variant, the PVC inner and outer jackets are replaced by TPE to guarantee greater flexibility. The Triax cables are primarily used to connect video cameras and image transmission systems and are suitable for mobile use.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
