European Audio Cable: Audio & Light Cables

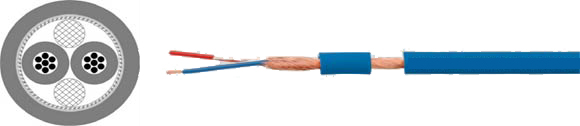

AES/EBU & DMX Patch Cable

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part Number: 400031
Type: DMX Cable European
Cable Structure 2 x 0.22
Conductor Material: Copper, Tinned
Conductor Insulation: PE
Conductor Colors: Red, Blue
Stranding Element: 2 conductors with Textile Filler Stranded
Jacket Material: PVC
Cable External Diameter: Approx. 5.0 mm
Jacket Color: Blue
Technical Data European
Weight: Approx. 33.0 kg/km
Min. Bending Radius for Laying: 50 mm
Operating Temperature Range Min.: -30°C to -22°F
Operating Temperature Range Max.: +70°C to +158°F
Copper Weight: 171.0 kg/km
Electrical Characteristics
Characteristic Impedance: 110.0 Ohm/km
Conductor Resistance Max.: 80 Ohm x km
Insulation Resistance Min.: 5.0 GOhm x km
Approvals
RoHS
Type: DMX Cable European
Cable Structure 2 x 0.22
Conductor Material: Copper, Tinned
Conductor Insulation: PE
Conductor Colors: Red, Blue
Stranding Element: 2 conductors with Textile Filler Stranded
Jacket Material: PVC
Cable External Diameter: Approx. 5.0 mm
Jacket Color: Blue
Application
The 2-conductor HELUSOUND® AES/EBU & DMX patch cable is foil shielded and optimally protected against external interference by its copper spiral screen. This cable is suitable for indoor use for permanent laying for the control of lighting systems or for patching in studio technology.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
