European Audio Cable: Speaker Cables

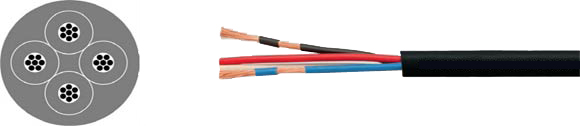

Speaker Cables, Round, Multiconductor

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part Number: 400059
European Part Number: 400060
Type Speaker Cables Speaker Cables
Cable Construction 4 x 2.5 8 x 2.5
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PVC PVC
Conductor Colors: Red, Blue, White, Black Blue, Red, Black, White, Green, Yellow, Gray, Violet
Jacket Material: PVC PVC
Cable External Diameter: approx. 10.0 mm approx. 13.5 mm
Jacket Color: black black
>
Electrical Data European
Conductor Resistance Max.: 7.98 Ohm / km 7.98 Ohm / km
Insulation Resistance Min.: 5.0 MOhm x km 5.0 MOhm x km
Technical Data
Weight: Approximately 176.0 kg/km Approximately 342.0 kg/km
Min. Bending Radius (Laying): 100.0 mm 138.0 mm
Operating Temp.Range, min.: -25°C/-13°F -25°C/-13°F
Operating Temp.Range, max.: +70°C/+158°F +70°C/+158°F
Copper Weight: 100.0 kg/km 200.0 kg/km
Norms
  Halogen-free acc. to EN 50267-2-3 Halogen-free acc. to EN 50267-2-3
Approvals
RoHS
Type Speaker Cables Speaker Cables
Cable Construction 4 x 2.5 8 x 2.5
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PVC PVC
Conductor Colors: Red, Blue, White, Black Blue, Red, Black, White, Green, Yellow, Gray, Violet
Jacket Material: PVC PVC
Cable External Diameter: approx. 10.0 mm approx. 13.5 mm
Jacket Color: black black
Application
The round, multi-conductor HELUSOUND® speaker cable is particularly suitable for mobile use for the connection of multipath systems due to its flexibility, robustness and the good winding capability.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
