European Audio Cable: Audio & Light Cables

AES/EBU & DMX Patch Cable

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part Number: 400032
European Part Number: 400033

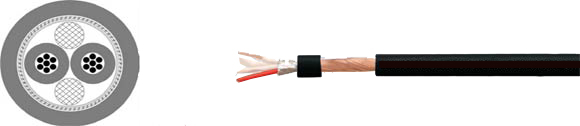

Type DMX Cables DMX Cables
Cable Construction 2 x 0.34 4 x 0.34
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PE PE
Conductor Colors: Red, White White, Green, Brown, Yellow
Stranding Element: 2 conductors with textile filler stranded Star Quad
Jacket Material: PVC PVC
Cable External Diameter: approx. 6.4 mm approx. 7.0 mm
Jacket Color: black black
Electrical Data European
Characteristic Impedance: 110 Ohm 110 Ohm
Conductor Resistance Max.: 53 Ohm / km 53 Ohm / km
Insulation Resistance Min.: 10.0 GOhm x km 5.0 GOhm x km
Technical Data
Weight: Approximately 50.0 kg/km Approximately 65.0 kg/km
Min. Bending Radius (Laying): 64.0 mm 70.0 mm
Operating Temp.Range, min.: -30°C/-22°F -30°C/-22°F
Operating Temp.Range, max.: +70°C/+158°F +70°C/+158°F
Copper Weight: 9.8 kg/km 28.0 kg/km
Approvals
RoHS
Type DMX Cables DMX Cables
Cable Construction 2 x 0.34 4 x 0.34
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PE PE
Conductor Colors: Red, White White, Green, Brown, Yellow
Stranding Element: 2 conductors with textile filler stranded Star Quad
Jacket Material: PVC PVC
Cable External Diameter: approx. 6.4 mm approx. 7.0 mm
Jacket Color: black black
Application
The 2-conductor HELUSOUND® AES / EBU & DMX patch cable is protected against external interference by its copper spiral screen. This cable is suitable for permanent laying for the control of lighting systems or for connecting digital audio amplifiers. It can be installed indoors and outdoors.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
