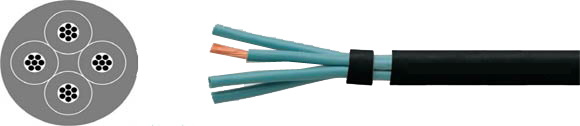

European Audio Cable: Speaker Cables

Speaker Cables, Round, Multiconductor

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part Number: 400079
European Part Number: 400082
Type Speaker Cables Speaker Cables
Cable Construction 4 x 4.0 8 x 4.0
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PVC PVC
Jacket Material: PVC PVC
Cable External Diameter: approx. 11.0 mm approx. 15.6 mm
Jacket Color: black black
>
Electrical Data European
Conductor Resistance Max.: 4.5 Ohm / km 4.5 Ohm / km
Insulation Resistance Min.: 5.0 MOhm x km 5.0 MOhm x km
Technical Data
Weight: Approximately 255.0 kg/km Approximately 550.0 kg/km
Operating Temp.Range, min.: -30°C/-22°F -30°C/-22°F
Operating Temp.Range, max.: +70°C/+158°F +70°C/+158°F
Copper Weight: 154.0 kg/km 307.0 kg/km
Approvals
RoHS
Type Speaker Cables Speaker Cables
Cable Construction 4 x 4.0 8 x 4.0
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PVC PVC
Jacket Material: PVC PVC
Cable External Diameter: approx. 11.0 mm approx. 15.6 mm
Jacket Color: black black
Application
The 4-conductor HELUSOUND® speaker cable is extremely flexible, rugged and treadproof. It can be easily reeled on a drum and it is suitable for mobile stage systems and also for fixed laying in building systems.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
