European Audio Cable: Analog Audio Cables

Audio Cables, Multipaired, Pairs with Foil Shielding

Hi-Tech Controls, Inc, European & Domestic cable

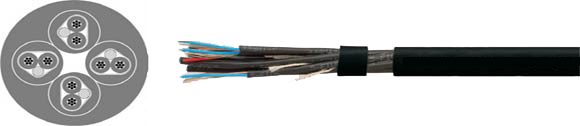

Audio Cables, Multipaired, Pairs with Foil Shielding, 2x2x0.22, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part-No. Structure Outer Diameter
ca. mm
Copper Weight
kg / km
Weight
ca. kg / km
400012 2 x 2 x 0.22 7.6 13.2 72
400013 4 x 2 x 0.22 9.2 26.0 100
400014 8 x 2 x 0.22 12.2 53.0 179
400015 12 x 2 x 0.22

14.2

79.0 248
400016 16 x 2 x 0.22 16.4 106.0 337
400017 20 x 2 x 0.22 18.4 132.0 421
400018 24 x 2 x 0.22 20.4 158.0 493
400019 32 x 2 x 0.22 22.4 211.0 620
400020 40 x 2 x 0.22 24.6 264.0 759
Type: Analog Audio Cables European
Cable Structure 2 x 2 x 0.22
Conductor Material: Copper, Bare
Conductor Insulation: PE
Conductor Colors: Red, Blue
Stranding Element: Pairs Stranded
Drain Wire: Yes
Jacket Material: PVC
Cable External Diameter: Approx. 7.6 mm
Jacket Color: Black
Technical Data
Weight: Approx. 72.0 kg/km
Min. Bending Radius for Laying: 76 mm
Operating Temperature Range Min.: -25°C to -13°F
Operating Temperature Range Max.: +70°C to +158°F
Copper Weight: 13.2 kg/km
Electrical Characteristics
Conductor Resistance Max.: 86.0 Ohm/km
Insulation Resistance Min.: 1.0 GOhm x km
Norms
  • Halogen-Free acc. to EN 50267-2-3
Approvals
RoHS
Type: Analog Audio Cables European
Cable Structure 2 x 2 x 0.22
Conductor Material: Copper, Bare
Conductor Insulation: PE
Conductor Colors: Red, Blue
Stranding Element: Pairs Stranded
Drain Wire: Yes
Jacket Material: PVC
Cable External Diameter: Approx. 7.6 mm
Jacket Color: Black
Application
The HELUSOUND® audio cable is an insulated, multi-conductor audio cable which is shielded symmetrically and in pairs. The cable is particularly sutiable for permanent layig in public buildings, such as, e.g. theatres or music stages and for permanent studio installation.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
