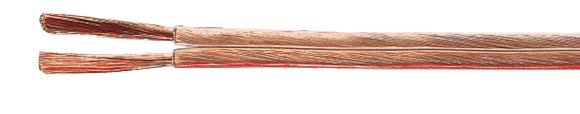

Loudspeaker Cables

PVC Outer Jacket, Copper Litz Wire, Bare, Highly Flexible, Identification: Grooves or Stripes Transparent

Hi-Tech Controls, Inc, European & Domestic cable

Loudspeaker Cables, transparent, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Identification: Grooves

Part-No.
Cross-sec (mm2) Outer
Dimensions (mm)
Insulation (mm) Weight
ca. kg/km
Loop-resistance max. MOhm/m Capacitance pF/m Copper Weight kg/km
40180 2 x 0.5 16 x 0.2 2.1 x 4.7 15.0 70 47 9.6
40181 2 x 0.75 24 x 0.2 2.2 x 4.9 20.0 47 60 14.4
40182 2 x 1.5 28 x 0.25 2.6 x 5.5 37.0 23 67 28.8
40183 2 x 2.5 48 x 0.25 3.3 x 7.0 63.0 14 67 48.0
40184 2 x 4.0 55 x 0.3 4.3 x 8.2 80.0 9 64 76.8

Identification: Stripes, Highly Flexible

Part-No.
Cross-sec (mm2) Outer
Dimensions (mm)
Insulation (mm) Weight
ca. kg/km
Loop-resistance max. MOhm/m Capacitance pF/m Copper Weight kg/km
40185 2 x 1.5 189 x 0.1 3.1 x 6.5 41.0 23 67 28.8
40186 2 x 2.5 322 x 0.1 3.6 x 7.5 60.0 14 53 48.0
40187 2 x 4.0 511 x 0.1 5.0 x 10.2 79.0 9 50 76.8
40188 2 x 6.0 777 x 0.1 6.1 x 12.5 136.0 6 54 115.2
40189 2 x 10.0 1273 x 0.1 7.0 x 15.0 254.0 3 59 192.0
Technical Data
Part Numbers Inductance ÁH/m at
1 kHz 10 kHz 100 kHz 1000 kHz
40180 0.67 0.79 0.85 0.8
40181 0.61 0.73 0.73 0.67
40182 0.54 0.59 0.59 0.52
40183 0.54 0.62 0.62 0.56
40184 0.58 0.65 0.65 0.59
Part Numbers Inductance ÁH/m at
1 kHz 10 kHz 100 kHz 1000 kHz
40185 0.54 0.61 0.62 0.55
40186 0.48 0.55 0.59 0.54
40187 0.49 0.56 0.6 0.56
40188 0.46 0.54 0.56 0.53
40189 0.45 0.53 0.56 0.52
Approvals
RoHS
Cable Construction
Conductor: Copper Litz Wire, Bare
Identification: Grooves / Stripes
Jacket Material: PVC
Outer Jacket Color: Transparent
Note
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Cable Accessories
  • Coming Soon!
