European Audio Cable: Speaker Cables

Speaker Cables, Coaxial

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part Number: 400061
European Part Number: 400062
Type Speaker Cables Speaker Cables
Cable Construction 1 x 2.5 1 x 4.0
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PVC PVC
Conductor Colors: Black Black
Jacket Material: PVC PVC
Cable External Diameter: approx. 6.8 mm approx. 7.9 mm
Jacket Color: black black
>
Electrical Data
Conductor Resistance Max.: 7.98 Ohm / km 4.95 Ohm / km
Insulation Resistance Min.: 5.0 MOhm x km 5.0 MOhm x km
Technical Data
Weight: Approximately 84.0 kg/km Approximately 129.0 kg/km
Min. Bending Radius for Laying: 68 mm 80 mm
Operating Temp.Range, min.: -25°C/-13°F -25°C/-13°F
Operating Temp.Range, max.: +70°C/+158°F +70°C/+158°F
Copper Weight: 52.0 kg/km 87.0 kg/km
Norms
  Halogen-free acc. to EN 50267-2-3 Halogen-free acc. to EN 50267-2-3
Approvals
RoHS
Type Speaker Cables Speaker Cables
Cable Construction 1 x 2.5 1 x 4.0
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PVC PVC
Conductor Colors: Black Black
Jacket Material: PVC PVC
Cable External Diameter: approx. 6.8 mm approx. 7.9 mm
Jacket Color: black black
Application

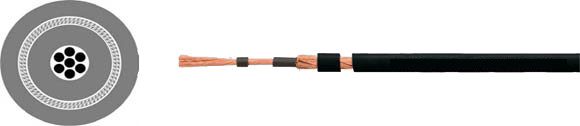

The coaxial HELUSOUND® speaker cable is protected by dual spiral shields in opposite directions and outer jacket. As well as robustness and good winding capability its design is particularly distinguished by high flexibility and small dimensions.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
