European Audio Cable: Analog Audio Cables

Audio Cables with Foil Shielding, Single Pair

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Audio Cables with Foil Shielding, Single Pair, 2x0.22, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part Number: 400011
Type: Analog Audio Cables European

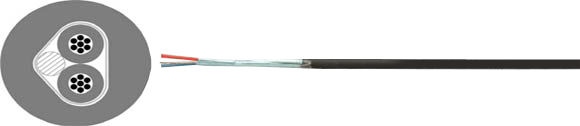

Cable Structure 2 x 0.22
Conductor Material: Copper, Tinned
Conductor Insulation: PE
Conductor Colors: Red, Blue
Stranding Element: Pairs Stranded
Jacket Material: PVC
Cable External Diameter: Approx. 3.4 mm
Jacket Color: Black
Technical Data
Weight: Approx. 17.0 kg/km
Min. Bending Radius for Laying: 35 mm
Operating Temperature Range Min.: -25°C to -13°F
Operating Temperature Range Max.: +70°C to +158°F
Copper Weight: 6.6 kg/km
Electrical Characteristics
Conductor Resistance Max.: 86.0 Ohm/km
Insulation Resistance Min.: 1.0 GOhm x km
Norms
  • Halogen-Free acc. to EN 50267-2-3
Approvals
RoHS
Type: Analog Audio Cables European
Cable Structure 2 x 0.22
Conductor Material: Copper, Tinned
Conductor Insulation: PE
Conductor Colors: Red, Blue
Stranding Element: Pairs Stranded
Jacket Material: PVC
Cable External Diameter: Approx. 3.4 mm
Jacket Color: Black
Application
The 2-conductor HELUSOUND® audio cable is a foil shielded cable with earth conductor. This symmetrical cable is suitable for use in racks and for studio cabling.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
