European Audio Cable: Audio & Light Cables

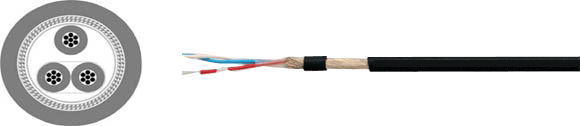

DMX Cables, Multi-Conductor with Spiral Screen

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part Number: 400035
Type: DMX Cable European
Cable Structure 2 x 0.22 + 0.22
Conductor Material: Copper, Tinned
Conductor Insulation: PE spumed
Conductor Colors: White, Blue/Red
Stranding Element: Pairs and Conductor Stranded Together
Jacket Material: PVC
Cable External Diameter: Approx. 6.4 mm
Jacket Color: Black
Technical Data European
Weight: Approx. 79.0 kg/km
Min. Bending Radius for Laying: 64 mm
Operating Temperature Range Min.: -25°C to -13°F
Operating Temperature Range Max.: +70°C to +158°F
Copper Weight: 66.0 kg/km
Electrical Characteristics to top up arrow
Characteristic Impedance: 110.0 Ohm/km
Conductor Resistance Max.: 86 Ohm x km
Insulation Resistance Min.: 1.0 MOhm x km
Norms to top up arrow
Halogen-free acc. to EN 50267-2-3
Approvals
RoHS
Type: DMX Cable European
Cable Structure 2 x 0.22 + 0.22
Conductor Material: Copper, Tinned
Conductor Insulation: PE spumed
Conductor Colors: White, Blue/Red
Stranding Element: Pairs and Conductor Stranded Together
Jacket Material: PVC
Cable External Diameter: Approx. 6.4 mm
Jacket Color: Black
Application
The 3-conductor, shielded HELUSOUND® digital sound cable consists of a symmetrical pair and an additional third conductor. A double spiral screen and the PVC outer jacket protect the cable against electrical interference. This AES/EBU and DMX compliant (110 Ohm) special cable is suitable for the transmission of digital audio signals and can therefore, for example, be used for connecting digital mixers, audio amplifiers, DAT recorders, light and scanner systems, etc.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
