Controls European Audio Cable: Analog Audio Cables

Audio Cables with Braided Shielding

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Audio Cables with Braided Shielding, 2x0.25 + 0.25, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part-No. Structure Conductor Resistance
Ohm/km
Outer Diameter
ca. mm
Copper Weight
kg / km
Weight
ca. kg / km
400000 2 x 0.25 + 0.25 <75.0 3.4 13.5 20
400001 2 x 0.33 + 0.33 <60.0 4.0 16.3 26
400002 2 x 0.5 + 0.33 <36.8 5.6 26.1 49
Type: Analog Audio Cables European

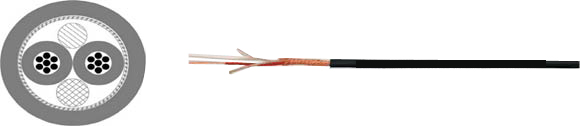

Cable Structure 2 x 0.25 + 0.25
Conductor Material: Copper, Bare
Conductor Insulation: PVC
Conductor Colors: Red, White
Stranding Element: 2 Conductors with 1 Filler and 1 Earth Conductor, Stranded
Drain Wire: Yes
Jacket Material: PVC
Cable External Diameter: Approx. 3.4 mm
Jacket Color: Black

Electrical Characteristics European
Conductor Resistance Max.: 75 Ohm/km
Insulation Resistance Min.: 5.0 MOhm x km
Norms
  • Halogen-Free acc. to EN 50267-2-3
Technical Data
Weight: Approx. 20.0 kg/km
Min. Bending Radius for Laying: 35 mm
Operating Temperature Range Min.: -25°C to -13°F
Operating Temperature Range Max.: +70°C to +158°F
Copper Weight: 13.5 kg/km
Approvals
RoHS
Type: Analog Audio Cables European
Cable Structure 2 x 0.25 + 0.25
Conductor Material: Copper, Bare
Conductor Insulation: PVC
Conductor Colors: Red, White
Stranding Element: 2 Conductors with 1 Filler and 1 Earth Conductor, Stranded
Drain Wire: Yes
Jacket Material: PVC
Cable External Diameter: Approx. 3.4 mm
Jacket Color: Black
Application
  • The HELUSOUND® audio cable is a 2-conductor, shielded multipurpose cable with ground conductor. It is particularly suitable for use in microphone, radio, studio and transmission systems.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
