Hi-Tech Controls European Audio Cable: Analog Audio Cables

Audio Cables, Multipaired, Pairs with Foil Shielding

Hi-Tech Controls, Inc, European & Domestic cable

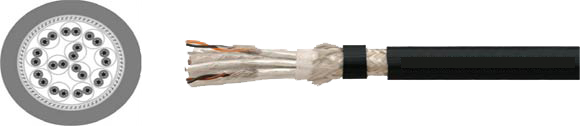

Audio Cables, Multipaired, Spirally Shielded Pairs and Overall Braided Shielding, 12x2x0.14, 16x2x0.14, RoHS Approved, RoHS Compliant, 400042, 400043, Hi-Tech Controls, European
European Part Number: 400042
European Part Number: 400043
Type Analog Audio Cables Analog Audio Cables
Cable Construction 12 x 2 x 0.14 16 x 2 x 0.14
Conductor Material: Copper, tinned Copper, tinned
Conductor Insulation: TPE TPE
Stranding Element: Pairs stranded Pairs stranded
Jacket Material: PUR PUR
Cable External Diameter: approx. 12.7 mm approx. 14.1 mm
Jacket Color: black black
Electrical Data
Conductor Resistance Max.: 150 Ohm / km min. 150 Ohm / km min.
Insulation Resistance Min.: 100.0 MOhm 100.0 MOhm
Technical Data
Weight: Approximately 190.0 kg/km Approximately 247.0 kg/km
Min. Bending Radius (Laying): 127.0 mm 142.0 mm
Operating Temp.Range, min.: -25°C/-13°F -25°C/-13°F
Operating Temp.Range, max.: +70°C/+158°F +70°C/+158°F
Copper Weight: 118.0 kg/km 165.0 kg/km
Norms
  Halogen-free acc. to 60754-2 Halogen-free acc. to 60754-2
Approvals
RoHS
Type Analog Audio Cables Analog Audio Cables
Cable Construction 12 x 2 x 0.14 16 x 2 x 0.14
Conductor Material: Copper, tinned Copper, tinned
Conductor Insulation: TPE TPE
Stranding Element: Pairs stranded Pairs stranded
Jacket Material: PUR PUR
Cable External Diameter: approx. 12.7 mm approx. 14.1 mm
Jacket Color: black black
Application
The multipaired HELUSOUND® special sound audio cable has individually shielded pairs and is protected by an additional braided shielding and ribbed PUR jacket. This cable is particularly suitable for use in mobile radio and transmission systems.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
