European Audio Cable: Microphone Cables

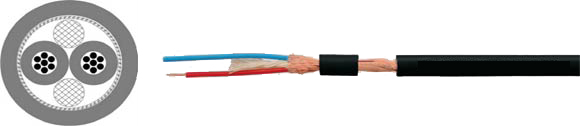

Microphone Cables with Spiral Shield, Paired

Hi-Tech Controls, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Hi-Tech Controls, European
European Part Number: 400038
European Part Number: 400039
Type Microphone Cables Microphone Cables
Cable Construction 2 x 0.22 2 x 0.15
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PE PVC
Conductor Colors: Red, Blue Red, White
Stranding Element: Pairs Stranded Pairs Stranded
Jacket Material: PVC PVC
Cable External Diameter: approx. 6.0 mm approx. 4.2 mm
Jacket Color: black black
>
Electrical Data
Conductor Resistance Max.: 86 Ohm / km 120 Ohm / km
Insulation Resistance Min.: 1.0 GOhm x km 1.0 GOhm x km
Technical Data
Weight: Approximately 43.0 kg/km Approximately 27.0 kg/km
Min. Bending Radius (Laying): 60.0 mm 42.0 mm
Operating Temp.Range, min.: -25°C/-13°F -25°C/-13°F
Operating Temp.Range, max.: +70°C/+158°F +70°C/+158°F
Copper Weight: 11.3 kg/km 14.0 kg/km
Norms
  Halogen-free acc. to EN
50267-2-3
Halogen-free acc. to EN 50267-2-3
Approvals
RoHS
Type Microphone Cables Microphone Cables
Cable Construction 2 x 0.22 2 x 0.15
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PE PVC
Conductor Colors: Red, Blue Red, White
Stranding Element: Pairs Stranded Pairs Stranded
Jacket Material: PVC PVC
Cable External Diameter: approx. 6.0 mm approx. 4.2 mm
Jacket Color: black black
Application
The 2-conductor HELUSOUND® microphone cable with spiral shield is suitable for use in professional stage and studio operation. The microphone cable 2x0.15 has a double spiral shield made of bare copper wires.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
