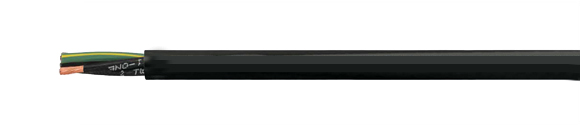

Helukabel Internationally Approved Cable: TRAYCONTROL 600
Flexible and Oil Resistant Tray Cable for open installation, TC-ER, PLTC-ER, NFPA 79 Edition 2007, No Conduit Needed

Hi-Tech Controls, Inc, HELUKABEL wires and cables

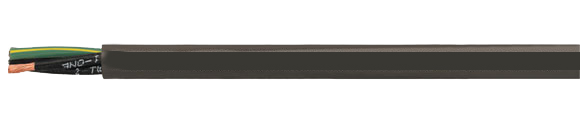

Traycontrol 600, Traycontrol, Flexible, shielded, International Approvals, UL, CSA, 62902, 62903, 62904, 62905, 62906, 62907, 62908, 62909, 62910, 62911, 62912, 62913, 62914, 62915, 62916, 62917, 62918, 62919, 62920, 62921, 62922, 62923, 62924, 62925, 62926, 62927, 62928, 62929, 62930, 62931, 62932, 62933, 62934, 62935, 62936, 62937, 62938, 62939, 62940, 62941, 62942, 62943, 62944, 62945, 62946, 62947, 62948, 62949, 62950, 62951, 62952, 62953, 62954, 62955, 62956, 62957, 62958, 62959, 62960, 62961, 62962, 62963, 62964, 62965, 62966, 62967, 62968, 62969, 62970, 62971, 62972, 62973, 62974, 62975, 62976, 62977, 62978, 62979, 62980, 62981, 62982, 62983, 62984, 62985, 62986, 62987, 62988, 62989, 62990, 62991, 62992, 62993, 62994, 62995, 62996, Hi-Tech Controls, Helukabel
AWG Selection
18 18 16 16 14 14 12 12 10 10 8 8
6 6 4 4 2 2 1 1 2/0 1/0 3/0 2/0
4/0 3/0 4/0 4/0 4 250 kcmil 4 350 kcmil 4 500 kcmil
Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)		 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
62902 TRAYCONTROL 600 1 2 7.0 19 68 18
62903 TRAYCONTROL 600 1 3 7.1 29 88 18
62904 TRAYCONTROL 600 1 4 8.0 38 98 18
62905 TRAYCONTROL 600 1 5 8.6 48 116 18
62906 TRAYCONTROL 600 1 7 9.3 67 149 18
62907 TRAYCONTROL 600 1 9 10.7 86 186 18
62908 TRAYCONTROL 600 1 10 11.6 96 199 18
62909 TRAYCONTROL 600 1 12 11.9 115 245 18
62910 TRAYCONTROL 600 1 15 13.2 132 292 18
62911 TRAYCONTROL 600 1 16 13.3 154 306 18
62912 TRAYCONTROL 600 1 18 14.6 173 366 18
62913 TRAYCONTROL 600 1 19 14.7 182 384 18
62914 TRAYCONTROL 600 1 25 17.0 240 451 18
62915 TRAYCONTROL 600 1 27 17.4 259 521 18
62916 TRAYCONTROL 600 1 34 19.3 326 625 18
62917 TRAYCONTROL 600 1 37 19.8 355 684 18
62918 TRAYCONTROL 600 1 41 20.7 384 744 18
62919 TRAYCONTROL 600 1 50 23.5 480 933 18
62920 TRAYCONTROL 600 1 61 24.9 586

1095

 18
62921 TRAYCONTROL 600 1.32 2 7.5 25 80 16
62922 TRAYCONTROL 600 1.32 3 7.8 35 86 16
62923 TRAYCONTROL 600 1.32 4 8.5 47 115 16
62924 TRAYCONTROL 600 1.32 5 9.3 58 126 16
62925 TRAYCONTROL 600 1.32 6 10.0 70 164 16
62926 TRAYCONTROL 600 1.32 7 10.1 81 164 16
62927 TRAYCONTROL 600 1.32 8 10.9 89 201 16
62928 TRAYCONTROL 600 1.32 9 11.7 105 237 16
62929 TRAYCONTROL 600 1.32 10 12.4 117 259 16
62930 TRAYCONTROL 600 1.32 12 12.9 139 301 16
62931 TRAYCONTROL 600 1.32 14 14.5 177 365 16
62932 TRAYCONTROL 600 1.32 15 15.0 179 379 16
62933 TRAYCONTROL 600 1.32 16 15.2 186 405 16
62934 TRAYCONTROL 600 1.32 18 15.9 225 443 16
62935 TRAYCONTROL 600 1.32 19 16.0 228 458 16
62936 TRAYCONTROL 600 1.32 20 16.5 233 491 16
62937 TRAYCONTROL 600 1.32 25 18.6 291 564 16
62938 TRAYCONTROL 600 1.32 27 19.0 337 629 16
62939 TRAYCONTROL 600 1.32 30 19.6 397 701 16
62940 TRAYCONTROL 600 1.32 34 20.5 420 775 16
62941 TRAYCONTROL 600 1.32 40 22.9 482 946 16
62942 TRAYCONTROL 600 1.32 41 23.4 513 967 16
62943 TRAYCONTROL 600 1.32 50 25.1 626 1137 16
62944 TRAYCONTROL 600 1.32 61 27.2 762 1345 16
Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)		 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
62945 TRAYCONTROL 600 2.08 2 8.6 41 100 14
62946 TRAYCONTROL 600 2.08 3 8.9 55 112 14
62947 TRAYCONTROL 600 2.08 4 9.8 74 141 14
62948 TRAYCONTROL 600 2.08 5 10.6 92 152 14
62949 TRAYCONTROL 600 2.08 6 11.6 112 216 14
62950 TRAYCONTROL 600 2.08 7 11.5 130 205 14
62951 TRAYCONTROL 600 2.08 9 13.5 167 312 14
62952 TRAYCONTROL 600 2.08 10 15.5 186 378 14
62953 TRAYCONTROL 600 2.08 12 15.9 223 434 14
62954 TRAYCONTROL 600 2.08 16 17.6 297 550 14
62955 TRAYCONTROL 600 2.08 18 18.3 371 616 14
62956 TRAYCONTROL 600 2.08 19 18.5 380 634 14
62957 TRAYCONTROL 600 2.08 25 21.6 465 817 14
62958 TRAYCONTROL 600 3.31 2 9.5 69 132 12
62959 TRAYCONTROL 600 3.31 3 10.0 88 177 12
62960 TRAYCONTROL 600 3.31 4 10.9 119 201 12
62961 TRAYCONTROL 600 3.31 5 11.9 148 274 12
62962 TRAYCONTROL 600 3.31 6 13.0 177 315 12
62963 TRAYCONTROL 600 3.31 7 13.1 207 353 12
62964 TRAYCONTROL 600 3.31 9 15.9 265 476 12
62964 TRAYCONTROL 600 3.31 12 17.8 355 613 12
62966 TRAYCONTROL 600 3.31 16 19.8 472 783 12
62967 TRAYCONTROL 600 3.31 19 20.8 560 918 12
62968 TRAYCONTROL 600 3.31 20 21.9 590 961 12
62969 TRAYCONTROL 600 3.31 25 25.3 738 1236 12
Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Number of Conductors
(includes ground)		 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
62970 TRAYCONTROL 600 6 2 11.9 102 213 10
62971 TRAYCONTROL 600 6 3 12.6 141 283 10
62972 TRAYCONTROL 600 6 4 14.7 188 387 10
62973 TRAYCONTROL 600 6 5 16.0 235 473 10
62974 TRAYCONTROL 600 6 7 17.4 328 607 10
62975 TRAYCONTROL 600 6 9 20.4 422 771 10
62976 TRAYCONTROL 600 6 12 23.9 563 1061 10
62977 TRAYCONTROL 600 6 19 27.9 891 1528 10
62978 TRAYCONTROL 600 10 4 19.7 338 662 8
62979 TRAYCONTROL 600 10 5 21.7 422 784 8
62980 TRAYCONTROL 600 16 3 19.5 407 701 6
62981 TRAYCONTROL 600 16 4 21.9 542 908 6
62982 TRAYCONTROL 600 16 5 24.0 677 1149 6
62983 TRAYCONTROL 600 25 3 24.3 560 1061 4
62984 TRAYCONTROL 600 25 4 27.1 746 1366 4
62985 TRAYCONTROL 600 25 5 29.3 932 1631 4
62986 TRAYCONTROL 600 35 3 27.9 883 1480 2
62987 TRAYCONTROL 600 35 4 31.4 1177 1922 2
62988 TRAYCONTROL 600 35 5 34 1470 2363 2
62989 TRAYCONTROL 600 42.3 4 34.8 360 2397 1
62990 TRAYCONTROL 600 52.9 4 37.9 441 2938 1/0
62991 TRAYCONTROL 600 67.3 4 41.3 584 3559 2/0
62992 TRAYCONTROL 600 84.8 4 48.6 741 4181 3/0
62993 TRAYCONTROL 600 106.7 4 51.2 932 5747 4/0
62994 TRAYCONTROL 600 128.4 4 55.0 1088 7591 250 kcmil
62995 TRAYCONTROL 600 181.9 4 63.5 1539 8299 350 kcmil
62996 TRAYCONTROL 600 257.6 4 73.7 2172 10549 500 kcmil
Traycontrol 600 Application Picture
Technical Data Helukabel
  • PVC Power Cable according to UL 1277
  • Temperature Range
    UL/CSA TC
    -40°C to +90°C (-40°F to +194°F)
    UL/AWM
    -40°C to +90°C (-13°F to +194°F)
  • Nominal Voltage
    TC 600 V
    AWM 1000 V
    TC Wind Turbine (WTTC) 1000 V
  • Test Voltage 3000 V
  • Minimum Bending Radius
    Approx. 5x Ø
  • Insulation Resistance
    Min. 20 MOhm x km
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80Mrad)
 Approvals
  • UL: NFPA 79 2007, TC-ER, Class 1 Div. 2 per NEC Art. 501, 336, 392, DP-1, MTW, 90°C dry/75°C wet, WTTC 1000V, crush impact test in accordance with UL 1277, Oil Res l (Oil Res ll also avilable)
  • AWG 18 - AWG 12 add'l feature:
    PLTC-ER, ITC-ER
  • CSA: CSA AWM l/ll A/B FT4, c(UL) CIC-TC FT4
Approvals
RoHSUL CSA CE
Cable Construction
  • Bare copper, fine wire stranded with AWG dimensions
  • Special black PVC conductor insulation with clear nylon coating
  • Black conductors with continuous white numbering plus green-yellow ground
  • Conductors stranded in layers with optimal lay-lengths
  • Separator
  • Special PVC outer jacket
  • Jacket color - Black (RAL 9005)
  • With length marking in feet
Application

USA NFPA79, Edition 2007 compliant flexible power cables to 600 V (WTTC 1000 V), for all machinery in tool and plant construction, suitable for installation in dry, damp and wet environments, outdoors and in pipes. For underground installation and for open, unprotected installation from the cable tray to the machine and industrial plants.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Material self-extinguishing and flame retardant according to CSA FT4
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances that impair paint wetting
  • UV Resistant
Note
  • Available upon request: TPE outer jacket (105°C)
Cable Accessories
  • Coming Soon!
