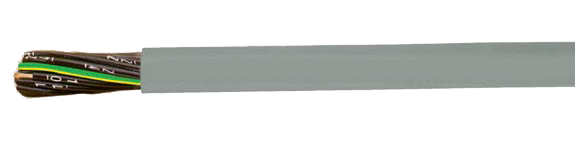

Control Cable: JZ-750

Flexible, Number Coded, 750 V

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls,  - JZ-750, Number coded, Flexible, 750V, Special PVC Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
10800 JZ-750 2x0.5

5.7

9.6 48.0 20
10801 JZ-750 3G0.5 6.0 14.5 65.0 20
10802 JZ-750 4G0.5 6.8 20.0 81.0 20
10803 JZ-750 5G0.5 7.4 24.0 98.0 20
10804 JZ-750 7G0.5 8.3 34.0 123.0 20
10805 JZ-750 8G0.5 9.1 38.0 155.0 20
10806 JZ-750 10G0.5 10.0 48.0 180.0 20
10807 JZ-750 12G0.5 11.8 58.0 208.0 20
10808 JZ-750 14G0.5 11.7 67.0 248.0 20
10809 JZ-750 16G0.5 12.5 76.0 260.0 20
10810 JZ-750 18G0.5 13.2 87.0 285.0 20
10811 JZ-750 21G0.5 13.8 96.0 375.0 20
10812 JZ-750 25G0.5 15.5 118.0 400.0 20
10813 JZ-750 30G0.5 16.6 144.0 475.0 20
10814 JZ-750 40G0.5 18.7 192.0 590.0 20
10815 JZ-750 50G0.5 21.5 240.0 710.0 20
10816 JZ-750 61G0.5 23 293.0 880.0 20
10817 JZ-750 2x0.75  6.2 15.0 60.0 18
10818 JZ-750 3G0.75 6.5 22.0 78.0 18
10819 JZ-750 4G0.75 7.3 29.0 104.0 18
10820 JZ-750 5G0.75 8.0 36.0 116.0 18
10821 JZ-750 7G0.75 8.9 51.0 148.0 18
10822 JZ-750 8G0.75 9.6 58.0 160.0 18
10823 JZ-750 10G0.75 10.7 72.0 195.0 18
10824 JZ-750 12G0.75 11.6 87.0 248.0 18
10825 JZ-750 15G0.75 13.2 108.0 295.0 18
10826 JZ-750 18G0.75 14.1 130.0 346.0 18
10827 JZ-750 21G0.75 14.8 151.0 395.0 18
10828 JZ-750 25G0.75 16.6 180.0 505.0 18
10829 JZ-750 34G0.75 19.3 245.0 684.0 18
10830 JZ-750 41G0.75 20.9 296.0 780.0 18
10831 JZ-750 50G0.75 22.9 360.0 940.0 18
10832 JZ-750 61G0.75 24.5 440.0 1125.0 18
10833 JZ-750 2x1  6.6 20.0 80.0 17
10834 JZ-750 3G1 7.0 29.0 92.0 17
10835 JZ-750 3x1 7.0 29.0 92.0 17
10836 JZ-750 4G1 7.8 39.0 122.0 17
10837 JZ-750 4x1 7.8 39.0 122.0 17
10838 JZ-750 5G1 8.6 48.0 137.0 17
10839 JZ-750 7G1 9.5 68.0 186.0 17
10840 JZ-750 7x1 9.5 68.0 186.0 17
10841 JZ-750 8G1 10.3 77.0 240.0 17
10842 JZ-750 12G1 12.7 116.0 293.0 17
10843 JZ-750 14G1 13.4 134.0 340.0 17
10844 JZ-750 16G1 14.4 154.0 400.0 17
10845 JZ-750 18G1 15.1 173.0 437.0 17
10846 JZ-750 21G1 16.1 205.0 505.0 17
10847 JZ-750 25G1 18.0 240.0 606.0 17
10848 JZ-750 34G1 20.9 326.0 770.0 17
10849 JZ-750 41G1 22.5 394.0 880.0 17
10850 JZ-750 50G1 24.8 480.0 1400.0 17
10851 JZ-750 61G1 26.5 586.0 1450.0 17
10852 JZ-750 2x1.5  7.2 29.0 90.0 16
10853 JZ-750 3G1.5 7.8 43.0 120.0 16
10854 JZ-750 3x1.5 7.8 43.0 120.0 16
10855 JZ-750 4G1.5 8.5 58.0 150.0 16
10856 JZ-750 4x1.5 8.5 58.0 155.0 16
10857 JZ-750 5G1.5 9.6 72.0 177.0 16
10858 JZ-750 7G1.5 10.4 101.0 220.0 16
10859 JZ-750 8G1.5 11.4 115.0 248.0 16
10860 JZ-750 9G1.5 12.5 130.0 278.0 16
10861 JZ-750 12G1.5 14.1 173.0 364.0 16
10862 JZ-750 14G1.5 14.9 202.0 390.0 16
10863 JZ-750 16G1.5 16.0 230.0 490.0 16
10864 JZ-750 18G1.5 17.0 259.0 550.0 16
10865 JZ-750 21G1.5 18.0 302.0 670.0 16
10866 JZ-750 25G1.5 20.2 360.0 745.0 16
10867 JZ-750 32G1.5 22.6 461.0 810.0 16
10868 JZ-750 34G1.5 23.4 490.0 1010.0 16
10869 JZ-750 42G1.5 25.5 605.0 1115.0 16
10870 JZ-750 50G1.5 27.9 720.0 1430.0 16
10871 JZ-750 61G1.5 30.0 878.0 1750.0 16
10872 JZ-750 2x2.5  8.6 48.0 110.0 14
10873 JZ-750 3G2.5 9.3 72.0 190.0 14
10874 JZ-750 4G2.5 10.2 96.0 240.0 14
10875 JZ-750 5G2.5 11.4 120.0 270.0 14
10876 JZ-750 7G2.5 12.6 168.0 350.0 14
10877 JZ-750 12G2.5 16.9 288.0 600.0 14
10878 JZ-750 14G2.5 18.2 336.0 870.0 14
10879 JZ-750 18G2.5 20.4 432.0 1050.0 14
10880 JZ-750 25G2.5 24.4 600.0 1170.0 14
Technical Data
  • Special PVC control cables
  • Requirements adapted to DIN VDE 0281 part 13 and IEC 60227/7
  • identical with H05VV-F to VDE 0281 part 13 and IEC 60227/7 type 227 IEC 75, but without increased oil resistant outer jacket
  • Temperature range
    Flexing
    -5C to +80C (+23F to +176F)
    Fixed Installation
    -40C to +80C (-40F to +176F)
  • Nominal voltage U0/U 450/750 V
  • Test voltage 4000 V
  • Breakdown voltage min. 8000 V
  • Insulation resistance
    Min. 20 MOhm x km
  • Minimum bending radius
    Flexing 7.5x cable
    Fixed Installation 4x cable
  • Radiation resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE ipa VDE
Cable Construction
  • Bare copper, fine wire conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2, to DIN VDE 0281 part 1
  • Black conductors with white figure imprints to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special PVC, outer jacket TM2, to DIN VDE 0281 part 1
  • Color: gray (RAL 7001)
Application
These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, wherever internationally recognized PVC cables are required. E.g. as a control or measurements cable on industrial machinery, on conveyor systems or in industrial plants, etc. The number coding has been brought onto the conductors in such a way that it is easily identifiable and the conductor numbers are individually underlined to avoid confusion. The green-yellow grounding is laid in the outer layer.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
  • Clean room qualification tested with analog type. Please note "clean room qualified" when ordering.
Cable Accessories
  • Coming Soon!
