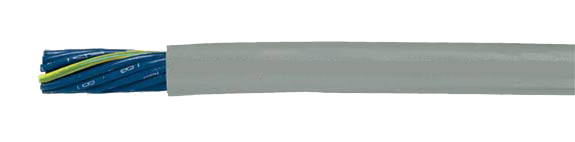

Control Cable: JZ-500

Flexible, Number Coded, Blue Conductors, VDE Reg. No. 7032

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls,  - JZ-500, Blue Conductors, Flexible, Number coded, Special PVC Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14
12
12
10
10

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Copper weight
kg/km
Weight
ca. kg/km
AWG
10200 JZ-500, blue conductors 2x0.5  4.9 9.6 40.0 20
10201 JZ-500, blue conductors 3G0.5 5.2 14.4 46.0 20
10202 JZ-500, blue conductors 4G0.5 5.6 19.0 56.0 20
10203 JZ-500, blue conductors 5G0.5 6.3 24.0 65.0 20
10205 JZ-500, blue conductors 7G0.5 6.9 33.6 80.0 20
10206 JZ-500, blue conductors 8G0.5 8.1 38.0 97.0 20
10208 JZ-500, blue conductors 12G0.5 9.2 58.0 135.0 20
10209 JZ-500, blue conductors 14G0.5 9.7 67.0 150.0 20
10210 JZ-500, blue conductors 18G0.5 11.0 86.0 196.0 20
10211 JZ-500, blue conductors 20G0.5 11.5 96.0 215.0 20
10212 JZ-500, blue conductors 21G0.5 12.2 96.0 240.0 20
10213 JZ-500, blue conductors 25G0.5 13.3 120.0 270.0 20
10214 JZ-500, blue conductors 30G0.5 13.8 144.0 310.0 20
10215 JZ-500, blue conductors 32G0.5 14.3 154.0 323.0 20
10216 JZ-500, blue conductors 34G0.5 15.1 163.0 362.0 20
10220 JZ-500, blue conductors 61G0.5 19.2 293.0 625.0 20
10223 JZ-500, blue conductors 100G0.5 24.3 480.0 980.0 20
10224 JZ-500, blue conductors 2x0.75  5.3 14.4 46.0 18
10225 JZ-500, blue conductors 3G0.75 5.6 21.6 54.0 18
10226 JZ-500, blue conductors 4G0.75 6.3 29.0 66.0 18
10227 JZ-500, blue conductors 5G0.75 6.9 36.0 80.0 18
10229 JZ-500, blue conductors 7G0.75 7.7 50.0 110.0 18
10232 JZ-500, blue conductors 10G0.75 9.8 72.0 162.0 18
10233 JZ-500, blue conductors 12G0.75 10.0 86.0 179.0 18
10234 JZ-500, blue conductors 14G0.75 10.8 101.0 214.0 18
10236 JZ-500, blue conductors 18G0.75 12.2 130.0 257.0 18
10237 JZ-500, blue conductors 20G0.75 12.7 144.0 286.0 18
10238 JZ-500, blue conductors 21G0.75 13.5 151.0 320.0 18
10239 JZ-500, blue conductors 25G0.75 14.5 180.0 365.0 18
10240 JZ-500, blue conductors 32G0.75 16.1 230.0 455.0 18
10241 JZ-500, blue conductors 34G0.75 16.7 245.0 510.0 18
10249 JZ-500, blue conductors 2x1  5.6 19.2 60.0 17
10250 JZ-500, blue conductors 3G1 6.1 29.0 72.0 17
10251 JZ-500, blue conductors 4G1 6.6 38.4 86.0 17
10252 JZ-500, blue conductors 5G1 7.5 48.0 104.0 17
10332 JZ-500, blue conductors 7G1 8.1 67.0 141.0 17
10256 JZ-500, blue conductors 12G1 10.8 115.0 230.0 17
10258 JZ-500, blue conductors 16G1 12.3 154.0 300.0 17
10259 JZ-500, blue conductors 18G1 12.9 173.0 343.0 17
10260 JZ-500, blue conductors 20G1 13.7 192.0 375.0 17
10261 JZ-500, blue conductors 25G1 15.6 240.0 485.0 17
10262 JZ-500, blue conductors 34G1 17.9 326.0 650.0 17
10265 JZ-500, blue conductors 41G1 19.4 394.0 770.0 17
10273 JZ-500, blue conductors 2x1.5  6.4 29.0 70.0 16
10274 JZ-500, blue conductors 3G1.5 6.8 43.0 90.0 16
10275 JZ-500, blue conductors 4G1.5 7.6 58.0 109.0 16
10276 JZ-500, blue conductors 5G1.5 8.3 72.0 131.0 16
10278 JZ-500, blue conductors 7G1.5 9.2 101.0 184.0 16
10279 JZ-500, blue conductors 8G1.5 10.6 115.0 216.0 16
10282 JZ-500, blue conductors 12Gx1.5 12.2 173.0 309.0 16
10283 JZ-500, blue conductors 14G1.5 13.0 202.0 345.0 16
10284 JZ-500, blue conductors 16G1.5 13.9 230.0 386.0 16
10285 JZ-500, blue conductors 18G1.5 14.8 259.0 440.0 16
10286 JZ-500, blue conductors 20G1.5 15.5 288.0 490.0 16
10288 JZ-500, blue conductors 25G1.5 17.8 360.0 620.0 16
10298 JZ-500, blue conductors 2x2.5  7.8 48.0 112.0 14
10299 JZ-500, blue conductors 3G2.5 8.3 72.0 148.0 14
10300 JZ-500, blue conductors 4Gx2.5 9.2 96.0 178.0 14
10301 JZ-500, blue conductors 5G2.5 10.1 120.0 221.0 14
10302 JZ-500, blue conductors 7G2.5 11.2 168.0 306.0 14
10315 JZ-500, blue conductors 3G4  9.7 115.0 230.0 12
10316 JZ-500, blue conductors 4G4 10.8 154.0 295.0 12
10317 JZ-500, blue conductors 5G4 12.1 192.0 361.0 12
10321 JZ-500, blue conductors 3G6  11.9 173.0 355.0 10
10322 JZ-500, blue conductors 4G6 13.0 230.0 424.0 10
10323 JZ-500, blue conductors 5G6 14.7 288.0 525.0 10
10324 JZ-500, blue conductors 7G6 16.2 403.0 625.0 10
Technical Data
  • Control cables, special PVC
  • Requirements adapted to DIN VDE 0245, 0281, 0293, 0295
  • Temperature Range
    Flexing
    -5C to +80C (+23F to +176F)
    Fixed Installation
    -40C to +80C (-40F to +176F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable
    Fixed installation 4x cable
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA CEur VDE
Cable Construction
  • Bare copper, fine wire conductors according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of special PVC Z 7225
  • Conductors blue with continuous white numbering according to DIN VDE 0293 (also available with other conductor colors)
  • Green-yellow ground conductor in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Outer jacket of special PVC, TM2 to DIN VDE 0281 part 1 and HD 21.1
  • Color: gray (RAL 7001)
Application
These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but are not suitable for open air, as measuring and control cables in tool machines, conveyor belts, production lines in machinery production, in air-conditioning and in steel production. The conductors have been numbered in such a way that there is no difficulty in recognizing them, even if only a small piece of the jacketing has been removed. The numbers have been underlined to avoid confusion. The grounding is laid in the outer layer. Selected PVC-compounds guarantee a good flexibility as well as an economic and fast installation.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-2-1, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OZ)
  • Important for assemblers: We supply any "desired length" of stranded conductors withoutouter jacket, conductor insulation color acc. to RAL 5010 with number combination acc. to customers requirement
Cable Accessories
  • Coming Soon!
