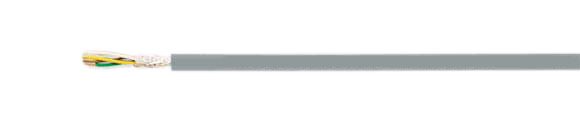

Control Cable: SUPERTRONIC-PVC

High Flexible, Special Cable for Track Cable/Drag Chains

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls,  - SUPERTRONIC-PVC, Special Cable for Drag Chains, High flexible, Control Cable
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
49550 SUPERTRONIC-PVC 2X0.14 3.5 2.8 23.0 26
49551 SUPERTRONIC-PVC 3X0.14 3.6 4.1 25.0 26
49552 SUPERTRONIC-PVC 4X0.14 4.0 5.6 30.0 26
49553 SUPERTRONIC-PVC 5X0.14 4.2 7.0 35.0 26
49554 SUPERTRONIC-PVC 7X0.14 4.8 9.8 49.0 26
49555 SUPERTRONIC-PVC 10X0.14 6.6 14.0 64.0 26
49556 SUPERTRONIC-PVC 12X0.14 6.6 16.8 71.0 26
49557 SUPERTRONIC-PVC 14X0.14 6.4 19.6 77.0 26
49558 SUPERTRONIC-PVC 18X0.14 7.0 25.2 90.0 26
49559 SUPERTRONIC-PVC 24X0.14 8.4 33.6 119.0 26
49560 SUPERTRONIC-PVC 25X0.14 8.7 35.0 124.0 26
49561 SUPERTRONIC-PVC 2X0.25 4.1 5.0 28.0 24
49562 SUPERTRONIC-PVC 3X0.25 4.3 7.5 33.0 24
49563 SUPERTRONIC-PVC 4X0.25 4.8 10.0 39.0 24
49564 SUPERTRONIC-PVC 5X0.25 5.1 12.5 50.0 24
49565 SUPERTRONIC-PVC 7X0.25 5.3 17.5 63.0 24
49566 SUPERTRONIC-PVC 10X0.25 7.6 25.0 83.0 24
49567 SUPERTRONIC-PVC 12X0.25 7.8 30.1 95.0 24
49568 SUPERTRONIC-PVC 14X0.25 8.0 35.0 107.0 24
49569 SUPERTRONIC-PVC 18X0.25 9.0 45.0 130.0 24
49570 SUPERTRONIC-PVC 24X0.25 10.1 60.0 170.0 24
49571 SUPERTRONIC-PVC 25X0.25 10.4 62.5 177.0 24
49572 SUPERTRONIC-PVC 2X0.34 4.6 6.8 33.0 22
49573 SUPERTRONIC-PVC 3X0.34 4.8 10.2 42.0 22
49574 SUPERTRONIC-PVC 4X0.34 5.4 13.6 56.0 22
49575 SUPERTRONIC-PVC 5X0.34 6.6 17.0 64.0 22
49576 SUPERTRONIC-PVC 7X0.34 7.4 23.8 84.0 22
49577 SUPERTRONIC-PVC 10X0.34 8.9 34.0 116.0 22
49578 SUPERTRONIC-PVC 12X0.34 9.0 40.8 133.0 22
49579 SUPERTRONIC-PVC 14X0.34 9.1 47.6 150.0 22
49580 SUPERTRONIC-PVC 18X0.34 10.0 61.2 182.0 22
49581 SUPERTRONIC-PVC 24X0.34 12.1 81.5 240.0 22
49582 SUPERTRONIC-PVC 25X0.34 12.5 85.0 250.0 22
Technical Data
  • Special PVC cable for drag chains, adapted to DIN VDE 0245, 0281
  • Very high flexible due to special construction
  • Temperature Range
    Flexing
    -5C to +70C (+23F to 158F)
    Fixed Installation
    -40C to +70C (+23F to 158F)
    (Short Time +105C/+221F)
  • Nominal Voltage 350 V
  • Test Voltage 1500 V
  • Breakdown Voltage min. 3000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 5x cable
    Fixed Installation 3x cable
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE PCT
Cable Construction
  • Bare copper, extra fine wire conductors to DIN VDE 0295 cl. 6 col. 4 and 5
  • Special PVC conductor insulation TI2 to DIN VDE 0281 part 1
  • Conductors color coded to DIN 47100, see Technical Information
  • Conductors stranded in layers with optimal selected lay-length
  • Conductor wrapping with textile tape
  • Special PVC outer jacket TM2 to DIN VDE 0281 part 1
  • Color: Gray (RAL 7001)
Application

The ideal cable for use in cable trays. This highly flexible cable is ideal for all areas requiring a high and fast flexing cable including the machine industries, robotics and all areas of highly mobile machine parts. The long working life offers a secure performance as well as economy. For applications which go beyond standard solutions (for example for composting appliances for high shelf conveyors with extremely high processing speeds etc.) we recommend our specially developed inquiry sheet for energy guiding systems. Before installing in cable trays, please read the instructions. Further technical details see selection table for drag chain cables.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • Adhesion-free
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
Cable Accessories
  • Coming Soon!
