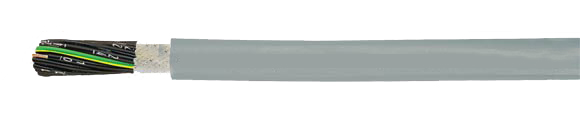

Control Cable: JZ-HF

Flexible, Number Coded, Control Cable for Drag Chains / Track Cable

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls,  - JZ-HF, Number Coded, Flexible, Control Cable for Drag Chain, VDE, Control Cable
AWG Selection
20
20
18
18
17
17
16
16
14
14
12 12 10 10 8 8 6 6
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
15001 OZ-HF 2 X 0.5 Gray 5.0 9.6 46.0 20
15002 JZ-HF 3 G 0.5 Gray

5.3

14.0 57.0 20
15003 JZ-HF 4 G 0.5 Gray 5.7 19.0 70.0 20
15004 JZ-HF 5 G 0.5 Gray 6.4 24.0 93.0 20
15005 JZ-HF 7 G 0.5 Gray 7.5 34.0 127.0 20
15090 OZ-HF 7 X 0.5 Gray 7.5 34.0 127.0 20
15006 JZ-HF 10 G 0.5 Gray 9.1 48.0 161.0 20
15007 JZ-HF 12 G 0.5 Gray 9.2 58.0 177.0 20
15008 JZ-HF 14 G 0.5 Gray 9.8 67.0 213.0 20
15009 JZ-HF 16 G 0.5 Gray 10.3 77.0 260.0 20
15010 JZ-HF 18 G O.5 Gray 11.1 86.0 284.0 20
15011 JZ-HF 20 G 0.5 Gray 11.6 96.0 318.0 20
15012 JZ-HF 25 G 0.5 Gray 13.4 120.0 363.0 20
15013 JZ-HF 30 G 0.5 Gray 13.7 144.0 432.0 20
15014 JZ-HF 34 G 0.5 Gray 15.0 163.0 487.0 20
15015 JZ-HF 36 G 0.5 Gray 15.0 173.0 518.0 20
15016 JZ-HF 42 G 0.5 Gray 16.1 202.0 575.0 20
15017 JZ-HF 50 G 0.5 Gray 17.9 240.0 675.0 20
15018 JZ-HF 61 G 0.5 Gray 19.6 290.0 829.0 20
15019 OZ-HF 2 X 0.75 Gray 5.4 14.4 58.0 18
15020 JZ-HF 3 G 0.75 Gray 5.7 22.0 73.0 18
15021 JZ-HF 4 G 0.75 Gray 6.4 29.0 77.0 18
15022 JZ-HF 5 G 0.75 Gray 7.0 36.0 119.0 18
15023 JZ-HF 7 G 0.75 Gray 8.3 50.0 165.0 18
15024 JZ-HF 10 G 0.75 Gray 10.1 72.0 216.0 18
15025 JZ-HF 12 G 0.75 Gray 10.2 86.0 247.0 18
15026 JZ-HF 14 G 0.75 Gray 10.9 101.0 284.0 18
15027 JZ-HF 16 G 0.75 Gray 11.5 115.0 320.0 18
15028 JZ-HF 18 G 0.75 Gray 12.1 130.0 356.0 18
15029 JZ-HF 20 G 0.75 Gray 12.8 144.0 453.0 18
15030 JZ-HF 25 G 0.75 Gray 14.9 180.0 498.0 18
15031 JZ-HF 30 G 0.75 Gray 15.2 216.0 510.0 18
15032 JZ-HF 34 G 0.75 Gray 16.6 245.0 550.0 18
15033 JZ-HF 36 G 0.75 Gray 16.6 259.0 570.0 18
15034 JZ-HF 42 G 0.75 Gray 18.1 302.0 600.0 18
15035 JZ-HF 50 G 0.75 Gray 20.0 360.0 700.0 18
15036 JZ-HF 61 G 0.75 Gray 23.3 432.0 820.0 18
15091 JZ-HF 65 G 0.75 Gray 24.7 439.0 841.0 18
15037 OZ-HF 2 X 1 Gray 5.7 19.0 65.0 17
15038 JZ-HF 3 G 1 Gray 6.0 29.0 84.0 17
15039 JZ-HF 4 G 1 Gray 6.8 38.0 113.0 17
15040 JZ-HF 5 G 1 Gray 7.4 48.0 137.0 17
15041 JZ-HF 7 G 1 Gray 8.8 67.0 192.0 17
15042 JZ-HF 10 G 1 Gray 10.7 96.0 251.0 17
15043 JZ-HF 12 G 1 Gray 10.8 115.0 295.0 17
15044 JZ-HF 14 G 1 Gray 11.6 134.0 337.0 17
15045 JZ-HF 16 G 1 Gray 12.2 154.0 379.0 17
15046 JZ-HF 18 G 1 Gray 13.0 173.0 420.0 17
15047 JZ-HF 20 G 1 Gray 13.6 192.0 480.0 17
15048 JZ-HF 25 G 1 Gray 15.8 240.0 600.0 17
15049 JZ-HF 30 G 1 Gray 16.4 288.0 695.0 17
15050 JZ-HF 34 G 1 Gray 17.8 326.0 777.0 17
15051 JZ-HF 36 G 1 Gray 17.8 346.0 825.0 17
15052 JZ-HF 41 G 1 Gray 19.3 403.0 926.0 17
15214 JZ-HF 42 G 1 Gray 19.3 403.0 948.0 17
15053 JZ-HF 50 G 1 Gray 21.2 480.0 1092.0 17
15092 JZ-HF 61 G 1 Gray 23.2 586.0 1204.0 17
15054 JZ-HF 65 G 1 Gray 23.7 624.0 1400.0 17
15055 OZ-HF 2 X 1.5 Gray 6.4 29.0 91.0 16
15056 JZ-HF 3 G 1.5 Gray 6.8 43.0 117.0 16
15057 JZ-HF 4 G 1.5 Gray 7.4 58.0 147.0 16
15058 JZ-HF 5 G 1.5 Gray 8.3 72.0 181.0 16
15059 JZ-HF 7 G 1.5 Gray 9.9 101.0 273.0 16
15060 JZ-HF 10 G 1.5 Gray 11.9 144.0 344.0 16
15061 JZ-HF 12 G 1.5 Gray 12.1 173.0 391.0 16
15062 JZ-HF 14 G 1.5 Gray 12.9 202.0 457.0 16
15063 JZ-HF 16 G 1.5 Gray 13.6 230.0 523.0 16
15064 JZ-HF 18 G 1.5 Gray 14.5 259.0 590.0 16
15065 JZ-HF 20 G 1.5 Gray 15.2 288.0 650.0 16
15066 JZ-HF 25 G 1.5 Gray 17.8 360.0 801.0 16
15067 JZ-HF 30 G 1.5 Gray 18.2 432.0 958.0 16
15068 JZ-HF 34 G 1.5 Gray 19.7 490.0 1084.0 16
15069 JZ-HF 36 G 1.5 Gray 19.7 518.0 1135.0 16
15070 JZ-HF 42 G 1.5 Gray 21.5 605.0 1290.0 16
15071 JZ-HF 50 G 1.5 Gray 23.7 720.0 1521.0 16
15072 JZ-HF 60 G 1.5 Gray 25.3 864.0 1885.0 16
15215 JZ-HF 61 G 1.5 Gray 26.2 878.0 1916.0 16
15216 JZ-HF 65 G 1.5 Gray 27.6 936.0 1994.0 16
15073 OZ-HF 2 X 2.5 Gray 7.7 43.0 130.0 14
15074 JZ-HF 3 G 2.5 Gray 8.4 72.0 160.0 14
15075 JZ-HF 4 G 2.5 Gray 9.1 96.0 200.0 14
15076 JZ-HF 5 G 2.5 Gray 10.2 120.0 268.0 14
15077 JZ-HF 7 G 2.5 Gray 12.2 168.0 357.0 14
15078 JZ-HF 10 G 2.5 Gray 15.0 240.0 486.0 14
15079 JZ-HF 12 G 2.5 Gray 15.2 288.0 572.0 14
15080 JZ-HF 14 G 2.5 Gray 16.1 336.0 612.0 14
15081 JZ-HF 16 G 2.5 Gray 17.2 384.0 702.0 14
15082 JZ-HF 18 G 2.5 Gray 18.1 432.0 800.0 14
15083 JZ-HF 20 G 2.5 Gray 19.2 480.0 920.0 14
15084 JZ-HF 25 G 2.5 Gray 22.5 600.0 1100.0 14
15085 JZ-HF 30 G 2.5 Gray 23.5 720.0 1400.0 14
15086 JZ-HF 34 G 2.5 Gray 25.2 816.0 1500.0 14
15087 JZ-HF 36 G 2.5 Gray 25.2 864.0 1600.0 14
15088 JZ-HF 42 G 2.5 Gray 27.4 1008.0 1800.0 14
15089 JZ-HF 50 G 2.5 Gray 30.0 1200.0 2100.0 14
15142 JZ-HF 3 G 4 Gray 10.4 115.0 221.0 12
15143 JZ-HF 4 G 4 Gray 11.4 154.0 260.0 12
15144 JZ-HF 5 G 4 Gray 12.7 192.0 318.0 12
15145 JZ-HF 4 G 6 Gray 13.3 230.0 392.0 10
15146 JZ-HF 5 G 6 Gray 14.5 288.0 481.0 10
15147 JZ-HF 4 G 10 Gray 17.7 384.0 642.0 8
15148 JZ-HF 5 G 10 Gray 19.7 480.0 780.0 8
15149 JZ-HF 4 G 16 Gray 19.8 614.0 926.0 6
15150 JZ-HF 5 G 16 Gray 22.3 768.0 1135.0 6
Technical Data
  • Special PVC control cable, extreme flexibility due to special construction
  • Requirements adapted to DIN VDE 0281 part 13
  • Temperature Range
    Flexing
    -5C to +80C (+23F to 176F)
    Fixed Installation
    -40C to +80C (-40F to 176F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable
    Fixed Installation 4x cable
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE ipa pct
Cable Construction
  • Bare copper, extra fine wire conductors to DIN VDE 0295 cl. 6 col. 4, BS 6360 cl. 6 and IEC 60228 cl. 6
  • Conductor insulation of special PVC Z 7225
  • Black conductors with continuous white figure imprint to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal selected lay-length
  • Conductor wrapping with fleece
  • Special PVC outer jacket, TM2 to DIN VDE 0281 part 1 and HD 21.1
  • Color: Gray (RAL 7001)
Application

JZ-HF cables are ideal for use in the machine tool industry, in robotics and machine production and anywhere where high flexibility is essential.
These cables have shown excellent performance in combination with standard cable trays.
These cables are suitable for flexible use for medium mechanical stresses with free movements.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installalling in cable trays, please read the instructions. Further technical details, see selection table for drag chain cables.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
  • Clean room qualification tested with analog type. Please note "clean room qualified" when ordering.
  • Shielded Type: JZ-HF-CY
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
