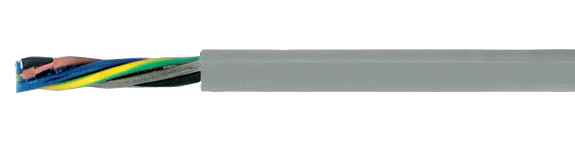

Control Cable: JB-750

Flexible, Color Coded Conductors, 750 V

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls,  - JB-750, Color Coded, Flexible, 750V, RoHS Compliant, Special PVC Control Cable
AWG Selection
14
14
12
12
10
10
8
8
6
6
4
4
2
2
1
1
2/0
2/0
3/0
3/0
4/0
4/0
300 kcmil
300
350
350

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
11161 JB-750 2x2.5  8.8 48.0 130.0 14
11162 JB-750 3G2.5 9.3 72.0 164.0 14
11163 JB-750 3x2.5 9.3 72.0 164.0 14
11164 JB-750 4G2.5 10.2 96.0 200.0 14
11165 JB-750 4x2.5 10.2 96.0 200.0 14
11166 JB-750 5G2.5 11.4 120.0 247.0 14
11167 JB-750 5x2.5 11.4 120.0 247.0 14
11168 JB-750 6G2.5 12.6 144.0 301.0 14
11169 JB-750 7G2.5 12.6 168.0 321.0 14
11121 JB-750 2x4  10.7 76.8 195.0 12
11144 JB-750 3G4 11.3 115.0 235.0 12
11122 JB-750 4G4 12.6 154.0 295.0 12
11123 JB-750 5G4 14.1 192.0 361.0 12
11124 JB-750 7G4 15.6 269.0 498.0 12
11125 JB-750 11G4 20.8 422.0 767.0 12
11126 JB-750 3G6  12.7 173.0 355.0 10
11127 JB-750 4G6 14.1 230.0 424.0 10
11128 JB-750 5G6 15.8 288.0 525.0 10
11129 JB-750 7G6 17.6 403.0 625.0 10
11153 JB-750 3G10  16.1 290.0 611.0 8
11130 JB-750 4G10 17.9 384.0 701.0 8
11131 JB-750 5G10 19.9 480.0 858.0 8
11132 JB-750 7G10 22.2 672.0 1106.0 8
11154 JB-750 3G16  19.7 461.0 912.0 6
11133 JB-750 4G16 21.7 614.0 1035.0 6
11134 JB-750 5G16 24.4 768.0 1259.0 6
11135 JB-750 7G16 26.8 1075.0 1780.0 6
11155 JB-750 3G25  24.4 720.0 1388.0 4
11136 JB-750 4G25 26.8 960.0 1581.0 4
11137 JB-750 5G25 29.9 1200.0 1997.0 4
11156 JB-750 3G35  26.5 1080.0 1767.0 2
11138 JB-750 4G35 29.4 1344.0 2105.0 2
11139 JB-750 5G35 32.7 1680.0 2636.0 2
11157 JB-750 3G50  31.8 1440.0 2556.0 1
11140 JB-750 4G50 35.0 1920.0 2940.0 1
11145 JB-750 5G50 39.2 2400.0 3936.0 1
11158 JB-750 3G70  36.1 2016.0 3182.0 2/0
11141 JB-750 4G70 39.9 2688.0 4090.0 2/0
11146 JB-750 5G70 44.9 3360.0 5443.0 2/0
11159 JB-750 3G95  40.9 2736.0 4676.0 3/0
11142 JB-750 4G95 45.4 3648.0 5540.0 3/0
11147 JB-750 5G95 50.7 4560.0 6931.0 3/0
11160 JB-750 3G120  46.2 3456.0 5630.0 4/0
11143 JB-750 4G120 51.6 4608.0 7000.0 4/0
11148 JB-750 4G150  58.5 5760.0 8340.0 300 kcmil
11149 JB-750 4G185  61.1 7104.0 9904.0 350 kcmil
Technical Data
  • Special PVC control cables
  • Requirements adapted to DIN VDE 0281, 0293, 0295, and IEC 60227-5
  • To H05VV-F VDE 0281 part 5 and IEC 60227-5 Type 60227 IEC 57
  • Temperature Range
    Flexing
    -5C to +80C (+23F to +176F)
    Fixed Installation
    -40C to +80C (-40F ti +176F)
  • Nominal Voltage U0/U 450/750 V
  • Fixed installation, under protection
    U0/U 600/1000 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable
    Fixed Installation 4x cable
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE IPA
Cable Construction
  • Bare copper, fine wire conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductors color coded as per JB/OB color code
  • Green-yellow ground conductor in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special PVC outer jacket T12, to DIN VDE 0281 part 1
  • Color: grey (RAL 7001)
Application
These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, as measuring and control cables in tool machinery, conveyor belts, production lines, as well as in machinery production, in air-conditioning and steel production plants. The grounding is located immediately below the outer jacket. JB cables are suitable for use in all electrical equipment either in dry or damp areas. They should not, however, be installed in the open air.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OB)
  • Clean room qualification tested with analog type. Please note "clean room qualified" when ordering.
Cable Accessories
  • Coming Soon!
