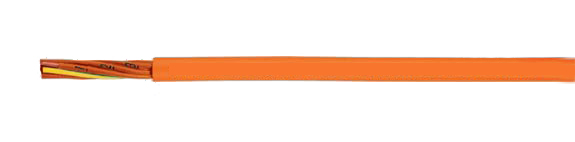

Control Cable: JZ-500

Flexible, Orange Conductors, Control Cable for Interlocking Purposes

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls,  - JZ-500 Orange, Flexible, Orange conductors, Control Cable for Interlocking purposes, JZ-500, Control Cable

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
10537 JZ-500 orange 2x1 5.6 19.2 60.0 17
10538 JZ-500 orange 3G1 5.9 29.0 72.0 17
10539 JZ-500 orange 3x1 5.9 29.0 72.0 17
10540 JZ-500 orange 4G1 6.6 38.4 86.0 17
10541 JZ-500 orange 4x1 6.6 38.4 86.0 17
10542 JZ-500 orange 5G1 7.3 48.0 104.0 17
10544 JZ-500 orange 2x1.5 6.4 29.0 70.0 16
10545 JZ-500 orange 3G1.5 6.8 43.0 90.0 16
10546 JZ-500 orange 4G1.5 7.4 58.0 109.0 16
10547 JZ-500 orange 5G1.5 8.3 72.0 131.0 16
10747 JZ-500 orange 3G2.5 8.3 72.0 148.0 14
10748 JZ-500 orange 4G2.5 9.2 96.0 178.0 14
10749 JZ-500 orange 5G2.5 10.1 120.0 221.0 14
Technical Data
  • Special PVC control cable for interlocking purposes
  • Requirements adapted to DIN VDE 0245, 0281, 0293, 0295
  • Temperature Range
    Flexing
    -5C to +80C (+23F to +176F)
    Fixed installation
    -40C to +80C (-40F to +176F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable
    Fixed Installation 4x cable
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE PCT
Cable Construction
  • Bare copper, fine wire conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of special PVC Z 7225
  • Orange conductors with continuous black numbering according to DIN VDE 0293
    JZ-version with green-yellow ground conductor (3 conductors and above)
    OZ-version without green-yellow grounding
  • Special PVC outer jacket TM2, to DIN VDE 0281 part 1 and HD 21.1
  • Color: orange (RAL 2003)
Application
These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, as control cable according EN 60204 part 1 and VDE 0113 part 1.
As per recommendation of the specified standards the insulated conductors of control current circuits should be colored orange, when they are used for interlocking purposes. These control circuits are supplied with an external power and remain active under current when the main switch is disconnected or switched off.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Extensively oil resistant
  • For Chemical Resistance, see table Technical Information
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground conductor
    x = without green-yellow grounding (OZ)
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm.
