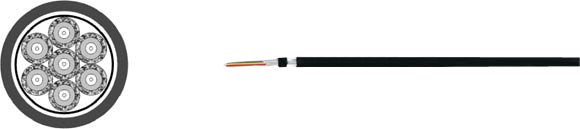

Data, Network & BUS Cable: Fiber Optic Indoor / Outdoor Cable

Acc. to DIN VDE 0888 A/I-VQ(ZN)BH

Hi-Tech Controls, Inc, European wires and cables

Fiber Optic Indoor/Outdoor Cable, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No. of Fibers/ Cond. Outer Ø(mm) Max.
Tensile Force
Min. Stat. Bending Radius Caloric Load MJ/m Transverse Pressure N/cm (max.) Weight kg/km
No. Type
82804  A/I-VQ(ZN)BH 4 Multi-Mode G50/125 1 6.1 2000 90.0 0.35 40 40.0
82809  A/I-VQ(ZN)BH 4 Multi-Mode G62.5/125 1 6.1 2000 90.0 0.35 40 40.0
82814  A/I-VQ(ZN)BH 4 Single-Mode E9/125 1 6.1 2000 90.0 0.35 40 40.0
82805  A/I-VQ(ZN)BH 6 Multi-Mode G50/125 1 6.6 2000 100.0 0.41 40 47.0
82810  A/I-VQ(ZN)BH 6 Multi-Mode G62.5/125 1 6.6 2000 100.0 0.41 40 47.0
82815  A/I-VQ(ZN)BH 6 Single-Mode E9/125 1 6.6 2000 100.0 0.41 40 47.0
82806  A/I-VQ(ZN)BH 8 Multi-Mode G50/125 1 6.6 2000 100.0 0.43 40 51.0
82811  A/I-VQ(ZN)BH 8 Multi-Mode G62.5/125 1 6.6 2000 100.0 0.43 40 51.0
82816  A/I-VQ(ZN)BH 8 Single-Mode E9/125 1 6.6 2000 100.0 0.43 40 51.0
82807  A/I-VQ(ZN)BH 10 Multi-Mode G50/125 1 8.0 2000 120.0 0.61 40 65.0
82812  A/I-VQ(ZN)BH 10 Multi-Mode G62.5/125 1 8.0 2000 120.0 0.61 40 65.0
82817  A/I-VQ(ZN)BH 10 Single-Mode E9/125 1 8.0 2000 120.0 0.61 40 65.0
82808  A/I-VQ(ZN)BH 12 Multi-Mode G50/125 1 8.3 3000 125.0 0.71 40 70.0
82813  A/I-VQ(ZN)BH 12 Multi-Mode G62.5/125 1 8.3 3000 125.0 0.71 40 70.0
82818  A/I-VQ(ZN)BH 12 Single-Mode E9/125 1 8.3 3000 125.0 0.71 40 70.0
Technical Data
  • Corrosiveness acc. to EN 50267-2-3
  • Halogen-free acc. to 60754-2
  • Flame-resistance acc. to IEC 60332-1
  • Smoke Density acc. to IEC 61034
  • UV-resistant
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Composite Buffered
Strain Relief Elements: Aramide
Type of Armoring: Glass Yarns
Outer Jacket Material: FRNC
Outer Jacket Color: Black
Laying, min.: -5°C/+23°F
Laying, max: +50°C/+122°F
Operating, min.: -20°C/+68°F
Operating, max.: +55°C/+131°F
Application
These ® fiber-optic cables are available either as central bundle conductor cable or as stranded versions. They are suitable for indoor cabling of buildings and facilities. The halogen-free version is especially suitable for the application in skyscrapers, hospitals and stores as well as in facilities with high concentration of capital goods, such as power plants, computing centers, and at locations with high security requirements, such as underground and control stations.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
