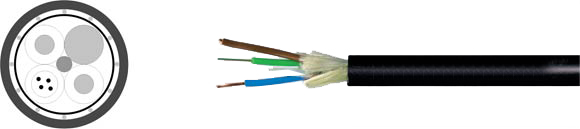

Data, Network & BUS Cable: Fiber Optic Outdoor Cable Hybrid (with Voltage Conductors)

Acc. to DIN VDE 0888 A-DSQ(ZN)B2Y

Hi-Tech Controls, Inc, European wires and cables

Fiber Optic Outdoor Cable Hybrid, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part-No. Description Fibers No. of Copper Cond. Dim. of Copper Cond. Outer Ø ca. (mm) Max. Tensile Force N Min. Stat. Bending Radius (mm) Caloric Load ca. MJ/m Max. Transverse Pressure N/cm Weight kg/km
No. Type
81209  A-DSQ(ZN)B2Y 4 Multi-Mode G50/125 2 1.2 12.0 2100 300.0 4.80 200 140.0
81255  A-DSQ(ZN)B2Y 4 Multi-Mode G62.5/125 2 1.2 12.0 2100 300.0 4.80 200 140.0
81256  A-DSQ(ZN)B2Y 4 Single-Mode E9/125 2 1.2 12.0 2100 300.0 4.80 200 140.0
82561  A-DSQ(ZN)B2Y 4 Multi-Mode G50/125 2 1.5 12.5 2300 320 4.80 200 160.0
81257  A-DSQ(ZN)B2Y 4 Multi-Mode G62.5/125 2 1.5 12.5 2300 320 4.80 200 160.0
81258  A-DSQ(ZN)B2Y 4 Single-Mode E9/125 2 1.5 12.5 2300 320 4.80 200 160.0
82786  A-DSQ(ZN)B2Y 4 Multi-Mode G50/125 4 1.5 17.0 2600 430 4.80 200 250.0
81259  A-DSQ(ZN)B2Y 4 Multi-Mode G62.5/125 4 1.5 17.0 2600 430 5.80 200 250.0
81260  A-DSQ(ZN)B2Y 4 Single-Mode E9/125 4 1.5 17.0 2600 430 5.80 200 250.0
Technical Data
  • Corrosiveness acc. to EN 50267-2-3
  • Longitudinally water tight acc. to IEC 60794-1-2-F5
  • UV-resistant
Fiber Specifications
PDF Printable PDF

Granded Index Fibers (Multi-Mode)
Specification Fiber Type G 50/125 Fiber Type G 62.5/125
Fiber Category OM2 Standard Fiber OM1 Standard Fiber
Conductor Diameter 50 ± 3 µm 62.5 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.275 ± 0.015
Typical Attenuation 850 nm 2.8 dB/km 3.0 dB/km
1300 nm 0.7 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 500 MHz x km 200 MHz x km
1300 nm 800 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Conductor Non-circularity < 5%
Cladding Concentricity Error < 3.0 µm
Cladding Non-circularity < 2%

Specification Fiber Type G 50/125
Fiber Category OM3 Standard Fiber OM4 Standardfibre
Conductor Diameter 50 ± 3 µm 50 ± 3 µm
Numerical Aperture 0.200 ± 0.015 0.200 ± 0.015
Typical Attenuation 850 nm 2.5 dB/km 3.0 dB/km
1300 nm 0.5 dB/km 1.0 dB/km
Minimum Bandwidth 850 nm 1500 MHz x km 3500 MHz x km
1300 nm 500 MHz x km 500 MHz x km
Cladding Diameter 125 ± 1.0 µm 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm 245 ± 10 µm
Conductor Non-circularity < 5% < 5%
Cladding Concentricity Error < 3.0 µm < 6.0 µm
Cladding Non-circularity < 2% < 2%

Single-Mode Fiber
Specification Fiber Type E9...10/125 (single mode)
Fiber Category ITU-T G. 652
Attenuation 1300 nm 0.36 dB/km
1550 nm 0.22 dB/km
Dispersion 1285 - 1330 nm < 3.5 ps (nm x km)
1550 nm < 19 ps (nm x km)
Wave Length 1312 nm
Mode Field Diameter at 1310 nm 9.3 ± 0.5 µm
Cladding Diameter 125 ± 1.0 µm
Primary Coating Diameter 245 ± 10 µm
Cut-off Wave Length < 1250 nm
Cladding Concentricity Error ≤ 0.8 µm
Cladding Non-circularity < 1.0%

POF and HCS Fiber
Specification Fiber Type POF P980/1000 Fiber Type HCS K200/230
Conductor Diameter 980 µm 200 µm
Numerical Aperture 0.5 0.37
Typical Attenuation 650 nm 160 dB/km 10 dB/km
850 nm - 8 dB/km
Minimum Bandwidth 650 nm 10 MHz x 100 m 17 MHz x km
850 nm - 20 MHz x km
Wall Thickness 1000 µm 230 µm
Approvals
RoHS
Cable Construction Temperature Range
Conductor Type: Buffered Fiber
GPR Support Element
Number of Fibers per Conductor: 4
Strain Relief Elements: Aramide
Type of Armoring: Glass Yarns
Outer Jacket Material: PE
Outer Jacket Color: Black
Laying, min.: -10°C/+14°F
Laying, max: +60°C/+140°F
Operating, min.: -25°C/-13°F
Operating, max.: +60°C/+140°F
Application
These ® fiber-optic cables are designed especially for use in fiber-optical temperature measurements, such as monitoring of dams. The extreme mechanical requirements in these areas are fulfilled by the specially designed cable construction. These lines are hybrid glass fiber lines with copper conductors and a special PE outer jacket.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
